DEVELOPMENT BOARDESP ESP32 Development Board | Doit DevKit V1 | powerful Wroom32 module
ESP32 Development Board | Doit DevKit V1 | powerful Wroom32 module
ESP32 Development Board | Doit DevKit V1 | powerful Wroom32 module
ESP32 Development Board | Doit DevKit V1 | powerful Wroom32 module
ESP32 Development Board | Doit DevKit V1 | powerful Wroom32 module
ESP32 Development Board | Doit DevKit V1 | powerful Wroom32 module
ESP32 Development Board | Doit DevKit V1 | powerful Wroom32 module
ESP32 Development Board | Doit DevKit V1 | powerful Wroom32 module

ESP32 Development Board | Doit DevKit V1 | powerful Wroom32 module

Specifications:

  • Processor: ESP32-WROOM32 dual-core LX6 @ 240 MHz

  • Flash Memory: 4 MB SPI

  • Operating Voltage: 5 V USB input → 3.3 V regulated output

  • USB Interface: Micro-USB onboard for power and programming

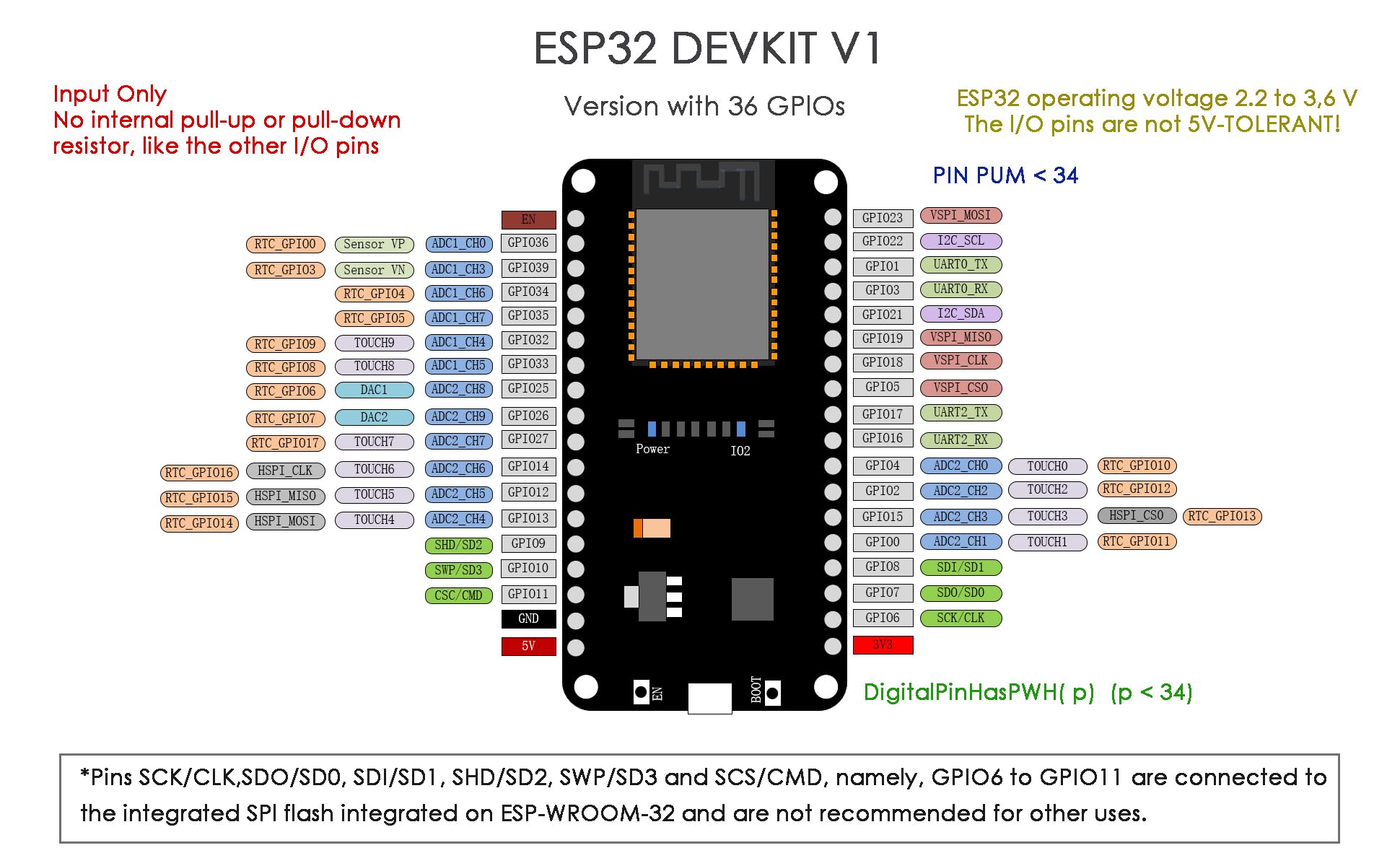

  • I/O Pins: Approx. 30 GPIO including ADC, DAC, UART, SPI, I²C, PWM

  • Dimensions: ~68 mm × 25 mm

  • Operating Temperature: –40 °C to +85 °C

Non-returnable
₹345.00 ₹499.00
Product Details

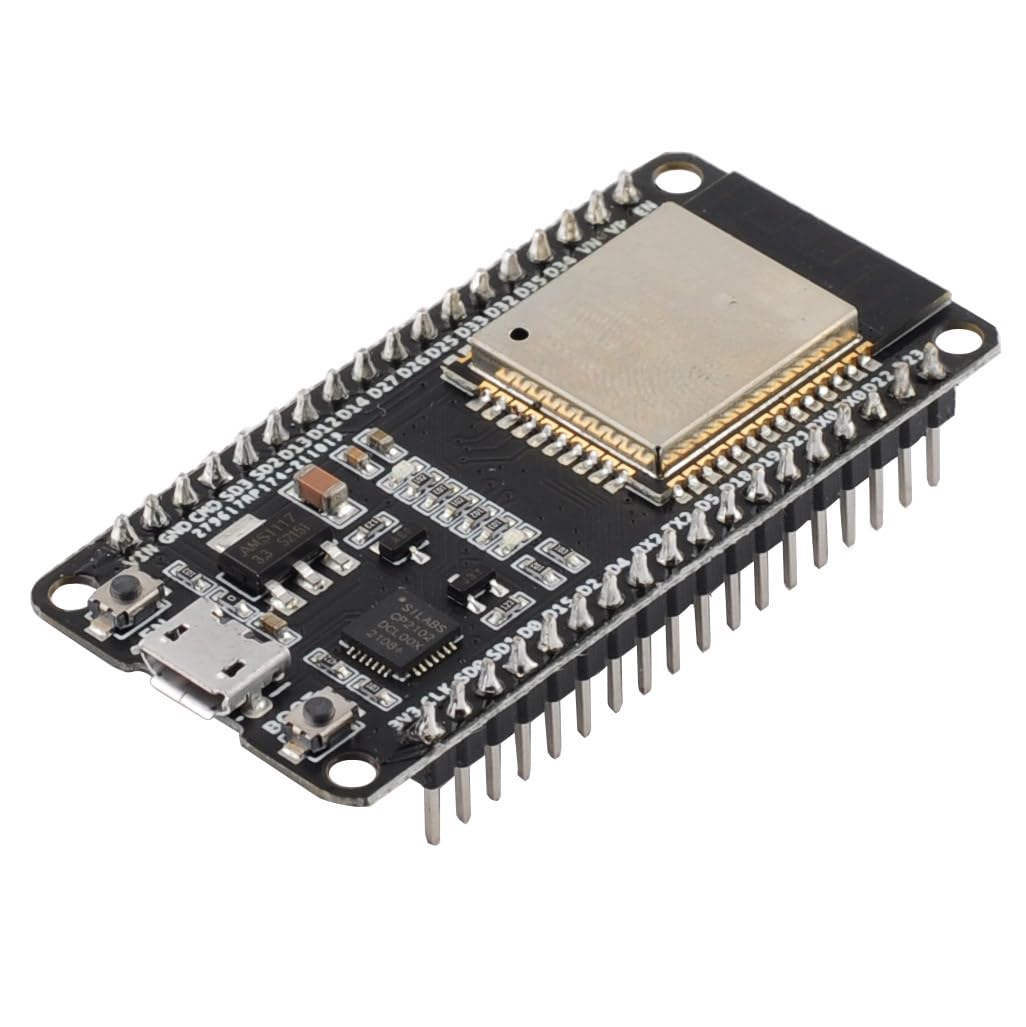

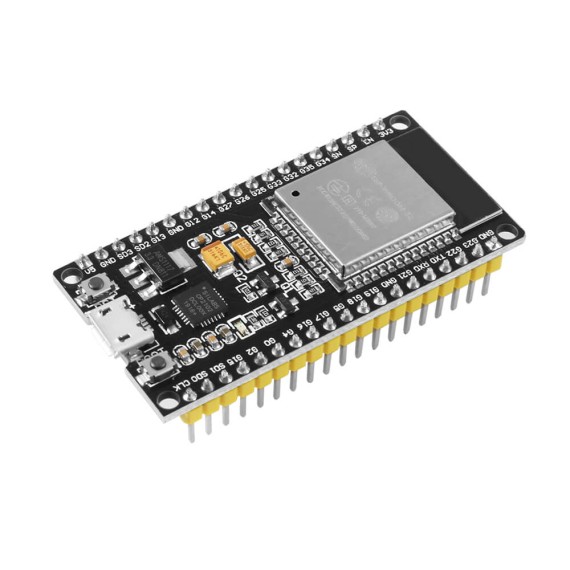

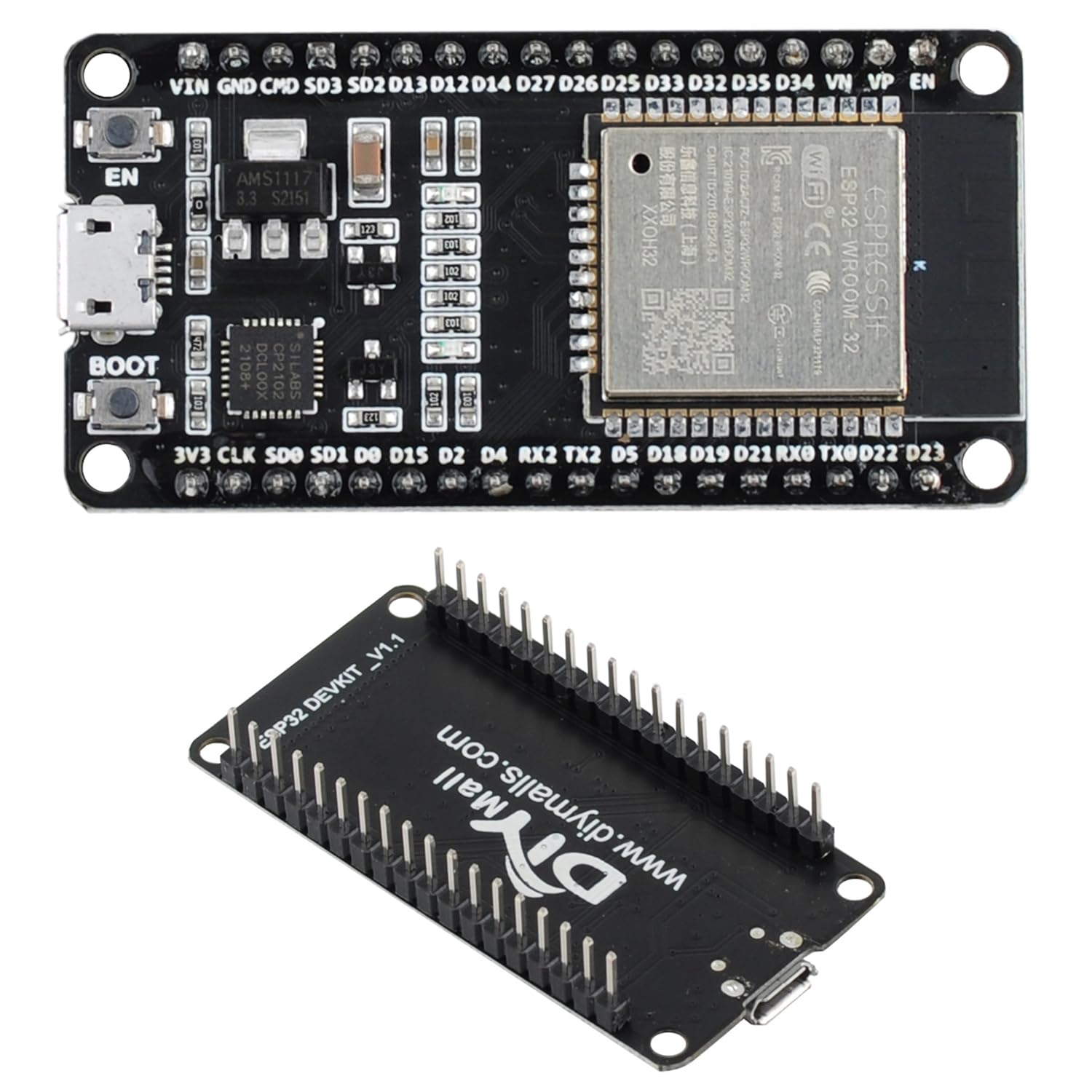

The ESP32 DevKit V1 is a versatile development board built around the ESP32-WROOM32 dual-core Wi‑Fi + Bluetooth module. Featuring onboard USB-to-UART conversion and power regulation, it provides a plug-and-play platform for IoT prototyping, firmware development, and hobbyist applications. It supports Arduino, ESP-IDF, MicroPython, and more.


Features:

  • Dual-core Xtensa LX6 processor up to 240 MHz

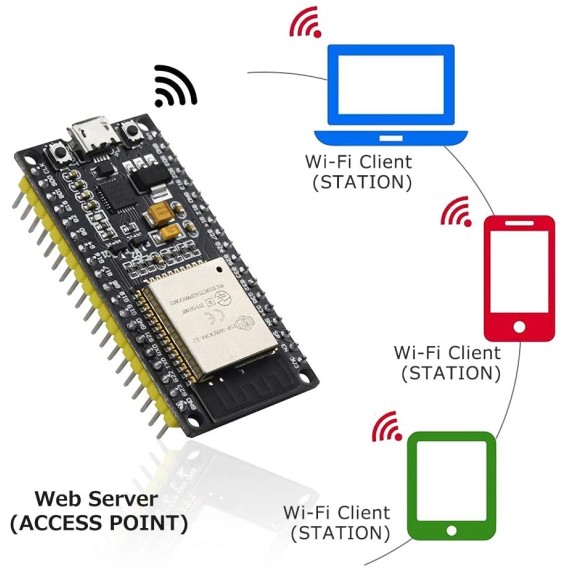

  • Integrated Wi‑Fi (802.11b/g/n) and Bluetooth 4.2 (BLE & Classic)

  • Onboard USB-to-UART bridge (CH340/CP2102) for easy flashing

  • 5V to 3.3V regulator, power LED indicator

  • Plenty of GPIO pins exposed (≈30), including ADC, PWM, SPI, I²C, UART

  • Programmable via USB using Arduino or ESP-IDF

  • Compact, breadboard-friendly design
