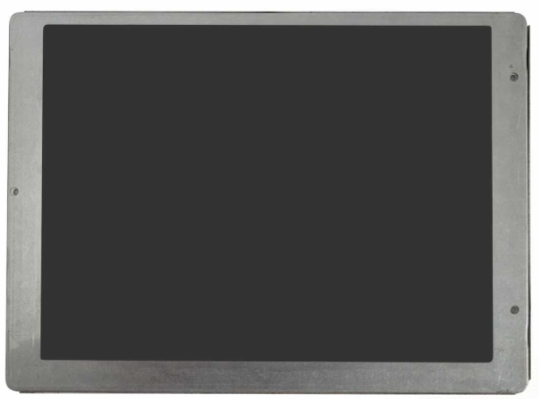

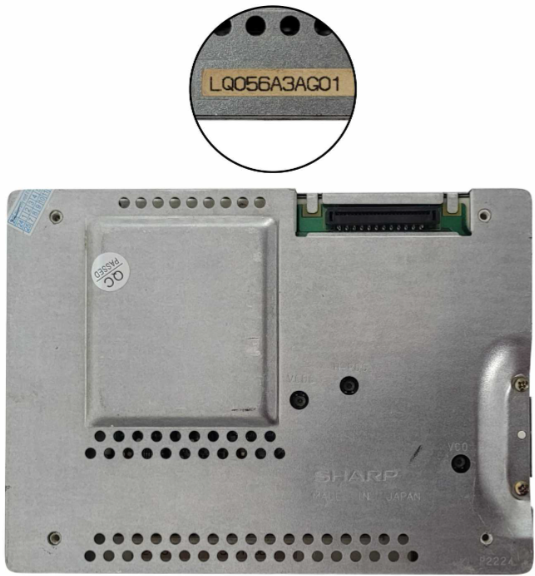

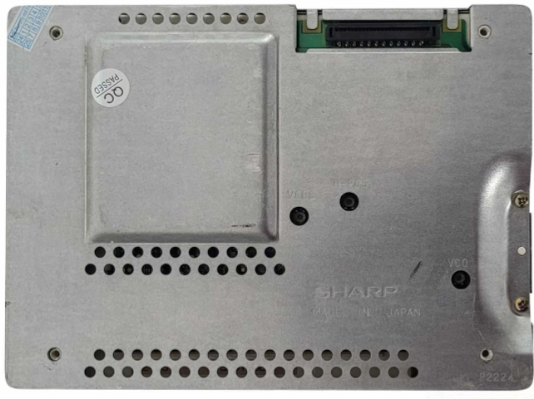

Sharp LQ056A3AG01 LCD display

The Sharp LQ056A3AG01 LCD Module is a 5.6-inch a-Si TFT-LCD display designed for gaming and multimedia applications. With a 320(RGB)×234 resolution and a 71 PPI pixel format, this compact display ensures clear visuals and reliable performance.

Its 250 cd/m² brightness and 60:1 contrast ratio deliver consistent image quality, while the CCFL backlight (rated for 25,000 hours) provides stable illumination. Featuring a 6 o’clock viewing direction, TN mode, and a full-color display, it offers vivid visuals even from a lower angle.

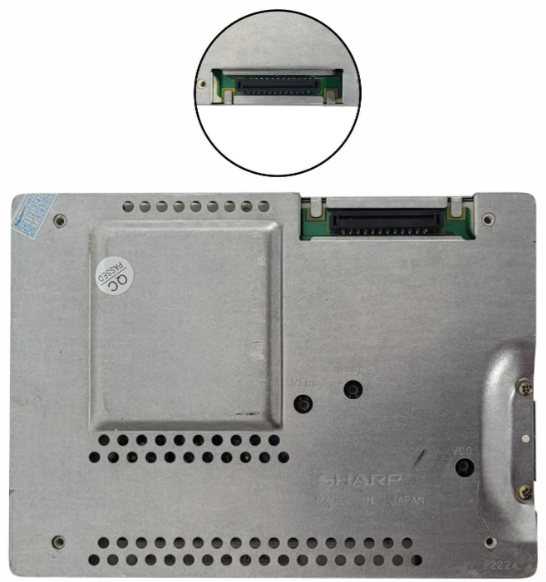

The Analog RGB + Composite Video interface (24-pin) ensures seamless connectivity for various embedded or custom video applications.

With an operating temperature range of 0 ~ 65°C and a robust design, the Sharp LQ056A3AG01 is a reliable choice for gaming displays and specialized visual systems.
