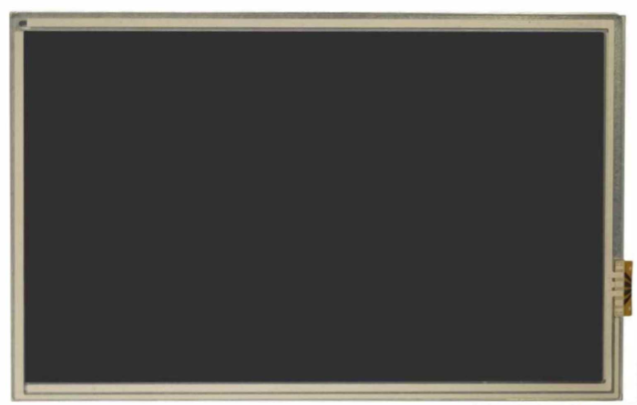

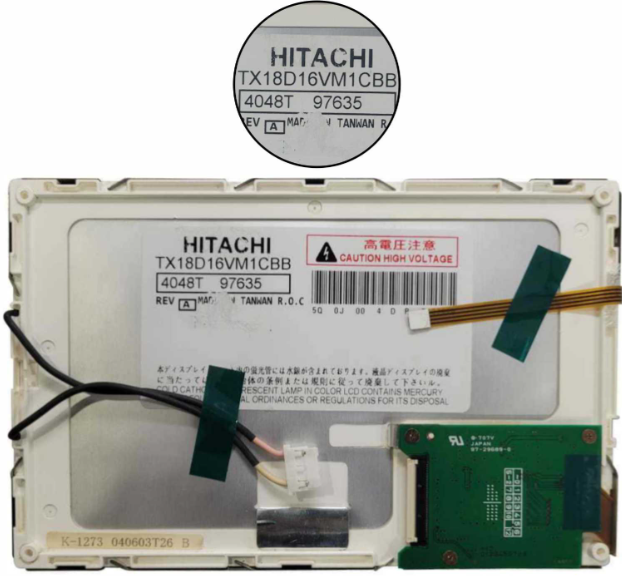

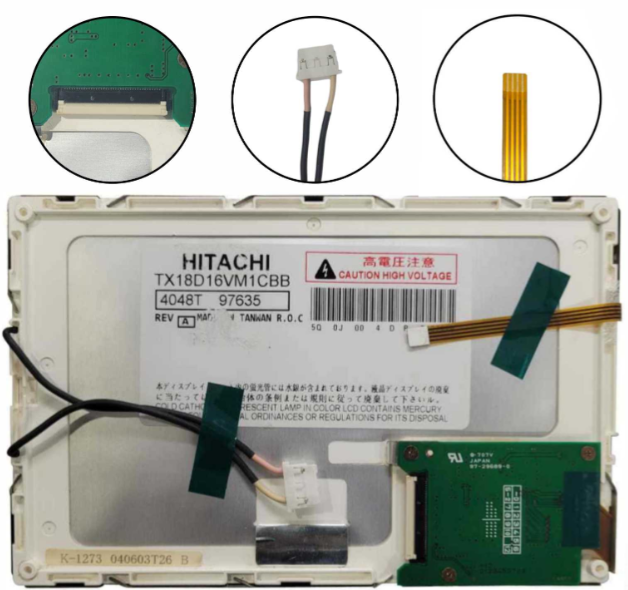

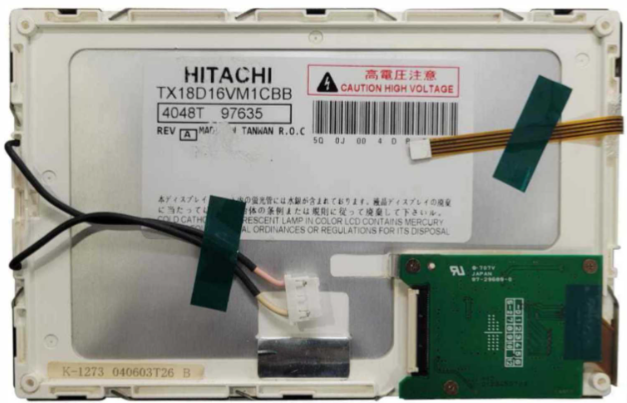

The Hitachi TX18D16VM1CBB is a high-performance 18.0-inch industrial-grade TFT LCD module that integrates a 4-wire resistive touchscreen, designed for demanding embedded and automation applications. With WXGA resolution (1280×768 pixels), the module delivers sharp, vivid images and is engineered for excellent readability, durability, and usability in industrial and medical environments.
Mechanical Specifications:
Module Dimensions: Approx. 430 mm (W) × 260 mm (H) × ~15 mm (D)
Active Area: 376.32 mm (H) × 226.98 mm (V)
Weight: ~1.1–1.5 kg (including touch layer and backlight assembly)
Mounting: Rear-mount or panel-mount ready (via bezel or bracket)
Environmental & Electrical Characteristics:
Operating Temperature Range: –20 °C to +70 °C
Storage Temperature Range: –30 °C to +80 °C
Supply Voltage: Typically 3.3 V logic (for LCD), with separate 12 V or 5 V for LED backlight driver
Power Consumption: Typically 8–12 W (depends on brightness and backlight driver)
Touchscreen Durability: >1 million actuations; scratch-resistant PET top film
Applications:
Industrial HMI systems
Medical imaging equipment
Laboratory instrumentation
Embedded control panels
Kiosks and operator terminals
Rugged field and automation devices
Benefits:
High brightness and wide angles make it ideal for indoor/outdoor industrial visibility
Rugged touchscreen supports gloved or stylus input
Long-life LED backlight ensures low maintenance
Compact, panel-ready construction speeds integration
