      DEVELOPMENT BOARDBANANA PI Banana Pi BPI-M4 Zero
      Banana Pi BPI-M4 Zero
      Banana Pi BPI-M4 Zero
      Banana Pi BPI-M4 Zero
      Banana Pi BPI-M4 Zero
      Banana Pi BPI-M4 Zero

      Banana Pi BPI-M4 Zero

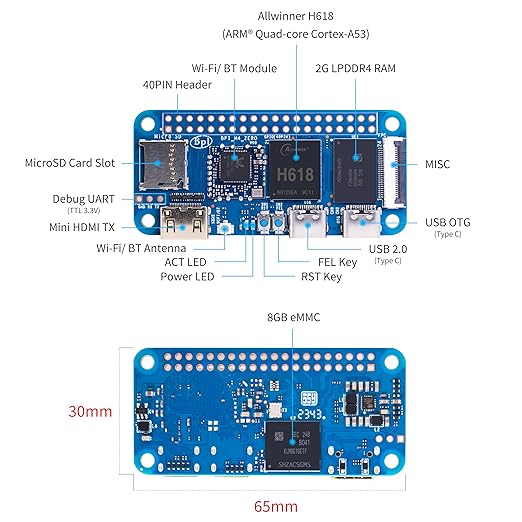

      Specifications:
      1. CPU: Allwinner H618, Quad-Core ARM Cortex-A53 @ up to 1.5GHz
      2. GPU: ARM Mali-G31 MP2
      3. Memory: 1GB or 2GB LPDDR4 (depending on version)
      4. Storage: microSD slot, optional onboard eMMC (up to 8GB)
      5. Connectivity:
        • Wi-Fi 5 (Dual-band 2.4GHz/5GHz)
        • Bluetooth 5.0
      6. Video Output: Mini HDMI (up to 4K@60fps)
      7. USB Ports: 1x USB 2.0 Host, 1x USB 2.0 OTG
      8. GPIO: 40-pin header (compatible with Raspberry Pi accessories)
      9. Camera Interface: CSI via onboard FPC connector
      10. Power Supply: 5V/2A via USB-C or GPIO
      11. Dimensions: ~ 65mm x 30mm
      12. Operating System Support: Debian, Ubuntu, Android (community support)

      Non-returnable
      ₹4,500.00 ₹5,000.00
      Product Details

      The Banana Pi BPI-M4 Zero is a compact single-board computer (SBC) designed to deliver powerful processing and connectivity in a Raspberry Pi Zero-like form factor. Powered by the Allwinner H618 quad-core ARM Cortex-A53 processor, it supports 4K video output, Wi-Fi 5 (802.11ac), Bluetooth 5.0, and has a rich set of I/O interfaces. This board is ideal for IoT applications, smart devices, home automation, lightweight Linux servers, and more.

      Its small size, powerful multimedia capabilities, and low power consumption make it an excellent choice for embedded and headless applications where space and performance are both crucial.

      Key Features:
      • Allwinner H618 Quad-Core Cortex-A53 CPU
      • ARM Mali-G31 GPU, supports OpenGL ES 3.2
      • 4K@60fps H.265/H.264 video decoding
      • Up to 2GB LPDDR4 RAM
      • 8GB eMMC storage (on some variants) and microSD card slot
      • Wi-Fi 5 (802.11ac) + Bluetooth 5.0
      • Mini HDMI for display output
      • USB 2.0 OTG + USB 2.0 Host
      • 40-pin GPIO header (Raspberry Pi compatible layout)
      • Compact form factor – similar to Raspberry Pi Zero


      Applications:
      • IoT gateway
      • DIY embedded projects
      • Networked smart sensors
      • Media playback device
      • Lightweight server or Linux desktop
      • Robotics and automation systems
