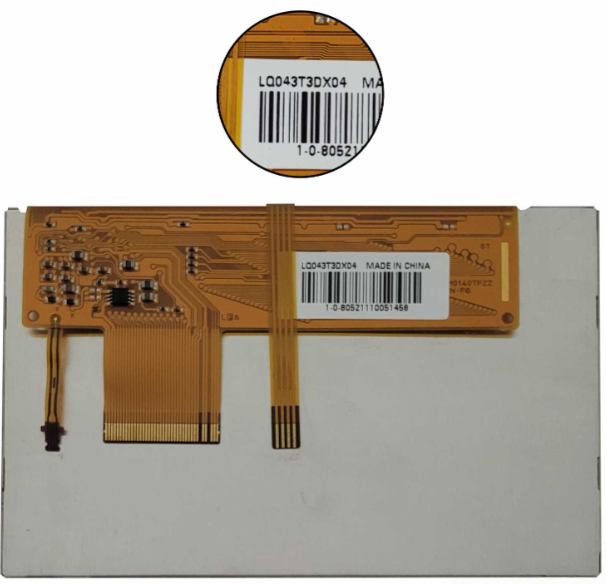

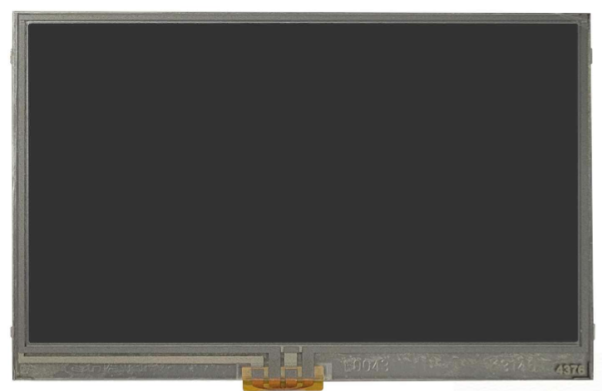

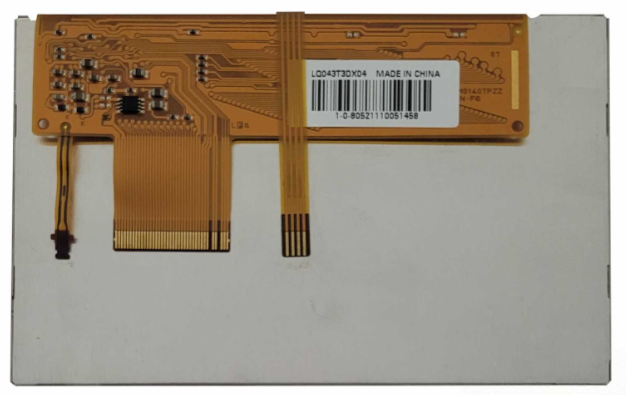

The Sharp LQ043T3DX04 LCD Module with Touch Screen is a 4.3″ a-Si TFT-LCD panel that delivers a resolution of 480(RGB)×272 (WQVGA) at a crisp 128 PPI, making it well-suited for compact visual interfaces. The active area of 95.04 × 53.856 mm is housed within a streamlined 105.5 × 67.2 mm chassis, offering a sleek design that supports seamless integration into space-sensitive applications.
In terms of visual performance, the panel achieves a typical luminance of 230 cd/m² and a contrast ratio of 400:1, ensuring legible display output under standard lighting conditions. Additionally, its wide viewing angles (80/80/80/80, CR≥10) provide consistent clarity from all directions.
What sets this panel apart is its ASV (Advanced Super View) technology, operating in a normally black, transmissive mode, which enhances black levels and color contrast. Combined with support for 16.7 million colors, the display produces vibrant and accurate visuals ideal for rich media content.

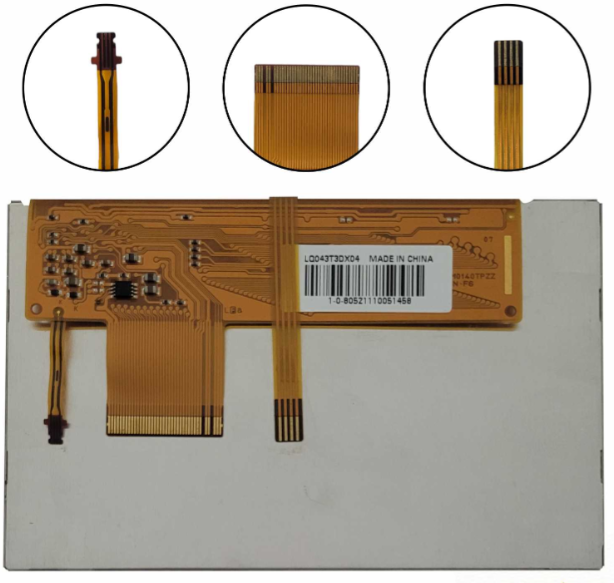

Moreover, the panel features a Parallel RGB interface (8-bit, 40-pin FPC) for broad compatibility, operating at a frame rate of 60Hz. Its 2.5V/5.0V power supply offers flexibility in embedded designs, while the 7S1P WLED backlight (driver not included) supports efficient illumination across its lifespan.
Designed to endure, it functions reliably within -20°C to 60°C operating temperatures, and withstands storage temperatures ranging from -30°C to 70°C, making it a durable choice for both indoor and moderately demanding environments.
