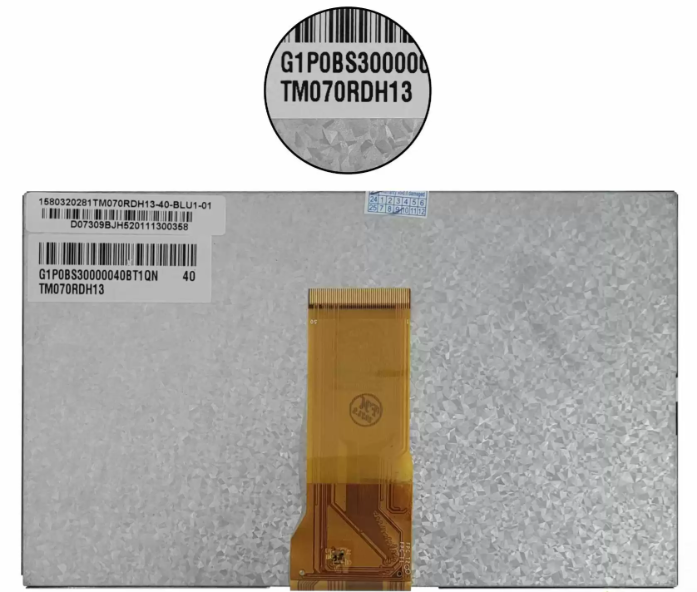

Tianma TM070RDH13 LCD display

The Tianma TM070RDH13 LCD Module is a 7.0″ WVGA display offering well-rounded performance for versatile applications. It features a resolution of 800(RGB)×480 with a pixel density of 134 PPI, ensuring sharp visuals across a 154.08×85.92 mm active area. Its compact outline dimension of 164.9×100×6 mm suits space-constrained designs. The display has a contrast ratio of 500:1 (Typ.), providing decent differentiation between light and dark regions. Viewing angles of 70/70/60/70 degrees (CR≥10) allow consistent visibility from multiple perspectives. The response time is 25 ms (Typ.), suitable for static and moderately dynamic content. Equipped with antiglare treatment, it minimizes reflections for bright environments. It supports 262K/16.7M colors at 55% NTSC, delivering vibrant visuals with satisfactory color range. The display uses a parallel RGB interface and a 3S6P WLED backlight rated for 20,000 hours, ensuring easy integration and reliable illumination. It operates within a temperature range of -20 to 70°C and can be stored between -30 to 80°C, making it ideal for industrial or outdoor use.
