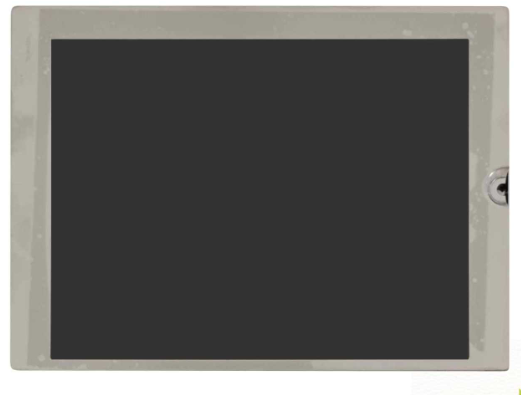

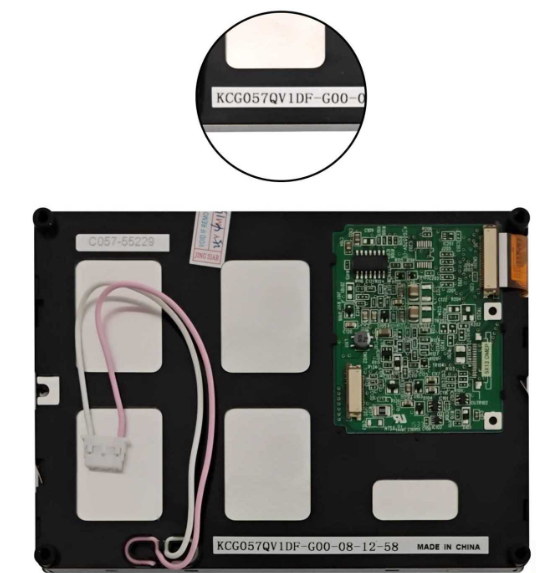

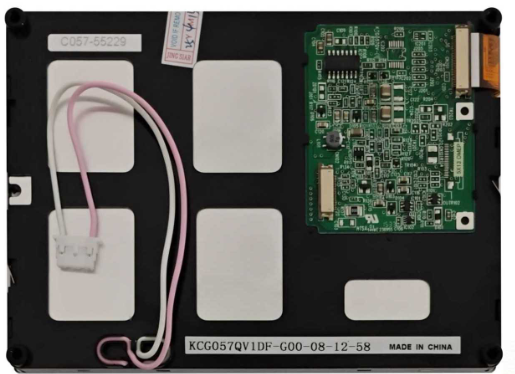

The Kyocera KCG057QV1DF-G00 is a 5.7-inch Color Super Twisted Nematic (CSTN) LCD module tailored for industrial and embedded applications. Featuring a QVGA resolution of 320(RGB)×240 pixels and a pixel density of approximately 70 PPI, this display ensures satisfactory clarity for standard graphical and text interfaces. The active area of 115.2 mm (W) × 86.4 mm (H) provides a balanced visual field suitable for compact control panels and instrumentation interfaces.
Utilizing CSTN technology in a Normally Black, Transmissive mode, the display enhances contrast under consistent backlighting while enabling color rendering with acceptable performance for moderate-intensity applications. Though exact specifications for brightness, contrast ratio, and viewing angles are not disclosed, it meets typical CSTN standards suitable for low-to-medium complexity visual outputs.
The module interfaces using a 15-pin, single-channel 8-bit Parallel Data connection, making it easily integrable into systems using TTL signal levels. Supporting a 75Hz frame rate, it delivers improved visual responsiveness compared to standard 60Hz panels, reducing flicker in rapidly updated user interfaces.

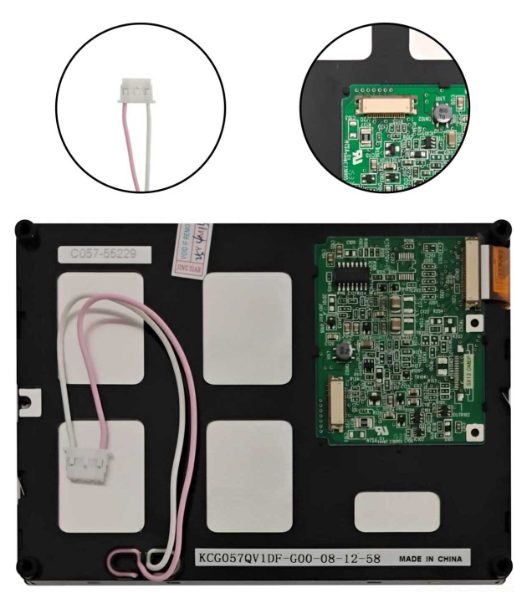

A single CCFL backlight lamp ensures consistent screen visibility in typical lighting conditions. Though exact power supply requirements and operating temperature range are not provided, the display is engineered for embedded and industrial environments, suggesting compatibility with common industrial voltage rails and operating ranges.
