Technical Specifications

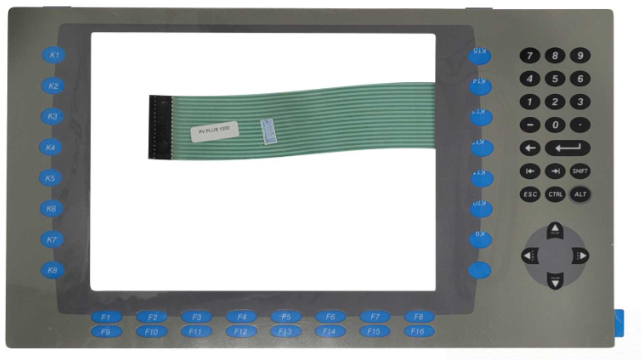

Product Type: Front Keypad Overlay Membrane
Compatible Model:Allen-Bradley PanelView Plus 1000 (2711P-T10 series)
Material Composition:
Top Layer: Industrial-grade Polyester (PET)
Circuitry:Screen-printed conductive tracks for reliable signal flow
Finish: Matte anti-glare surface with high-contrast legends
Keypad Configuration:
Full numeric, navigation, and function key layout
Designed to mirror the original PanelView Plus 1000 interface
Responsive tactile domes for improved operator feedback
Mounting Method:

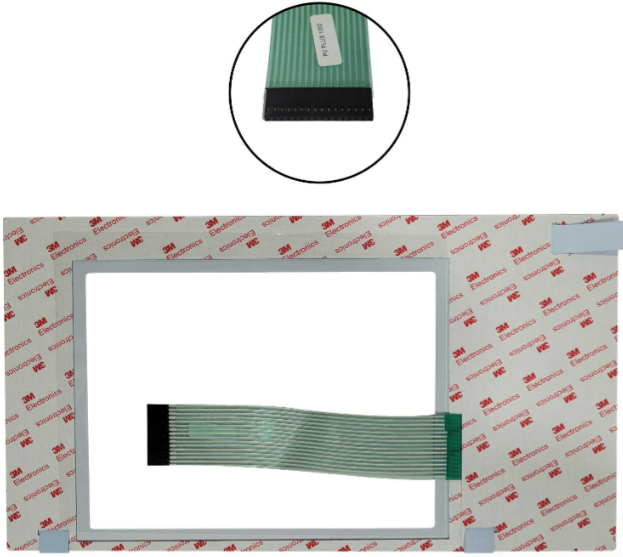

Industrial adhesive backing (pre-applied) for peel-and-stick installation
Ensures secure fit on the HMI faceplate
Ingress Protection:
IP65-rated (when installed on a clean, flat surface)
Dust-proof and water-resistant front interface suitable for industrial environments
Color Scheme:
Standard gray and blue tones with white text for readability
Dimensions: Approx. 312 mm × 228 mm (OEM-matched)
