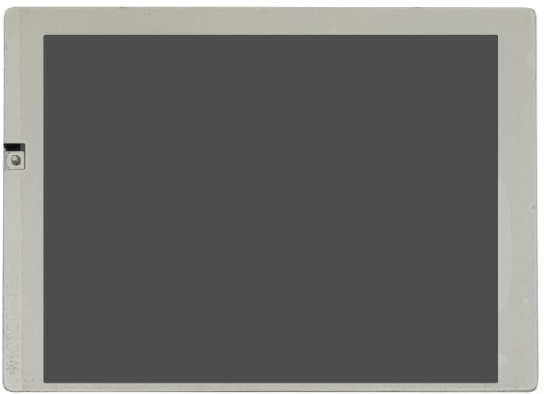

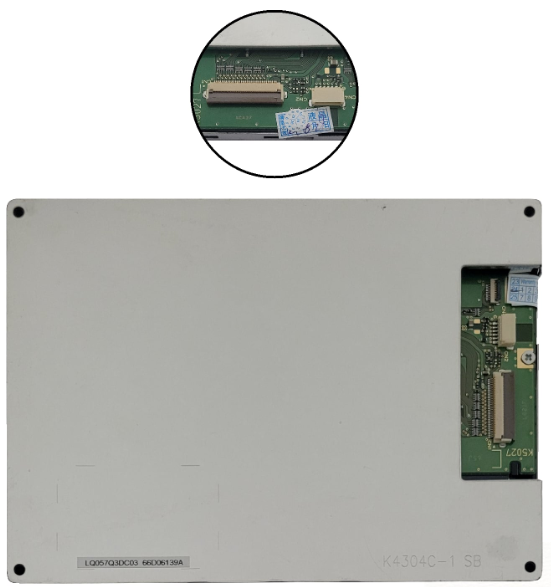

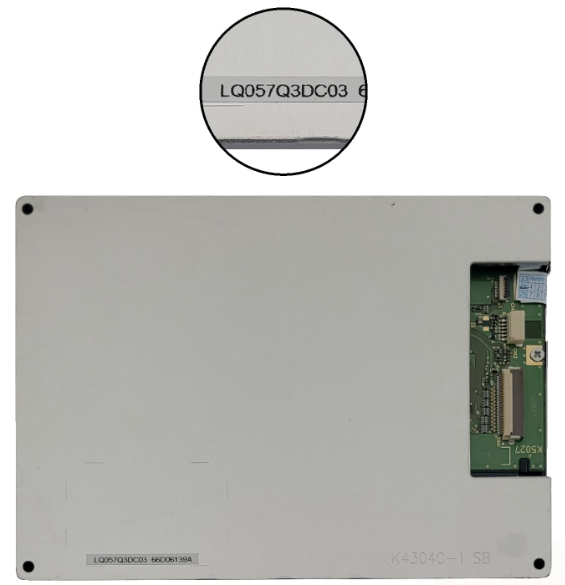

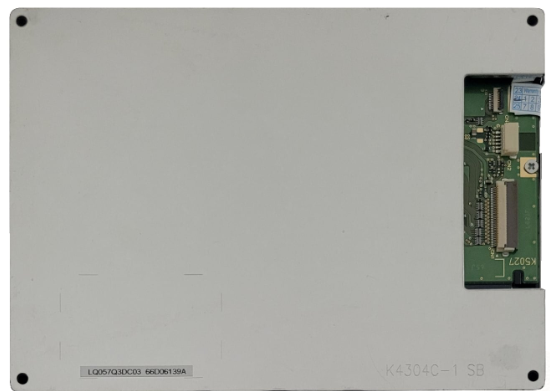

The Sharp LQ057Q3DC03 LCD Module is a 5.7″ a-Si TFT-LCD display boasting a QVGA resolution of 320×240 pixels, providing a pixel density of 70 PPI for sharp and clear visuals. With an active area of 115.2 mm (W) × 86.4 mm (H), and outline dimensions of 144 mm (W) × 104.6 mm (H) × 12.8 mm (D), it is compact yet effective for applications requiring a smaller screen size.
This display offers 500 cd/m² luminance, ensuring vibrant image quality even in well-lit environments. The contrast ratio is 350:1 (Min.), delivering a good balance of light and dark contrasts. With a viewing angle of 80°/80°/80°/65° (Typ.), it provides a broad field of view, minimizing color distortion and ensuring visibility from various angles.
The response time is 30 ms (Typ.), enabling smooth transitions and reduced motion blur. The panel type is a-Si TFT-LCD, and it uses an RGB Horizontal Stripe treatment, which provides clear color separation and precise image rendering.
This display supports 262K colors and operates in TN, Normally White, Transmissive mode. It features a Parallel RGB interface (1 ch, 6-bit), and the backlighting is provided by a WLED, lasting up to 50K hours. Operating with a 3.3V power supply, it is energy-efficient and ideal for portable devices and embedded systems.
