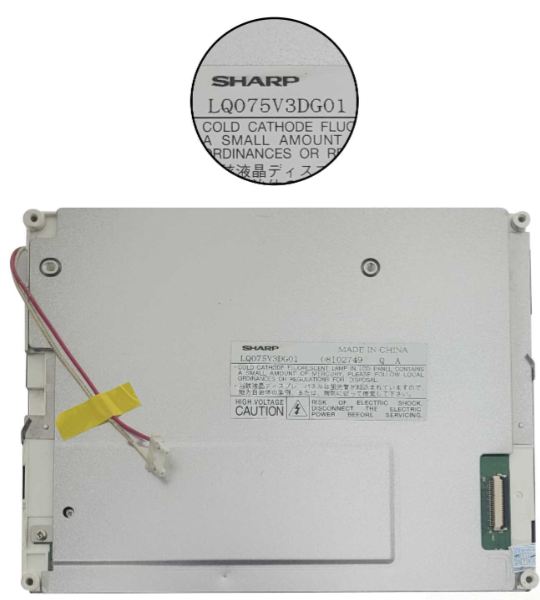

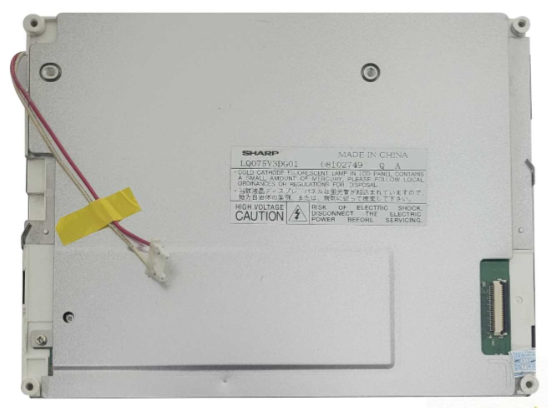

Sharp LQ075V3DG01 LCD display – Reliable Display for Industrial & Medical Use

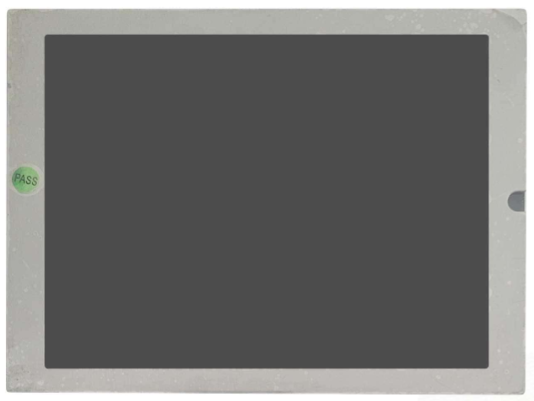

The Sharp LQ075V3DG01 is a 7.5-inch a-Si TFT-LCD display module designed specifically for industrial and medical applications where durability and clarity are essential. Featuring a VGA resolution of 640 × 480 pixels with a pixel density of 107 PPI, this display ensures sharp and clear visuals suitable for detailed data representation and control interfaces.

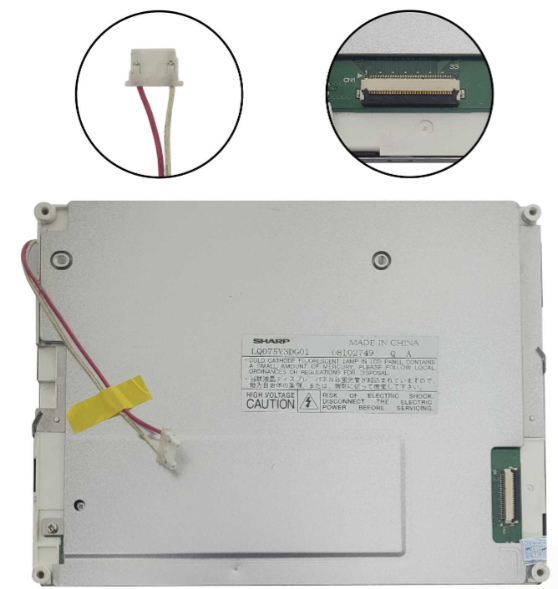

Equipped with a single-piece CCFL backlight system (without an integrated backlight driver), the panel provides a bright and evenly lit screen with a contrast ratio of 600:1, enabling excellent differentiation between light and dark areas. The backlight offers a long operational life of up to 50,000 hours, but requires an external driver for proper operation.

The display supports 262K colors, delivering natural color reproduction through a Parallel RGB interface (1 channel, 6-bit), accessible via a 33-pin connector, which makes it easy to integrate into existing embedded systems and industrial equipment.

Built for rugged environments, the module operates reliably across a wide temperature range of -30°C to 80°C and can withstand vibration levels up to 2.0G (19.6 m/s²), ensuring dependable performance in harsh and demanding conditions.

Powering the display typically requires a 3.3V supply, aligning with many industrial and embedded system standards.
