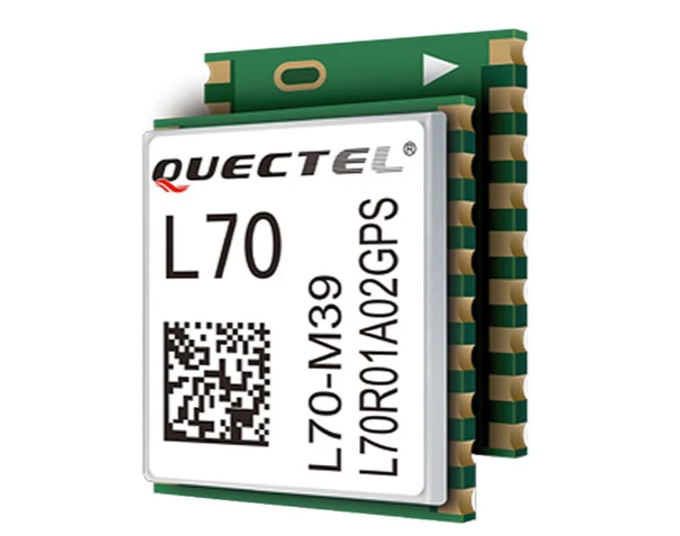

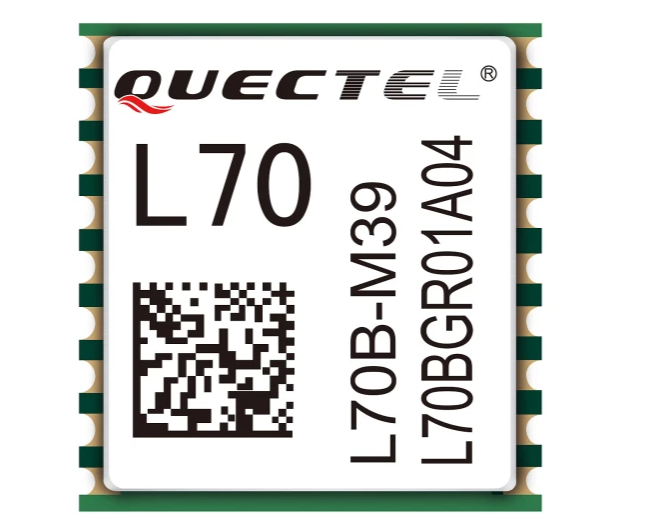

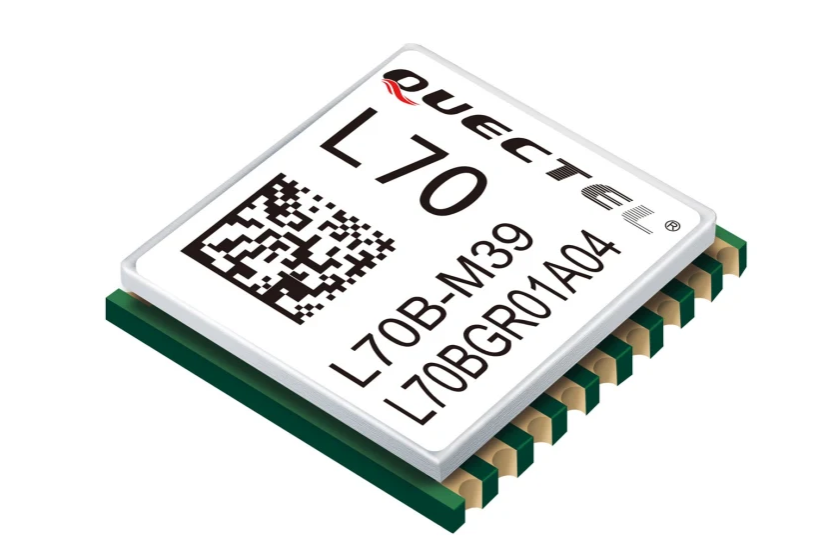

RF AND WIRELESS MODULEQUECTEL MODULES QUECTEL L70-R L70REM37 Q1-A0372
QUECTEL L70-R L70REM37 Q1-A0372
QUECTEL L70-R L70REM37 Q1-A0372
QUECTEL L70-R L70REM37 Q1-A0372
QUECTEL L70-R L70REM37 Q1-A0372

QUECTEL L70-R L70REM37 Q1-A0372

Specifications:

  • Satellite Systems: GPS L1, QZSS

  • Position Accuracy: <2.5 m CEP

  • Velocity Accuracy: <0.1 m/s

  • Acceleration Accuracy: <0.1 m/s²

  • Sensitivity:

    • Acquisition: –148 dBm

    • Tracking: –165 dBm

    • Reacquisition: –160 dBm

  • Time to First Fix (TTFF):

    • Cold start: <35 s (no AGPS), <15 s (with AGPS)

    • Warm start: <30 s (no AGPS), <5 s (with AGPS)

    • Hot start: <1 s

  • Operating Voltage: 2.8 V to 4.3 V (typical 3.3 V)

  • Power Consumption:

    • Tracking: ~13 mA

    • Acquisition: ~16 mA

    • Standby: ~0.5 mA

    • Backup: ~8 µA

  • Interface: UART (4 800 – 115 200 bps; default 9 600 bps)

  • Protocol Support: NMEA 0183, PMTK

  • Environmental Tolerance:

    • Altitude: up to 18 000 m

    • Velocity: up to 515 m/s

    • Acceleration: up to 4 g

  • Operating Temperature: –40 to +85 °C

  • Size: 10.1 × 9.7 × 2.5 mm

  • Weight: ~0.6 g

Non-returnable
₹850.00 ₹1,000.00
Product Details

The Quectel L70-R is a compact and ultra-low-power GNSS module supporting GPS and QZSS, designed for space-sensitive and battery-powered applications. It features an integrated patch antenna, making it ideal for wearable trackers, asset monitoring devices, and industrial handhelds. The module supports advanced AGPS features for faster cold starts and improved acquisition in challenging environments.

Features:

  • Integrated patch antenna in a miniature form factor

  • EASY™ (Embedded Assist System) AGPS support

  • High sensitivity: –165 dBm (tracking), –148 dBm (acquisition)

  • Supports GPS and QZSS systems

  • 66 acquisition and 22 tracking channels

  • Extremely low power consumption (~13 mA tracking)

  • Built-in LNA for improved RF sensitivity

  • PPS (Pulse Per Second) output with ±10 ns accuracy

  • UART interface with support for NMEA 0183 and PMTK command protocols

  • Small footprint: 10.1 × 9.7 × 2.5 mm; Weight: ~0.6 g
