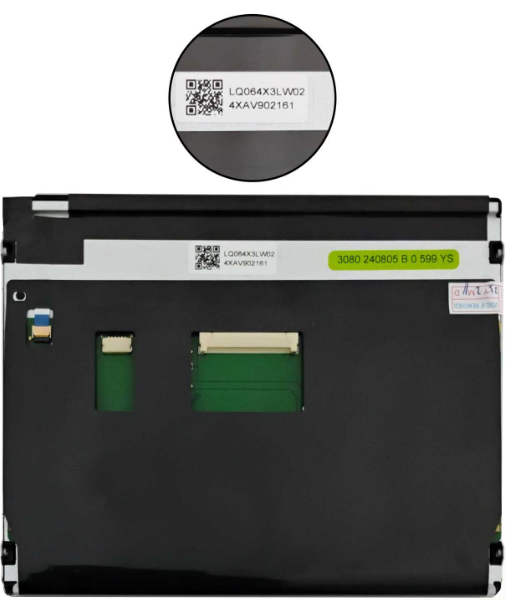

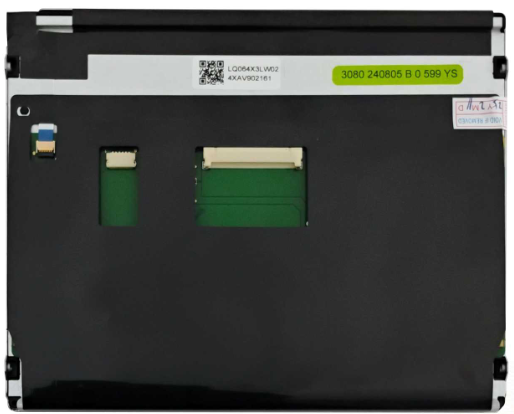

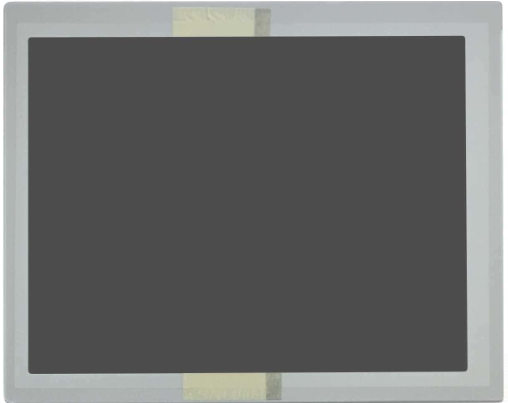

The Sharp LQ064X3LW02 is a 6.4-inch TFT-LCD panel delivering XGA resolution of 1024 × 768 pixels with a high pixel density of 200 PPI, providing exceptionally sharp and detailed visuals suitable for professional, industrial, and embedded applications.
Designed with wide viewing angles of 80° in all directions (80/80/80/80°), the display ensures excellent visibility from various perspectives, making it ideal for environments where multiple viewers or dynamic viewing positions are common.
The panel features a luminance of 390 cd/m² combined with a strong contrast ratio of 800:1, delivering bright images with deep blacks for enhanced readability and superior image quality under different lighting conditions. The antiglare hard coating (3H) adds durability and significantly reduces screen reflections, boosting usability in bright or glare-prone settings.
Operating in ASV (Advanced Super View) mode, this display maintains consistent color reproduction and contrast, while the normally black transmissive configuration further enhances image quality by improving contrast and reducing ambient light interference.
The 60Hz refresh rate supports smooth motion and fluid transitions, making it suitable for professional-grade video and graphical applications.

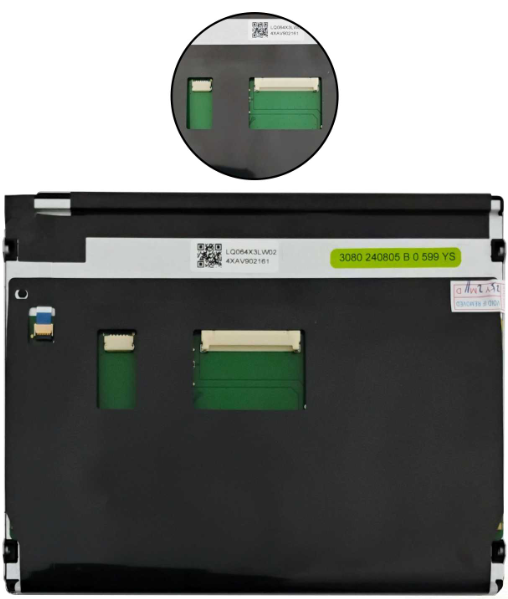

Connectivity is provided via a single-channel 8-bit LVDS interface, using a 20-pin connector for easy integration into existing systems and embedded solutions. Powered by a 3.3V supply, the display offers stable operation with efficient power consumption.
The integrated WLED backlight system boasts a long 70,000-hour lifespan and includes a built-in LED driver, improving power efficiency and reducing the need for frequent maintenance.
