Specifications:

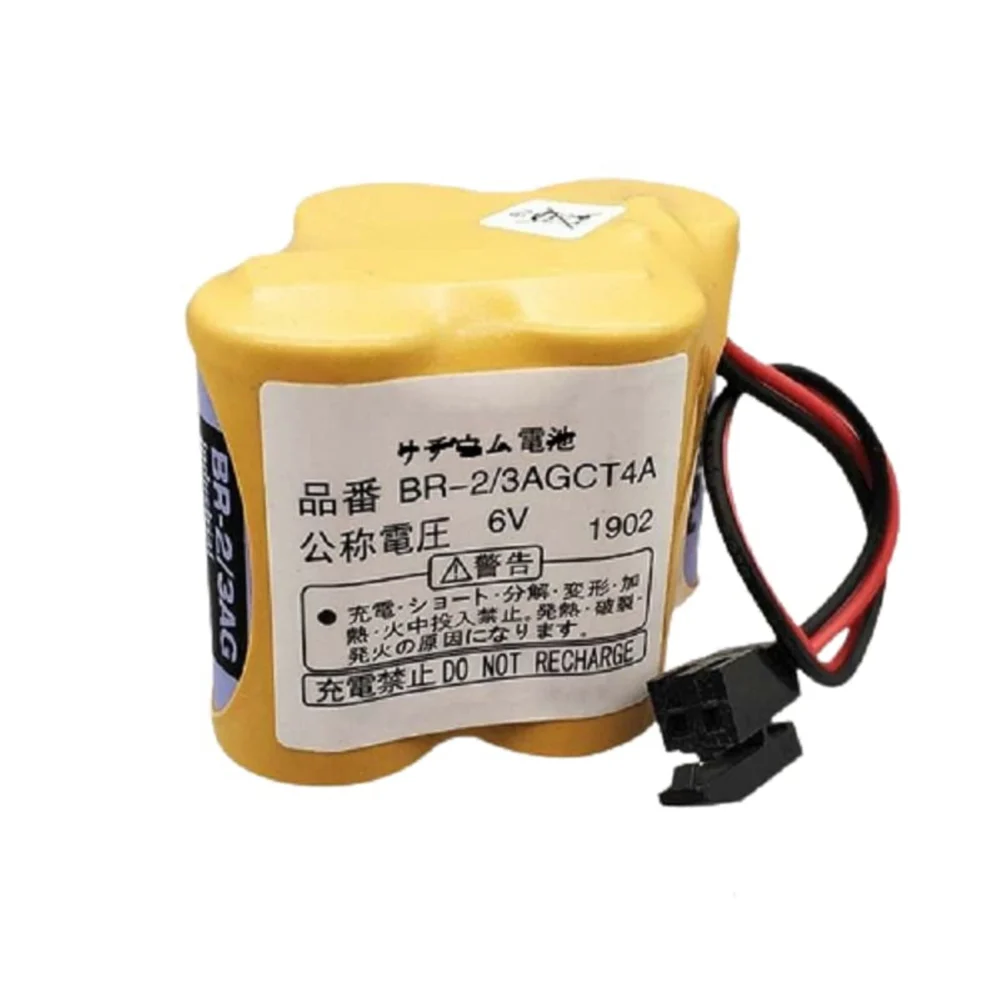

Model: BR 2/3AGCT4A
Type: Lithium Manganese Dioxide (BR-series)
Nominal Voltage: 6 V (2 × 3 V cells)
Total Capacity: ~100 mAh (6 V pack)
Physical Size (per cell): Approx. 10.8 mm diameter × 20 mm length
Pack Length: ~20 mm (stacked in case)
Weight: ~8 g
Operating Temperature Range: –30 °C to +60 °C
Shelf Life: Up to 10 years at room temperature
Typical Uses: Compact flash units, memory backup, RTCs, remote sensors
