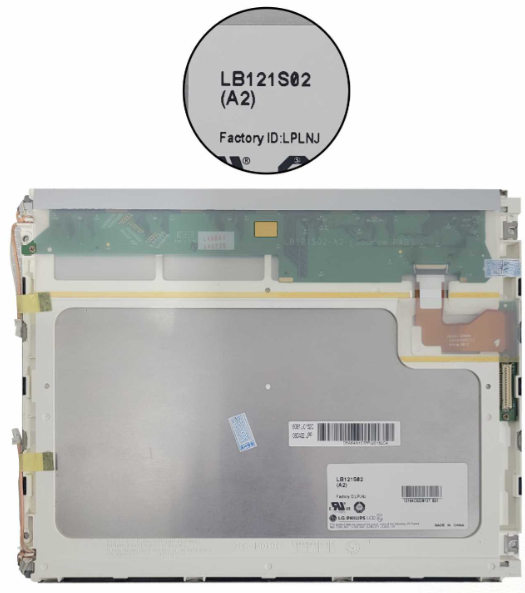

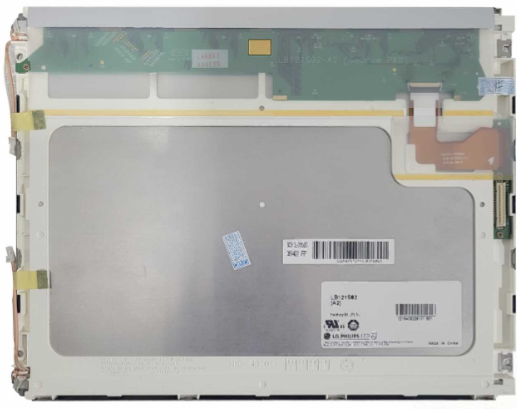

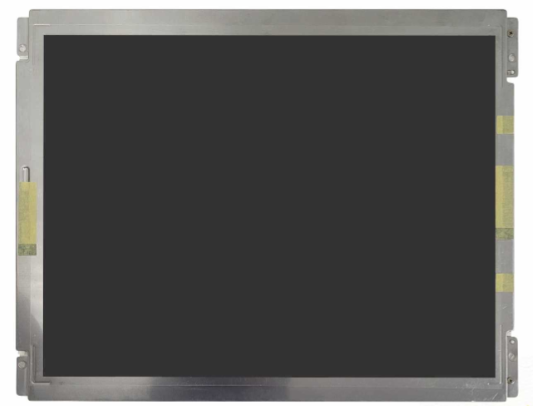

LG. Philips LB121S02-A2 LCD DISPLAY

The LG.Philips LB121S02-A2 is a 12.1-inch a-Si TFT-LCD module designed as a reliable display solution for industrial and embedded applications. It features an 800×600 (SVGA) resolution with a pixel density of 82 PPI, delivering clear and legible visuals ideal for user interfaces, industrial control panels, and diagnostic equipment.

The display offers an active area of 246 × 184.5 mm, fitting neatly into devices with a compact 280 × 218 × 11.5 mm form factor, making it suitable for integration into space-constrained enclosures.

With a luminance of 300 cd/m² and a contrast ratio of 200:1, the LB121S02-A2 provides good image clarity for text and general graphics, though it is not optimized for use in direct sunlight or extremely bright environments. The panel supports viewing angles of 60° horizontally and 55° vertically, offering moderate visibility from different viewing positions, which is beneficial for shared displays or user-facing applications.

Utilizing TN (Twisted Nematic) technology in a normally white, transmissive mode, this module features a 3H hard coating to resist scratches and reduce reflections. An anti-glare surface treatment further enhances viewing comfort and display durability.

The panel supports 262K colors with 45% NTSC coverage, providing adequate color fidelity for most industrial and embedded scenarios where color accuracy is non-critical.

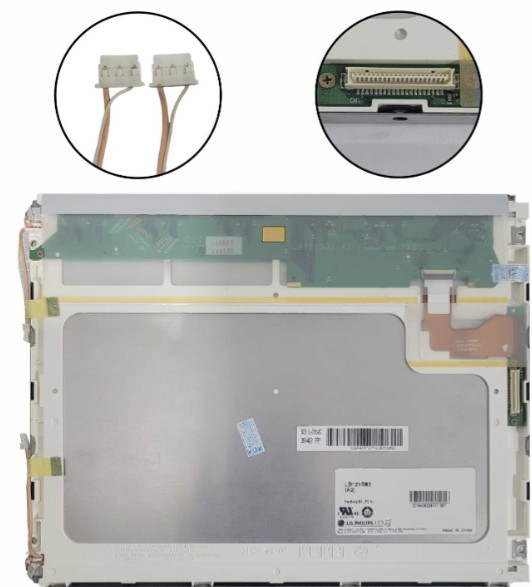

Powered by 3.3V, it interfaces through a 41-pin parallel RGB (1 channel, 6-bit) connector for straightforward integration. The module includes two CCFL backlights with a rated lifespan of 50,000 hours, though an external backlight driver is required.

Operating temperature ranges from 0°C to 50°C, with storage tolerance between -20°C and 60°C, making the LB121S02-A2 suitable for typical industrial environments.
