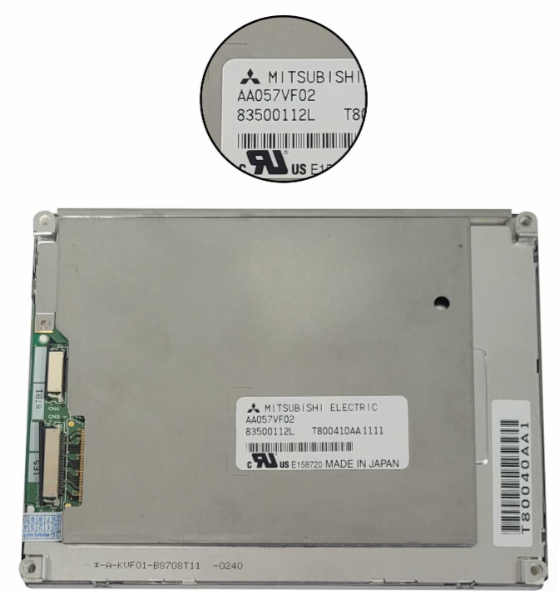

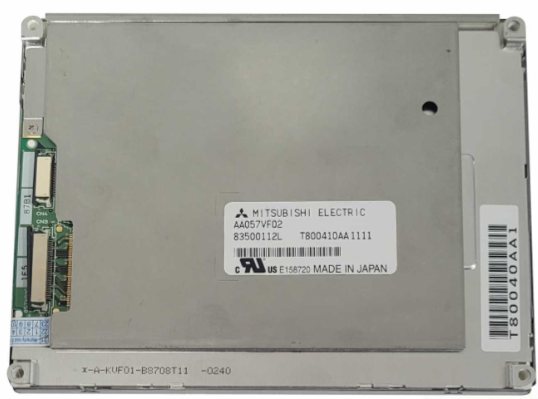

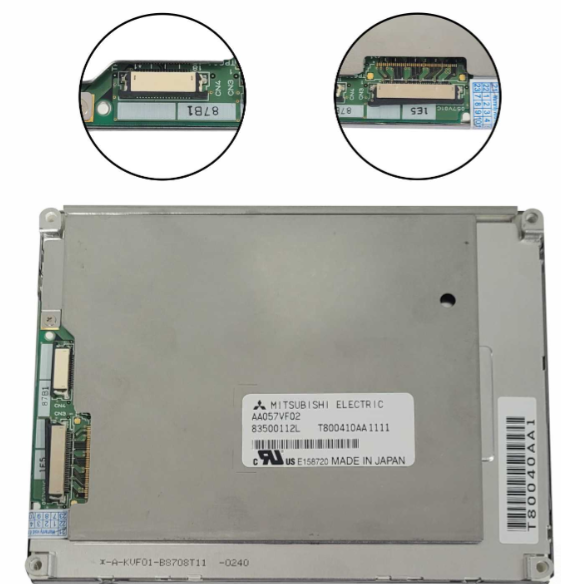

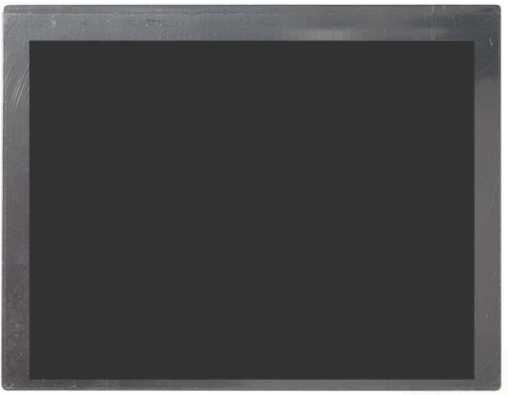

Mitsubishi AA057VF02 LCD display

Specification:

1. Manufacturer: Mitsubishi

2. Model: AA057VF02

3. Display Size: 5.7 inches

4. Display Type: TFT LCD – compact and reliable for embedded applications

5. Resolution: 640 × 480 pixels (VGA) – standard clarity for legacy and modern HMI interfaces

6. Brightness: 400 cd/m² – suitable for factory lighting and semi-bright conditions

7. Contrast Ratio: 350:1 – moderate contrast for basic visual output in control panels

8. Viewing Angles: 80° left/right, 65° up/down – good visibility for front-facing installations

9. Interface: CMOS – low-power, easy-to-integrate parallel interface

10. Backlight: CCFL (Cold Cathode Fluorescent Lamp) – includes inverter support; stable illumination for long-duration operation

11. Operating Temperature: -20°C to +70°C – engineered to withstand most industrial environments

12. Compliance: RoHS compliant – conforms to environmental safety regulations
