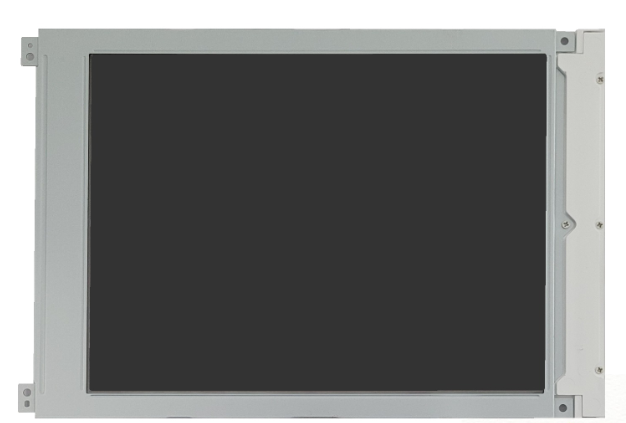

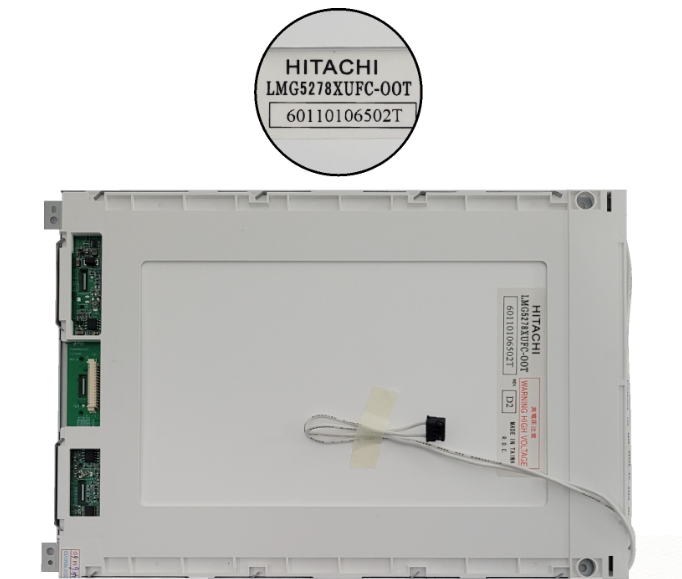

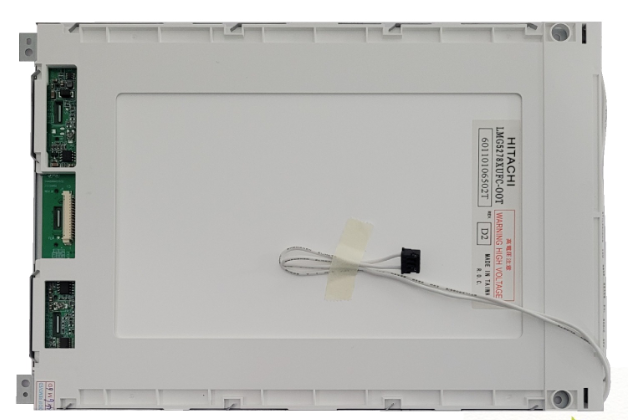

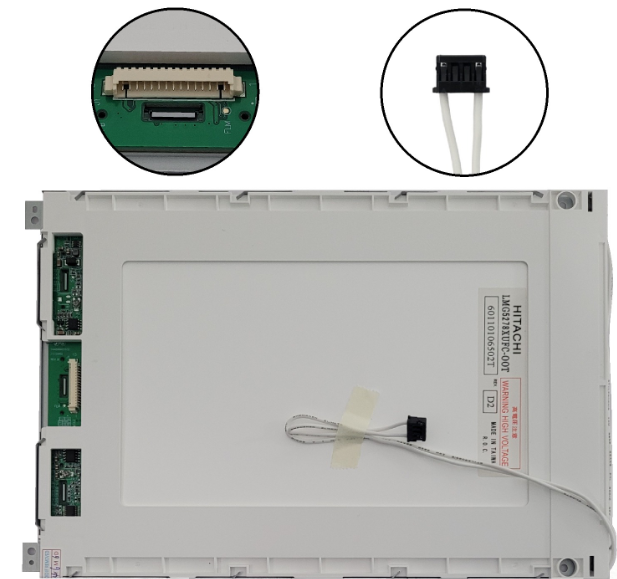

The Hitachi LMG5278XUFC‑00T is a 9.4-inch monochrome graphic FSTN-LCD module designed for demanding industrial applications. Offering VGA (640×480) resolution, this display combines crisp graphical output with CCFL backlighting, providing consistent luminance and high contrast visibility. Built with a rugged mechanical frame, it excels in CNC machines, embedded HMI systems, and industrial controllers that require long-term availability and field reliability.
Mechanical Specifications:
Outline Dimensions: Approx. 250 mm × 180 mm × ~13 mm
Active Area: Approx. 192 mm × 144 mm
Weight: Around 500–650 grams
Frame: Rugged metal housing for EMI protection and physical durability
Mounting: Side tabs or screw holes for easy panel integration
Electrical & Environmental Specs:
Logic Supply Voltage: 5V DC typical
Backlight Supply: Requires external inverter (~350–600V AC for CCFL)
Power Consumption: Low power draw for embedded systems
Operating Temperature: –10 °C to +60 °C
Storage Temperature: –20 °C to +70 °C
Life Expectancy: CCFL typically rated for ~20,000–30,000 hours (can be LED-retrofitted)
