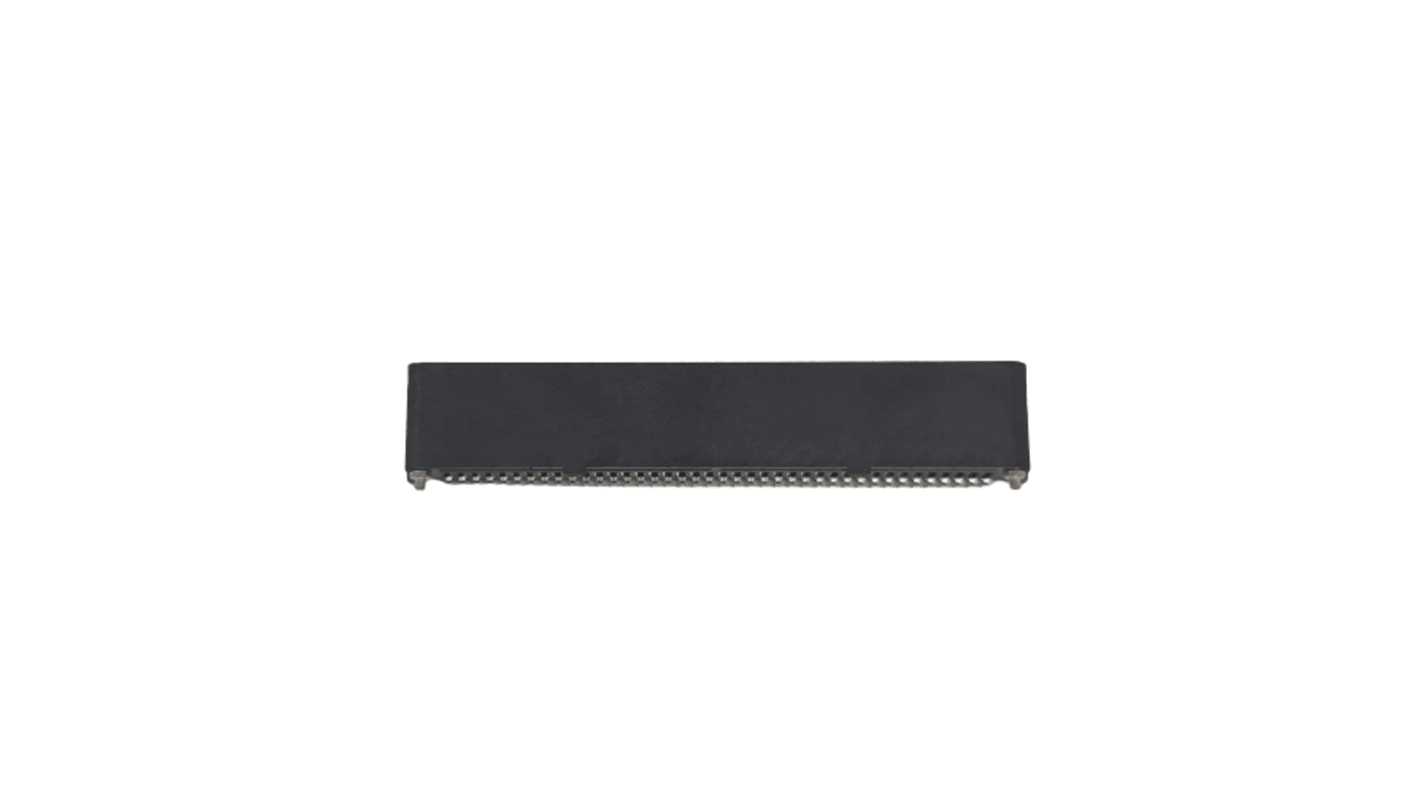

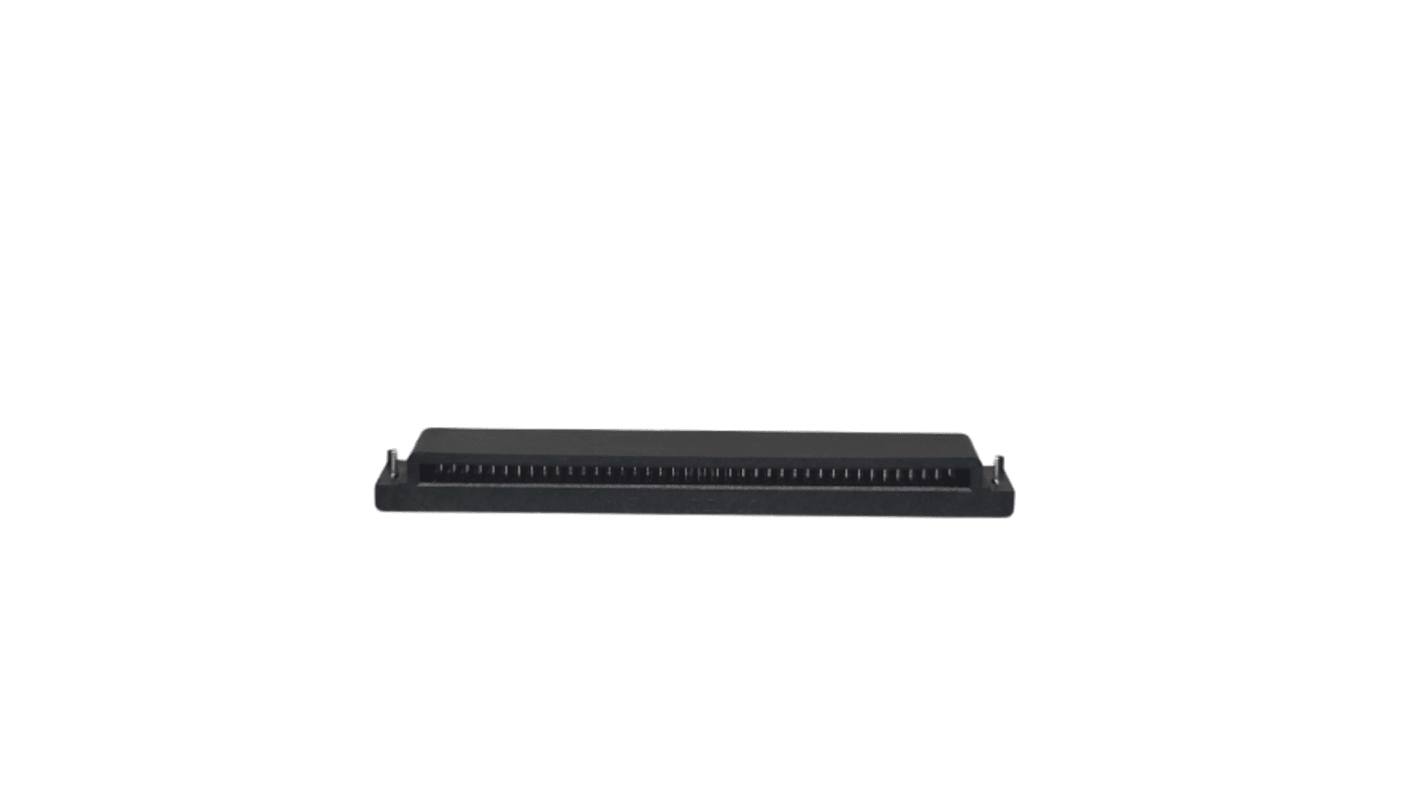

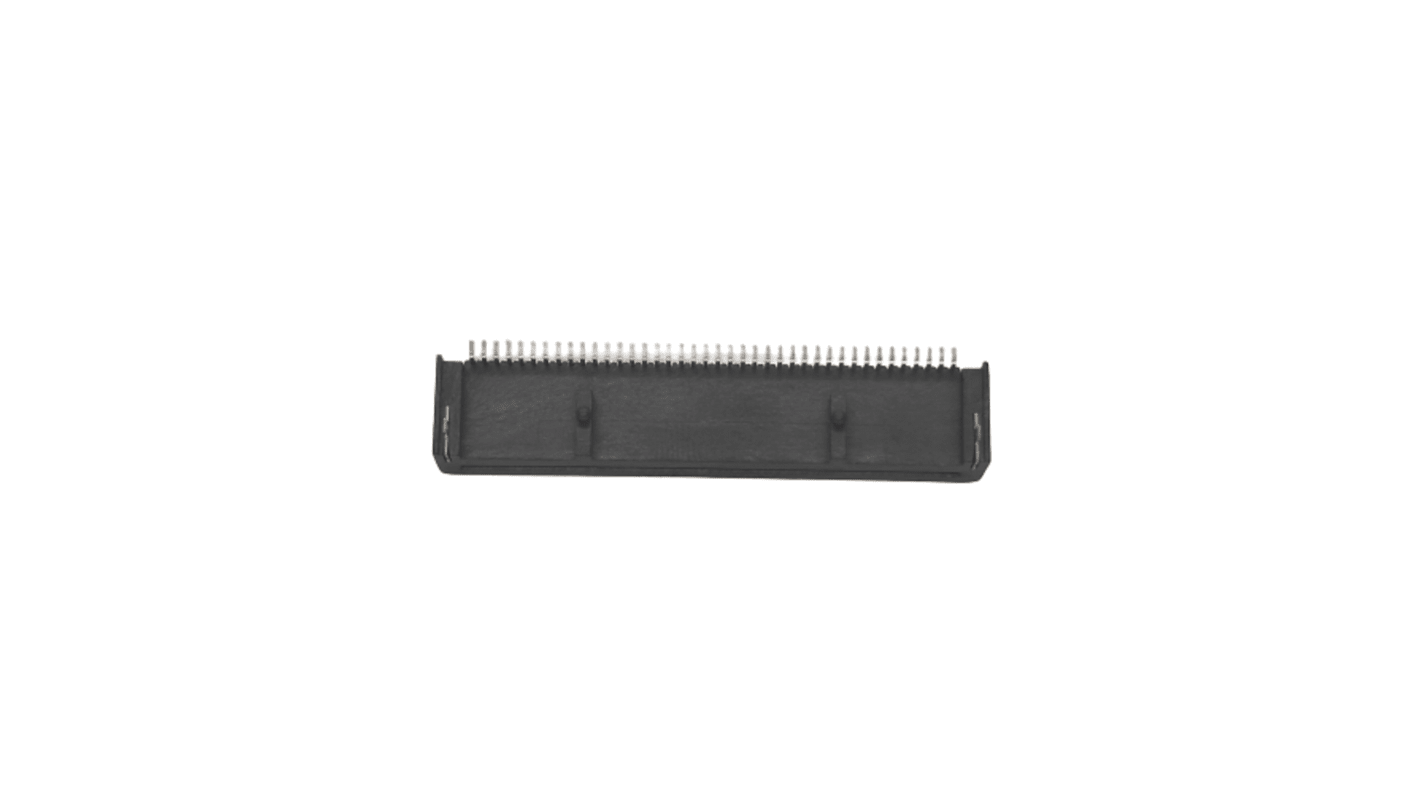

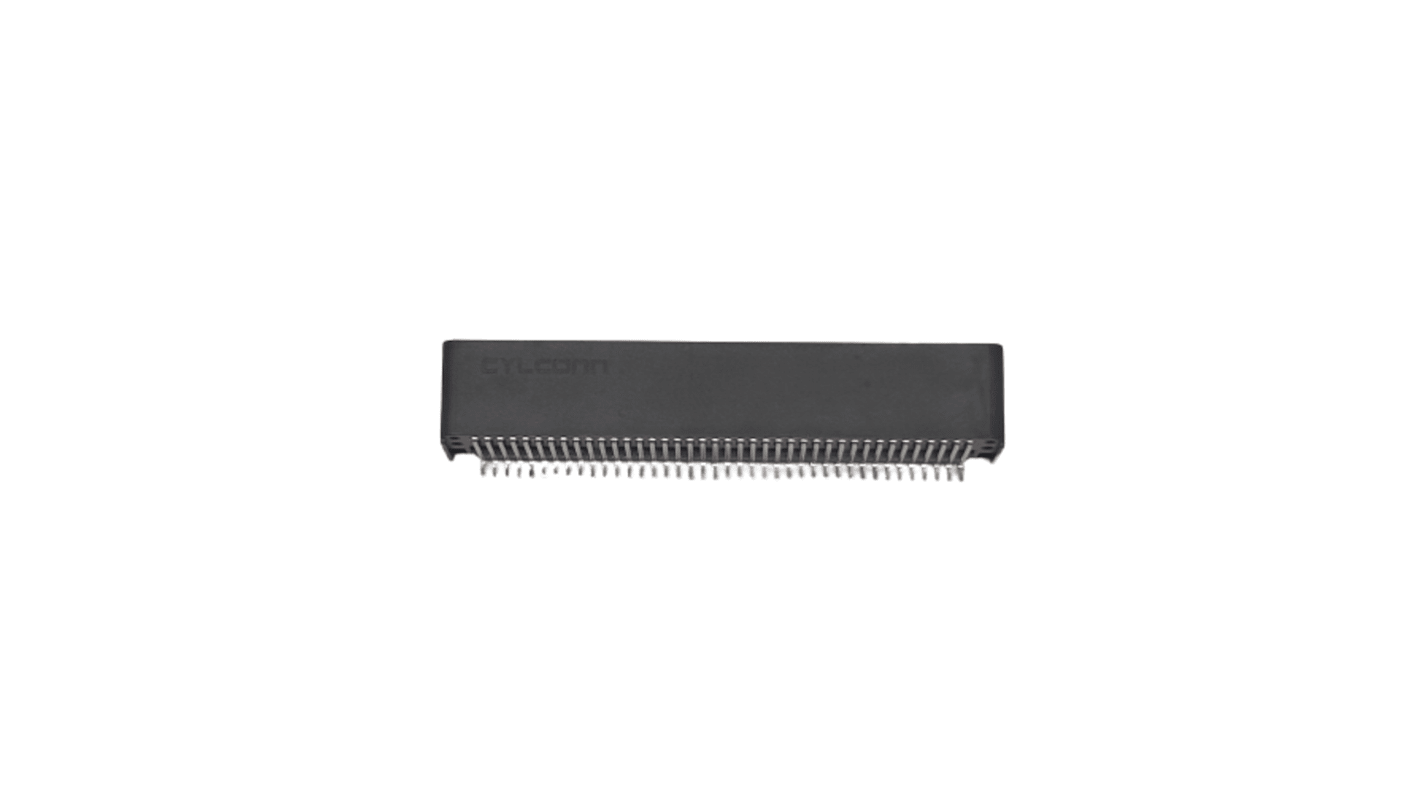

This 40-pin right-angle surface-mount (SMT) connector is designed specifically for use with BBC micro:bit and similar microcontroller development boards. Featuring 90° orientation and a low-profile design, the connector ensures secure electrical contact for edge-type interface boards. With 3µin gold (Au3u) plating on the contact surfaces, it offers excellent corrosion resistance and long-term durability, even under frequent insertions. The connector housing is made of LCP (Liquid Crystal Polymer) in black, offering high heat resistance, mechanical strength, and dimensional stability—ideal for reflow soldering and harsh operating conditions.
Key Features:
40-pin surface-mount (SMT) edge connector
Right-angle 90-degree orientation for horizontal insertion
High-reliability 3µin gold plating (Au3u) for low contact resistance
Made of high-temperature black LCP housing
Compact, low-profile form factor
Optimized for BBC micro:bit and similar educational or IoT projects
RoHS-compliant and lead-free
Ideal for automated SMT assembly
