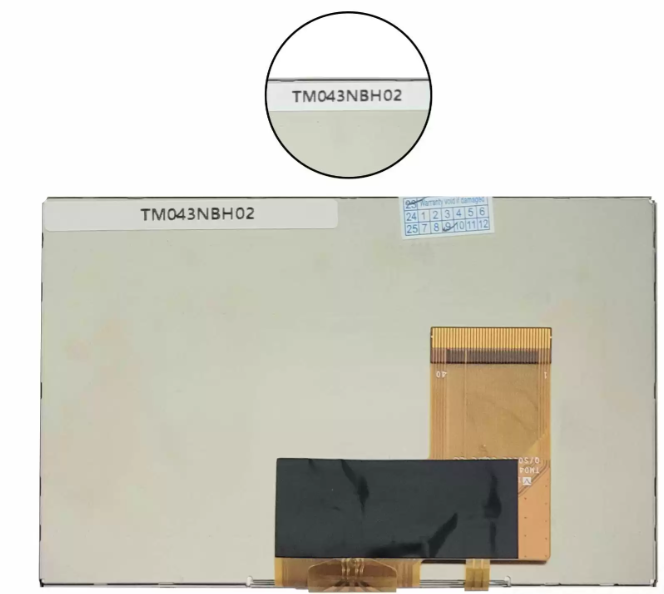

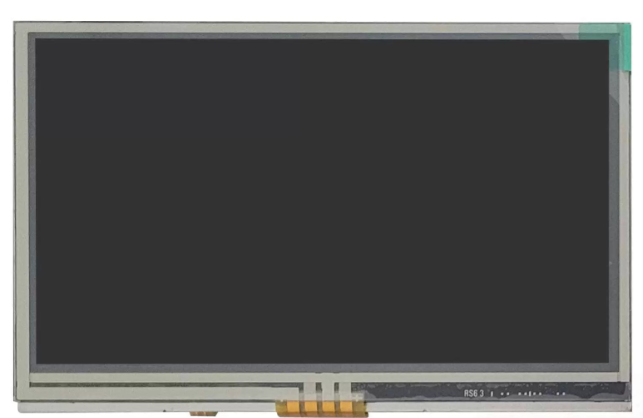

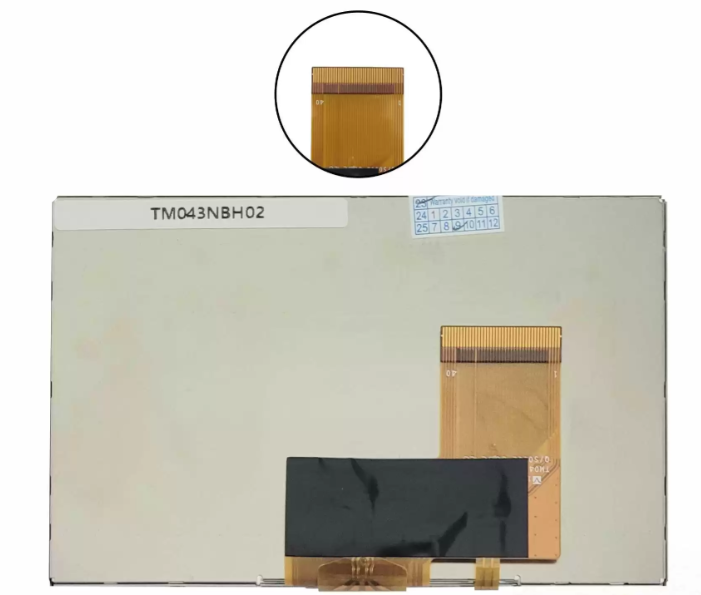

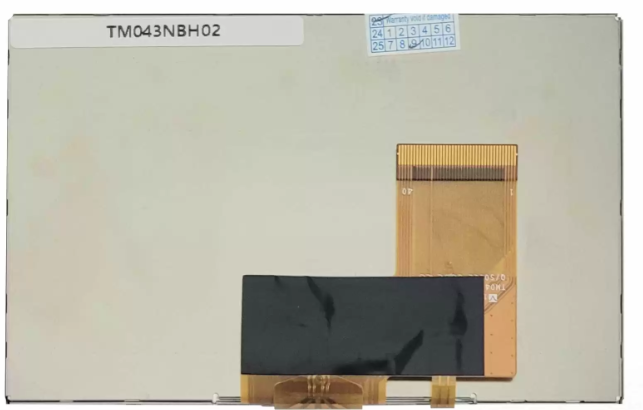

Tianma TM043NBH02 LCD display with Touch Screen

The Tianma TM043NBH02 LCD Module with Touch Screen is a 4.3-inch WQVGA TFT-LCD module, designed to provide clear and vibrant visuals in a compact form factor. It boasts a resolution of 480 × 272 pixels and a pixel density of 128 PPI, delivering sharp image quality. The active area of 95.04 × 53.856 mm is housed in a compact outline dimension of 105.5 × 67.2 × 4.4 mm, making it ideal for space-constrained applications. This display offers a luminance of 280 cd/m², ensuring decent visibility in various lighting environments. The contrast ratio of 450:1 enhances image clarity, while the viewing angle of 70°/70°/70°/50° (CR ≥ 10) guarantees consistent image quality from multiple directions. The response time is 20 ms, suitable for general use cases.

The module features an a-Si TFT-LCD panel with hard coating (3H) for added durability. Supporting 16.7M colors with 50% NTSC, it ensures vivid color reproduction. The power supply operates at 3.3V, and the backlight offers up to 20,000 hours of service life. With an operating temperature range of -30°C to 70°C, it is adaptable to a variety of environments.
