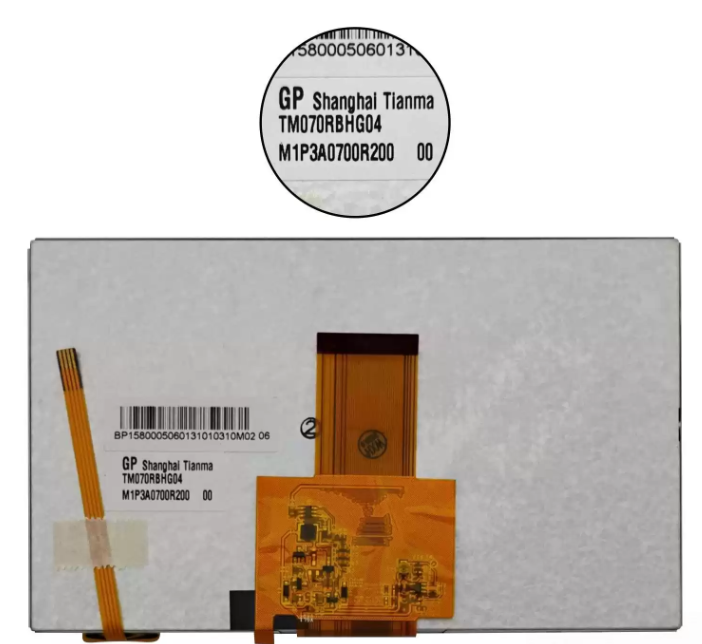

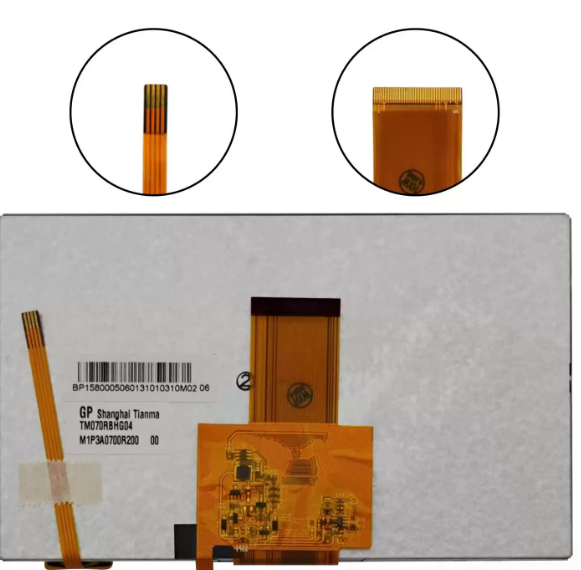

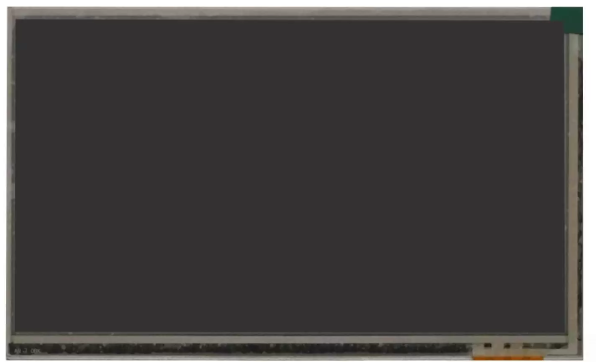

Tianma TM070RBHG04 LCD display with Touch

The Tianma TM070RBHG04 LCD Module With Touch offers a 7.0-inch a-Si TFT-LCD module engineered for outstanding visual clarity and durability across various applications. It has a resolution of 800×480 pixels (WVGA) and a pixel density of 134 PPI, providing sharp, vibrant imagery ideal for industrial, automotive, and consumer electronics platforms. The active area measures 154.08mm (W) × 85.92mm (H), offering efficient screen space, while the compact outline dimensions of 164.9mm × 100mm × 7.1mm allow easy system integration. Equipped with antiglare treatment, the panel ensures clear visibility in bright lighting. It features a strong contrast ratio of 1000:1 (Typ.) and wide viewing angles of 80°/80° horizontally and 60°/80° vertically, keeping content vivid from multiple perspectives. The typical luminance is 280 cd/m², supporting excellent brightness. Built on TN, Normally White, Transmissive technology, it balances performance and cost-efficiency. The Parallel RGB (1 ch, 6/8-bit) 50-pin FPC interface provides system flexibility, while the WLED backlight ensures long-lasting illumination without an integrated driver. Powered by a 3.3V supply and operating between -20°C to 70°C, this panel is a durable and reliable solution for demanding applications.
