Specifications

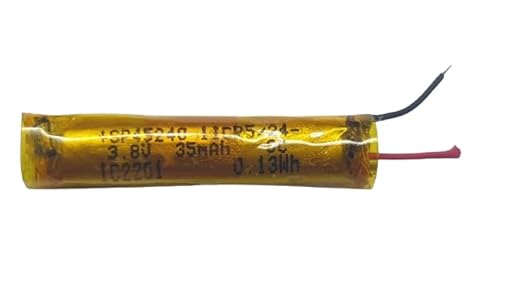

Model Number: SP 45240
Nominal Voltage: 3.8 V
Rated Capacity: 35 mAh
Battery Type: Lithium Polymer (Li-Po)

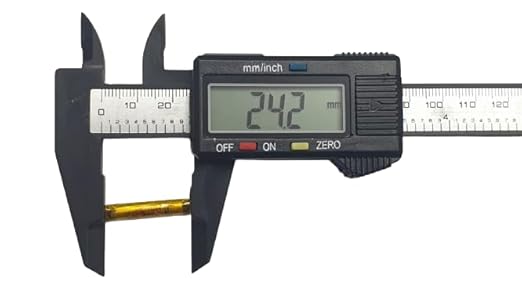

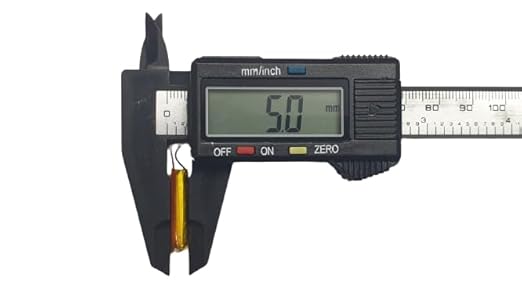

Dimensions (approx): 4.5 mm (thickness) × 24 mm (width) × 0.x mm (length – typically ~20–25 mm depending on exact model)
Charge Voltage: 4.35 V (max)
Cut-off Discharge Voltage: ~3.0 V
Max Charging Current: 0.5 C (≈17.5 mA)
Max Discharging Current: 1 C (≈35 mA)
Weight: ~1–2 grams
Operating Temperature Range: –10 °C to +60 °C
