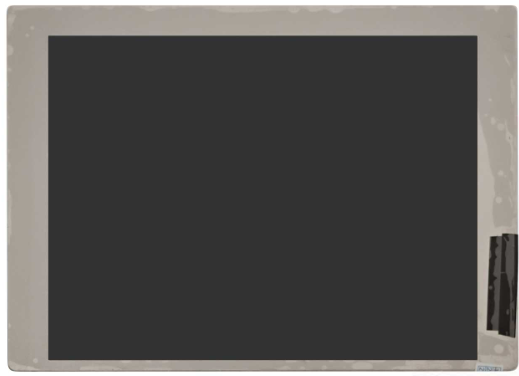

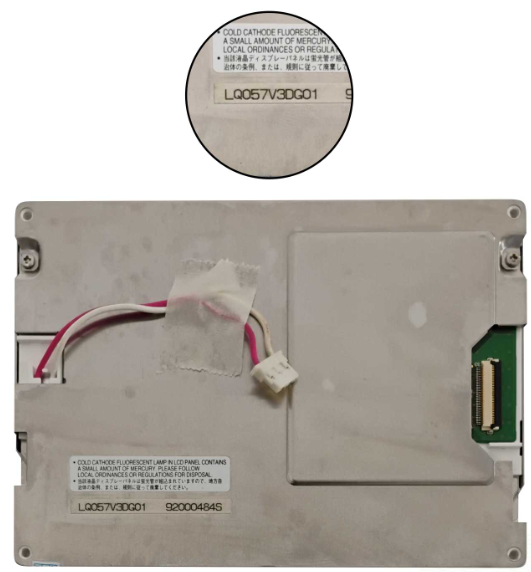

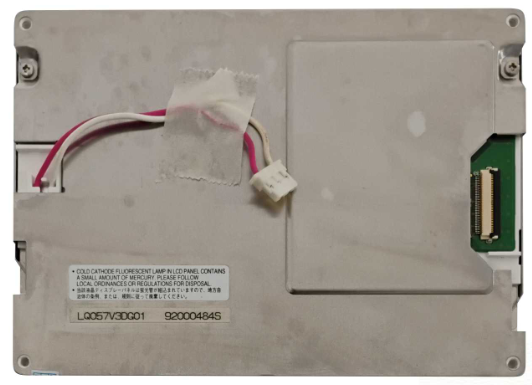

Sharp LQ057V3DG01 LCD display

The Sharp LQ057V3DG01 is a reliable 5.7-inch a-Si TFT-LCD module designed for industrial, medical, and automation applications where sharp visuals and robust performance are essential. Featuring a 640×480 VGA resolution and a high 141 PPI pixel density, this display delivers crisp and detailed images suitable for precise graphical interfaces.

The active display area measures 115.2 mm (W) × 86.4 mm (H), offering ample screen real estate for a variety of embedded system applications. With a contrast ratio of 600:1 and a brightness level of 400 cd/m², the module ensures excellent readability across a broad range of lighting conditions. The display supports wide viewing angles of 80° horizontally and vertically (typical), guaranteeing consistent image quality even from off-center perspectives.

The display boasts a quick response time of 8 ms (rise) and 21 ms (fall), effectively reducing motion blur and enabling smooth rendering of dynamic content. Its surface is treated with an antiglare coating, significantly improving readability by minimizing reflections from ambient light sources.

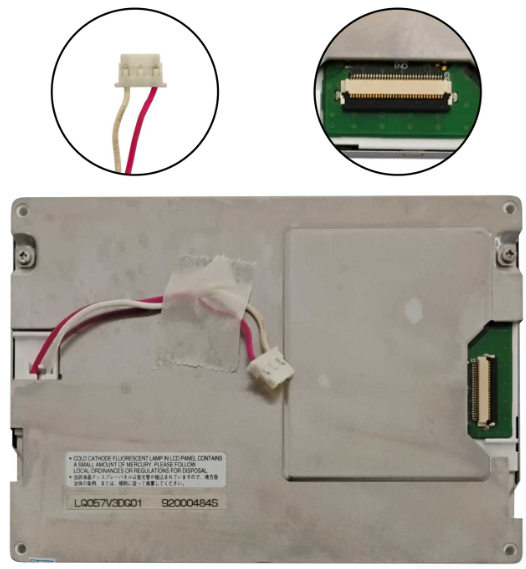

For integration, the module utilizes a Parallel RGB (1 channel, 6-bit) interface via a 33-pin connector, simplifying connectivity with embedded systems and controllers. The display is powered by a 3.3V supply and illuminated by a CCFL backlight system, which offers a long operational life of up to 50,000 hours, ensuring dependable brightness over extended usage.

Built for demanding environments, the Sharp LQ057V3DG01 operates reliably within a wide temperature range of -30°C to 80°C and can withstand vibration levels up to 2.0G (19.6 m/s²), making it an ideal choice for rugged industrial and medical settings.
