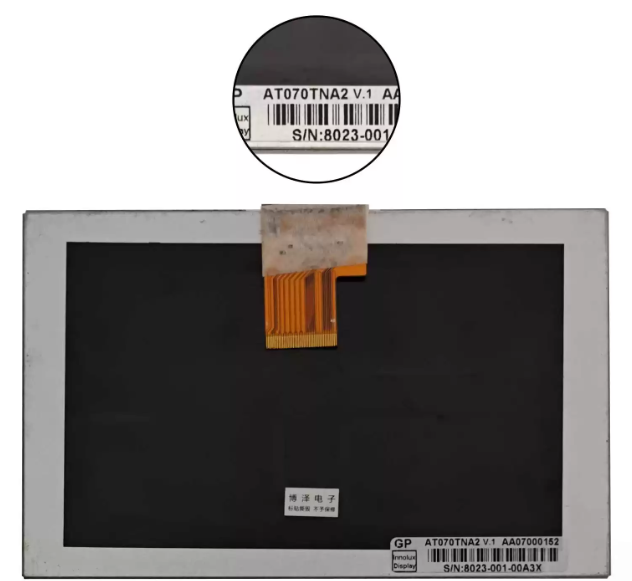

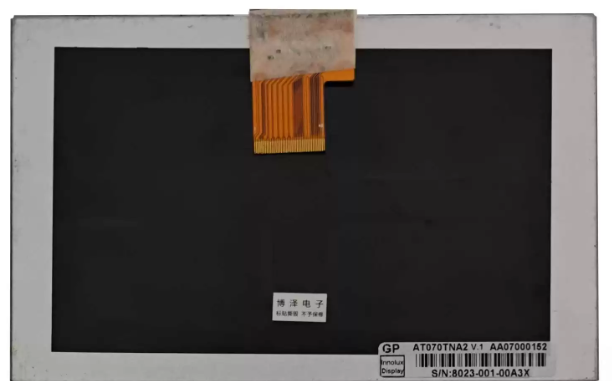

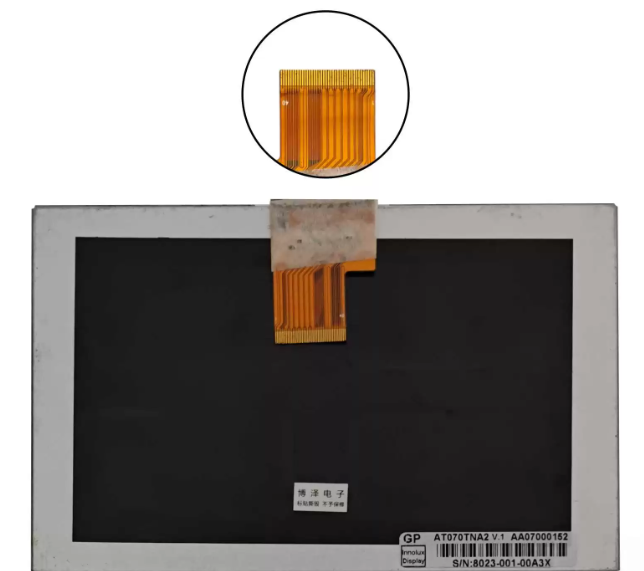

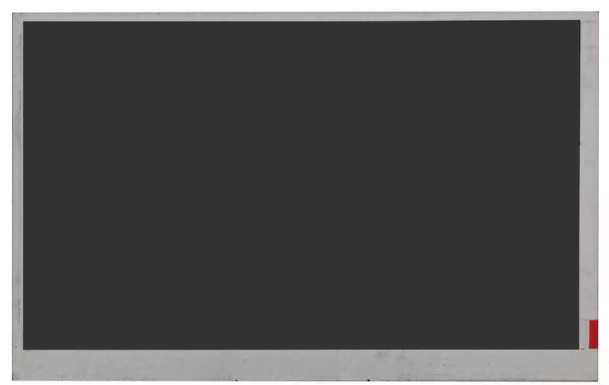

Innolux AT070TNA2-V.1 LCD DISPLAY
Innolux AT070TNA2-V.1 LCD DISPLAY
Innolux AT070TNA2-V.1 LCD DISPLAY
Innolux AT070TNA2-V.1 LCD DISPLAY
Innolux AT070TNA2-V.1 LCD DISPLAY

Innolux AT070TNA2-V.1 LCD DISPLAY

Specification:

  1. Display Size: 7.0 inches (diagonal)

  2. Display Type: TFT LCD, Normally White, Transmissive

  3. Resolution: 800 (RGB) × 480 pixels (WVGA)

  4. Aspect Ratio: 15:9

  5. Brightness: Typically 400 cd/m²

  6. Contrast Ratio: 500:1 (typical)

  7. Viewing Angles (L/R/U/D): 70° / 70° / 50° / 70°

  8. Response Time: ~25 ms

  9. Backlight Type: White LED (edge-lit, long-life)

  10. Interface Type: 24-bit TTL RGB (Parallel)

  11. Surface Treatment: Anti-glare (AG)

  12. Touch Panel: Not included (supports optional touch overlays)

  13. Operating Temperature Range: -20°C to +70°C

  14. Storage Temperature Range: -30°C to +80°C

Non-returnable
₹6,440.00 ₹10,000.00
