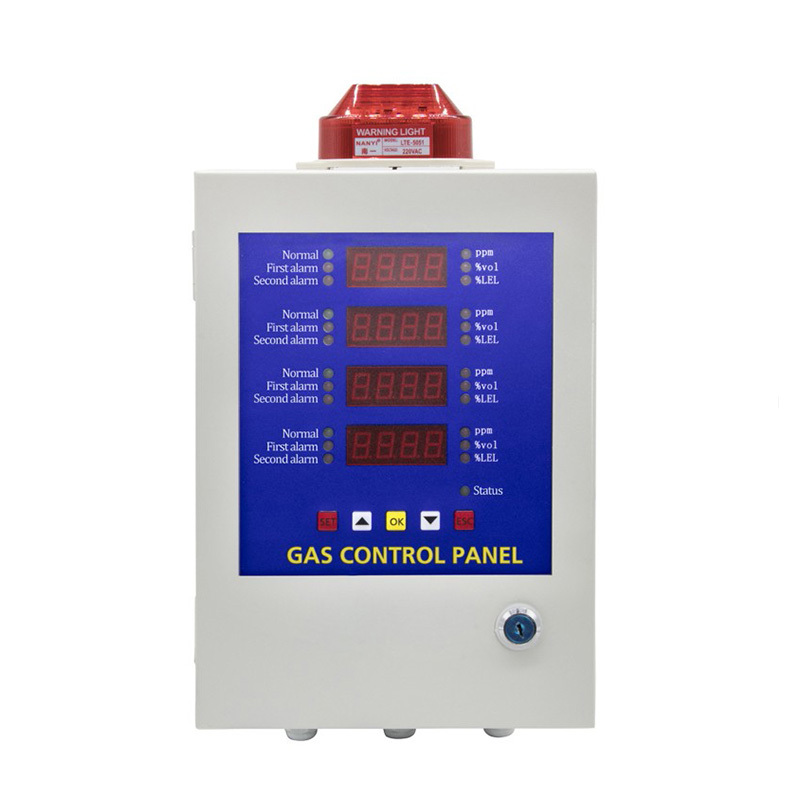

Product Type & Channels: BH-50 Gas Control Panel, available in single, two, or four-channel configurations.
Power & Consumption: AC 220V ±10%, 50Hz, power consumption ≤10W.
Signal Input & Output: Accepts 4–20mA and RS485 inputs; single output supports two RS485 lines (MODBUS), free contact output max 1kW.
Operating Conditions: Works in -10℃~50℃ temperature, 0–95%RH (non-condensing).
Design & Installation: Wall-mounted with compact dimensions 380×210×80mm (L×W×H).
Non-returnable
₹40,000.00
Available Offer
Share :
Product Details
The product offers high stability, delivering high accuracy and intelligent performance for reliable gas monitoring applications. It features multiple external control ports, allowing users to freely select the type of connected transmitter and choose the appropriate access port configuration according to their specific requirements.
We also provide gas detector OEM/ODM services to support customized solutions and project needs.
