Technical Specifications

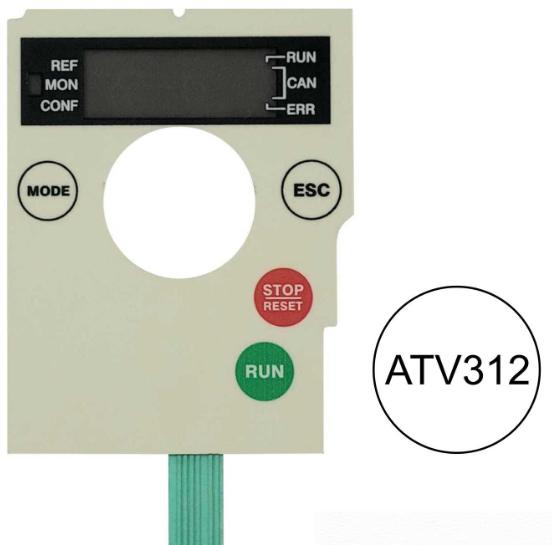

Product Type: Drive Controller Keypad Overlay
Compatible Model:Schneider Altivar ATV312 Series (Variable Frequency Drive – VFD)
Material:
Overlay Film: High-durability polyester (PET) membrane
Surface Coating: Anti-scratch, chemical-resistant protective layer
Key Configuration:
Function-specific layout includes:
Run, Stop/Reset, Escape, Enter
Navigation Arrows (Up/Down/Left/Right)
Menu selection and parameter access keys
Matches original keypad layout for plug-and-play usability
Mounting Type:

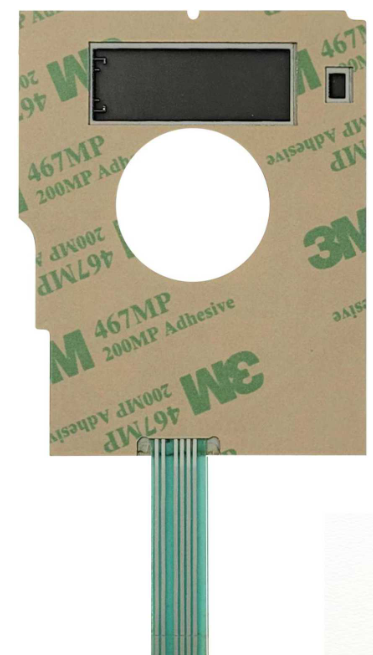

Peel-and-stick adhesive backing
Secure attachment over existing interface without disassembly
Tactile Feedback:
Responsive and well-defined key zones
Embossed or flat keys with clear actuation feel (dome-compatible)
Environmental Resistance:
Temperature: Operating -20°C to +70°C
Chemical Resistance: Resistant to lubricants, oils, and industrial cleaners
Ingress Protection (with proper sealing): Up to IP54–IP65 depending on installation
Durability:
1 million keypresses per button
UV-stable graphics for indoor/outdoor use
