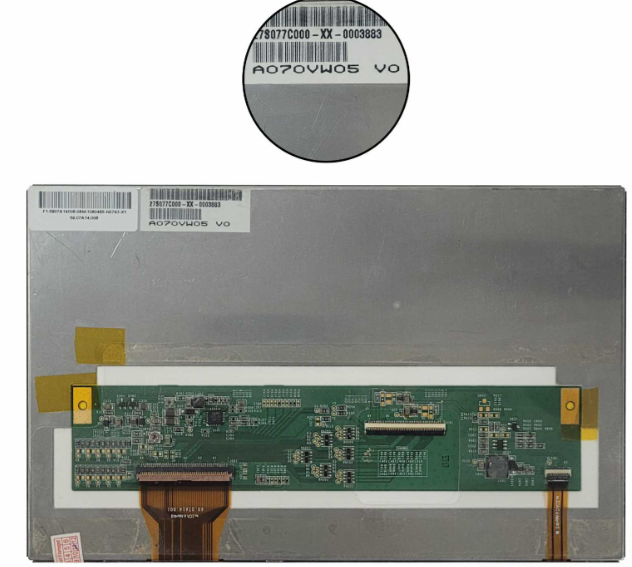

AUO A070VW05-V.0 LCD DISPLAY

The AUO A070VW05-V.0 LCD Module (A070VW05V.0) is 7.0″ WVGA TFT-LCD Module offers a balance of performance and durability, ideal for embedded applications and industrial settings. With a resolution of 800 x 480 and a 133 PPI, it ensures clear visuals across its 152.4 x 91.44 mm active area. Its compact 165 x 104 x 5.77 mm outline is well-suited for integration into space-constrained devices.

With a luminance of 375 cd/m² and a 500:1 contrast ratio, this display provides good visibility in most lighting conditions, while its antiglare coating reduces reflections, making it suitable for environments with varying light levels. The display also boasts wide viewing angles of 70° horizontally and 70° vertically (with a 45° viewing angle in the vertical direction, CR≥10), ensuring consistent clarity from multiple viewing positions. The panel operates in a TN (Twisted Nematic) mode with a normally white, transmissive configuration. Its response time is 12 ms (rise) and 18 ms (fall), ensuring smooth transitions for most static or low-motion content.

Powered by 3.3V, it connects via a 40-pin parallel RGB interface, providing flexibility for embedded system integration. The WLED backlight ensures longevity, rated for a lifetime with an integrated LED driver. The module operates in temperatures ranging from -20°C to 70°C and stores from -30°C to 80°C, making it suitable for rugged environments.
