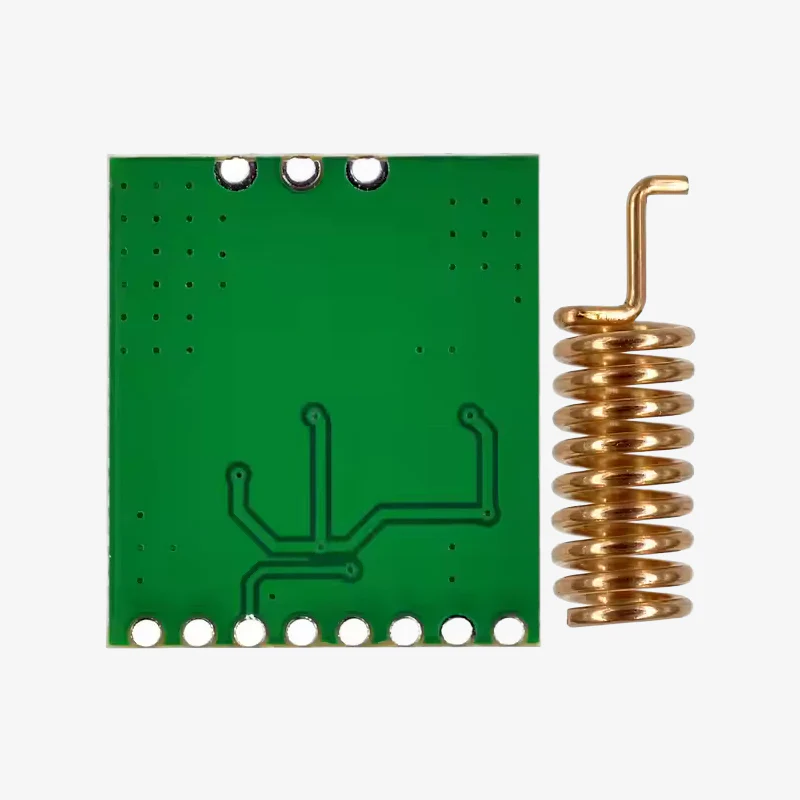

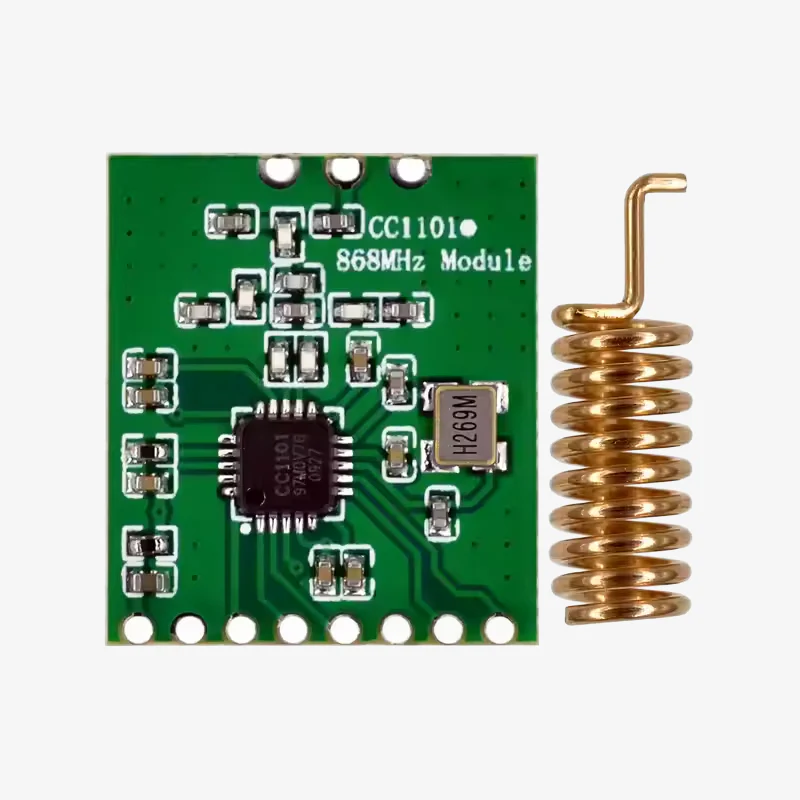

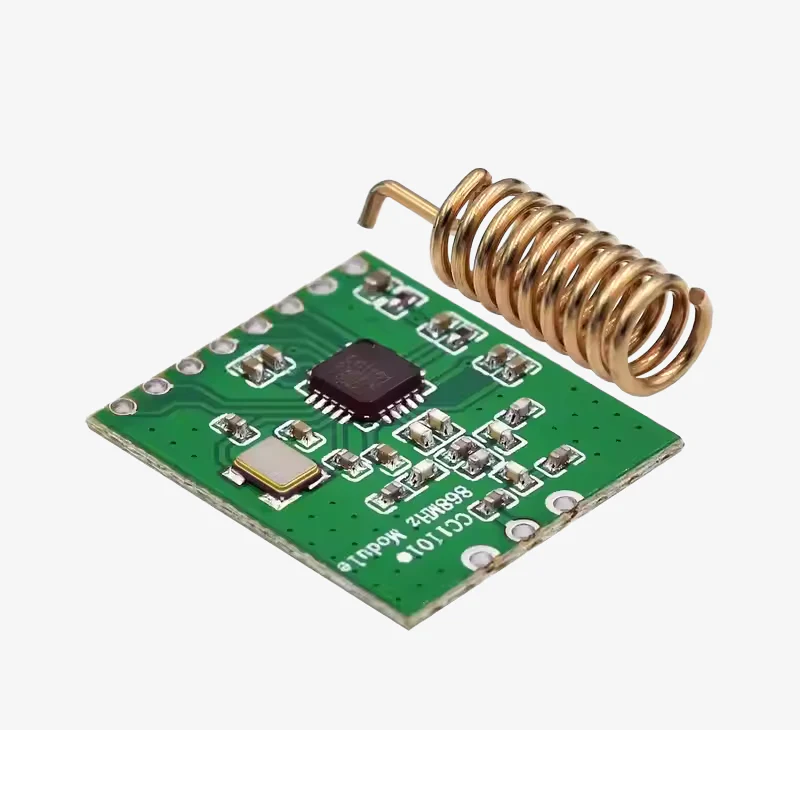

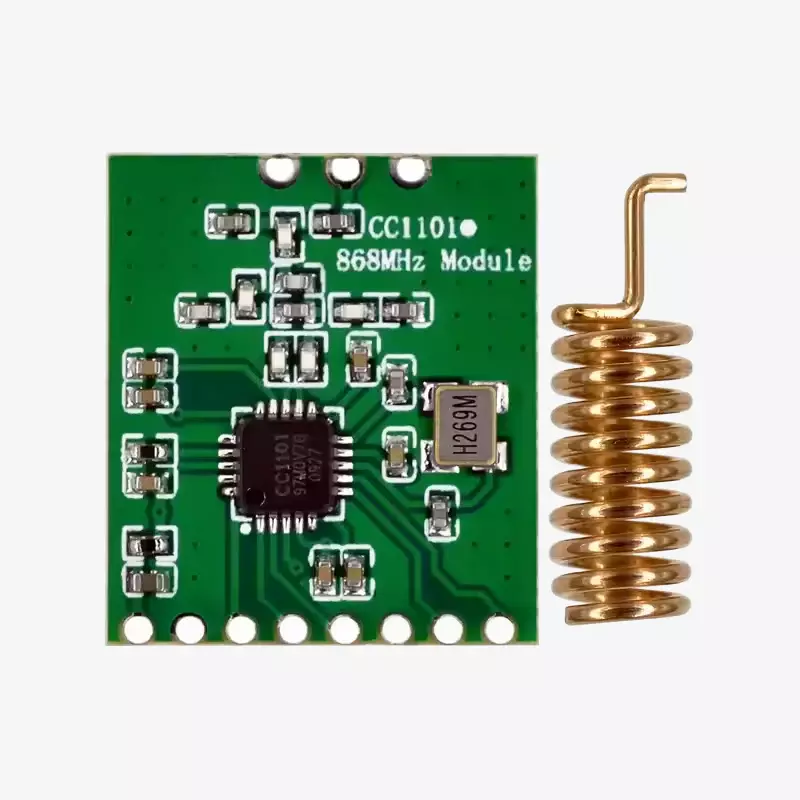

      RF AND WIRELESS MODULEWIRELESS MODULE CC1101 868MHZ Wireless Transceiver Module
      CC1101 868MHZ Wireless Transceiver Module
      CC1101 868MHZ Wireless Transceiver Module
      CC1101 868MHZ Wireless Transceiver Module
      CC1101 868MHZ Wireless Transceiver Module

      CC1101 868MHZ Wireless Transceiver Module

      Specifications:
      1. Chipset: TI CC1101
      2. Frequency Range: 868 MHz (also supports 315/433/915 MHz with proper configuration)
      3. Modulation: 2-FSK, GFSK, ASK, OOK, MSK
      4. Data Rate: 0.6–500 kbps
      5. Output Power: −30 to +10 dBm (programmable)
      6. Receiver Sensitivity: Up to −116 dBm
      7. Power Supply Voltage: 1.8 V to 3.6 V (typ. 3.3 V)
      8. Interface: SPI (up to 10 MHz)
      9. Operating Current (TX): ~14–21 mA at +10 dBm
      10. Operating Current (RX): ~15 mA
      11. Sleep Current: <1 µA
      12. Antenna Interface: U.FL or onboard PCB antenna
      13. Operating Temperature: −40°C to +85°C
      14. Dimensions: ~17 mm x 25 mm (varies slightly by vendor)
      15. Applications: Home automation, remote control systems, wireless metering, alarm systems, industrial telemetry

      Non-returnable
      ₹300.00 ₹400.00
      Product Details

      The CC1101 is a low-power, highly integrated RF transceiver module operating in the 868 MHz ISM band. It is widely used for wireless communication in remote sensing, home automation, industrial control, and telemetry systems. The module offers excellent sensitivity, programmable output power, and low current consumption, making it suitable for battery-operated devices. Designed with an SPI interface, it is easy to integrate with Arduino, STM32, ESP32, and other microcontrollers.

      🔹 Features:
      • Low-power 868 MHz RF transceiver
      • Based on TI’s CC1101 chipset
      • SPI interface for easy microcontroller integration
      • Supports FSK, GFSK, OOK, and ASK modulation
      • Low current consumption in both RX and TX modes
      • Programmable output power up to +10 dBm
      • Excellent sensitivity up to −116 dBm
      • Compact design with onboard U.FL antenna interface (some versions include PCB antenna)
      • Widely used in wireless sensor networks, remote controls, and telemetry applications
