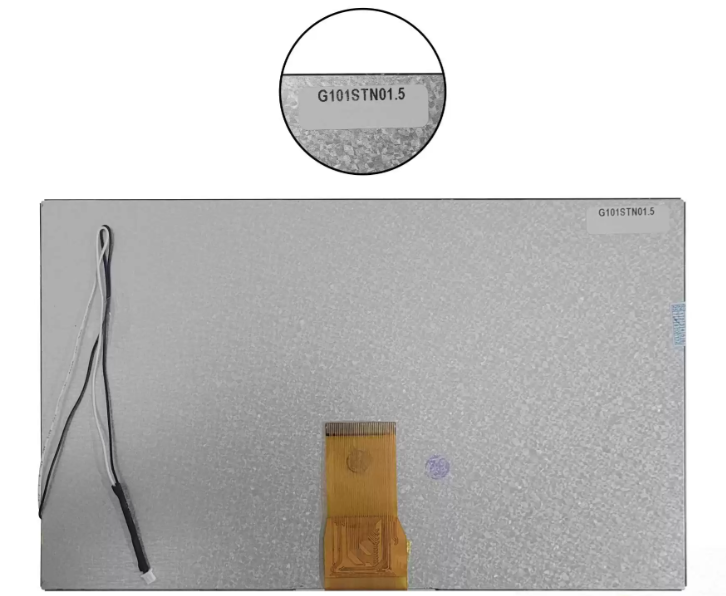

AUO G101STN01.5 LCD DISPLAY

The AUO G101STN01.5 LCD Module is a high-performance 10.1-inch a-Si TFT-LCD module, ideal for industrial display applications requiring durability and clarity. With a resolution of 1024×600 (WSVGA) and a pixel density of 117 PPI, this panel delivers sharp, vibrant visuals. Its RGB vertical stripe format, 350 cd/m² brightness, and 500:1 contrast ratio ensure excellent image quality in various lighting conditions.

Built for consistent performance, the module features a TN, normally white, transmissive display mode with a fast response time of 7/9 ms (Tr/Td). It provides wide viewing angles of 70/70/60/60 degrees (L/R/U/D) and supports up to 16.7 million colors. The anti-glare surface with a 3H hard coating adds durability, making it perfect for rugged industrial use.

This panel includes a 50-pin FPC interface with 3.3V input voltage and WLED backlighting (15K hours lifespan). With a compact outline size of 235×143×5.5 mm and a max weight of 340g, it is both efficient and space-saving.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
