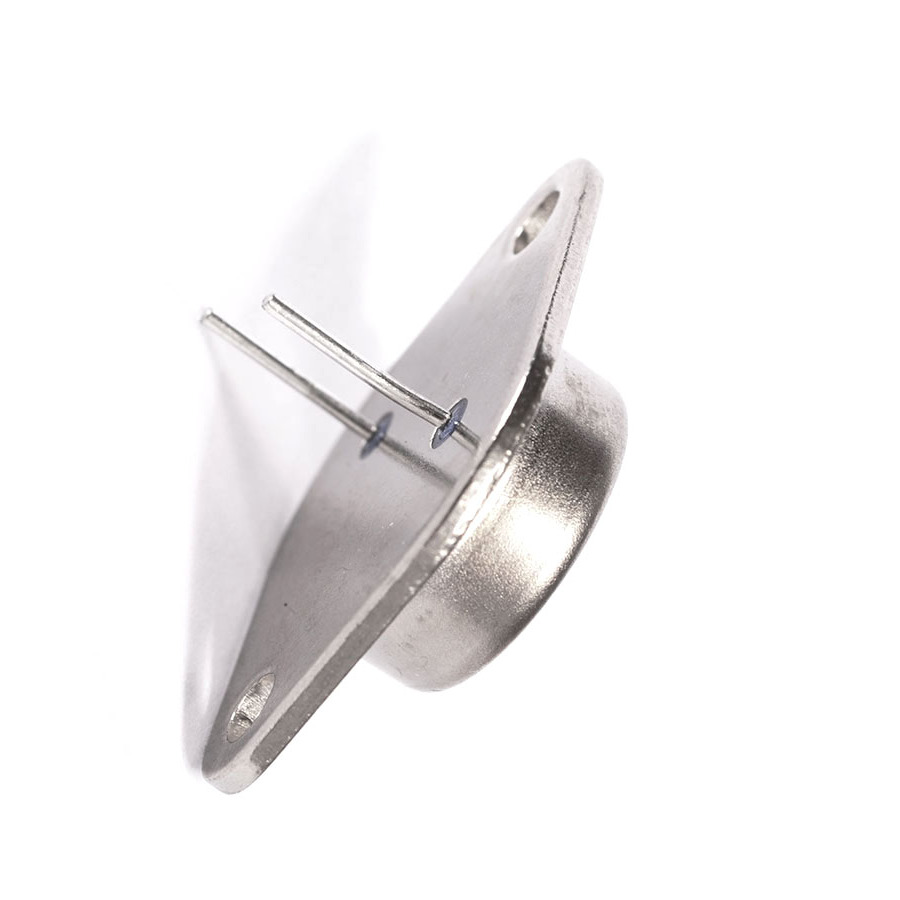

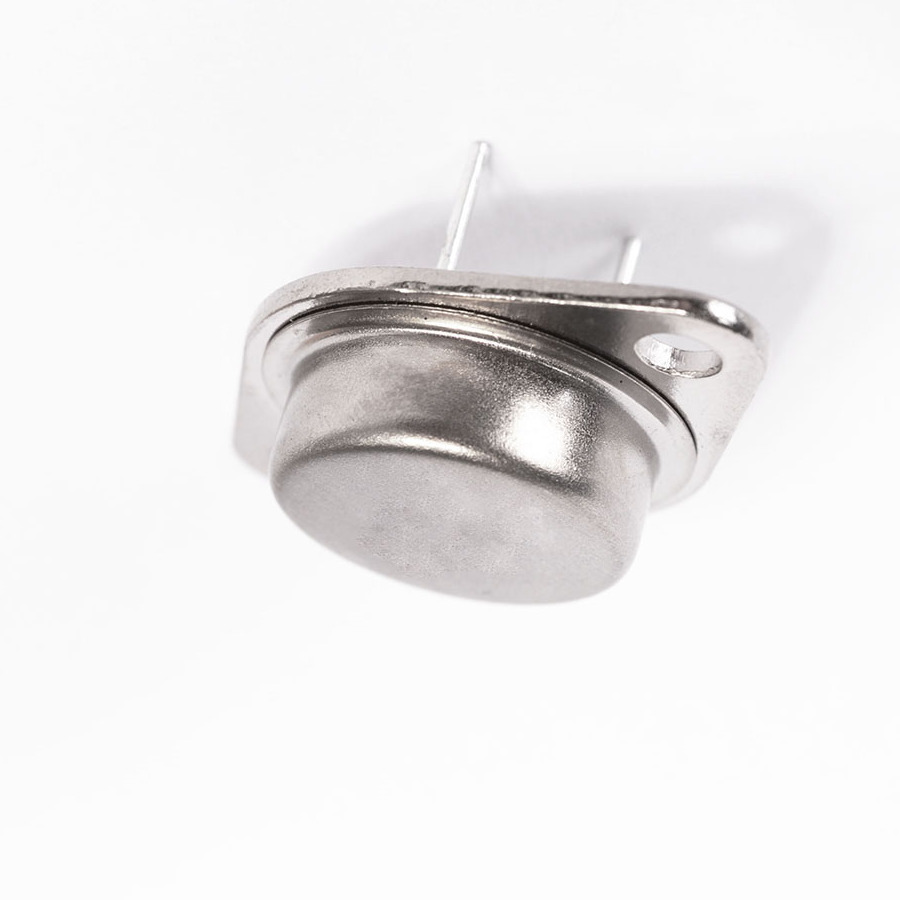

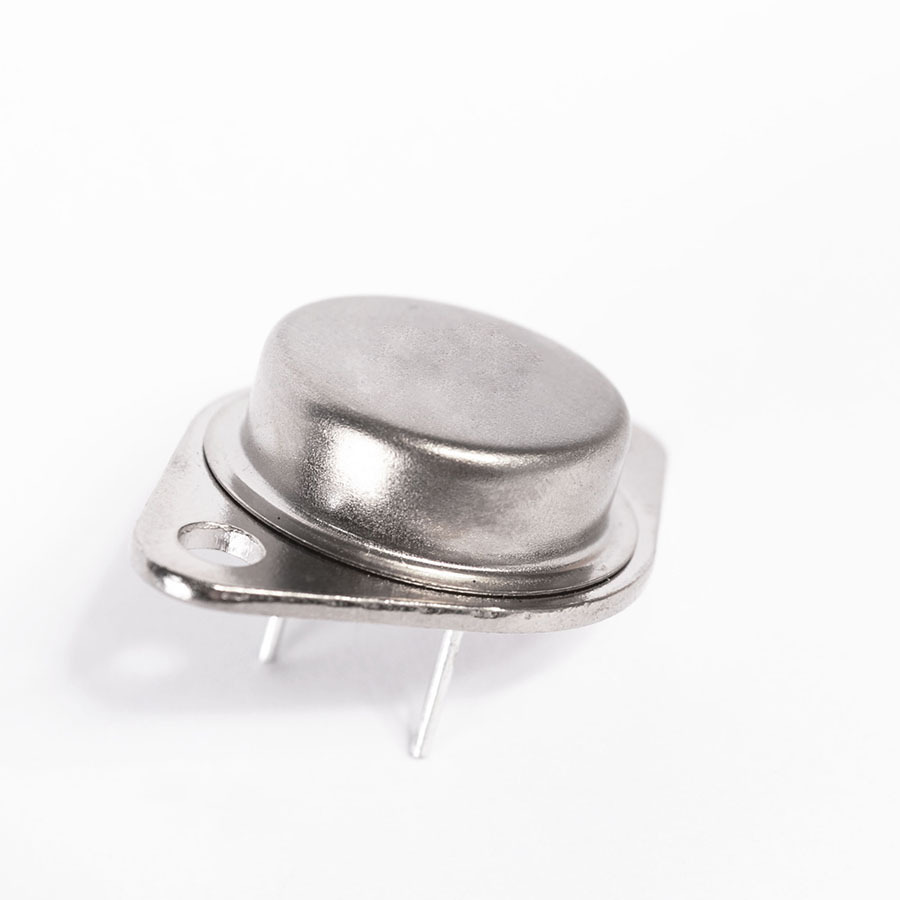

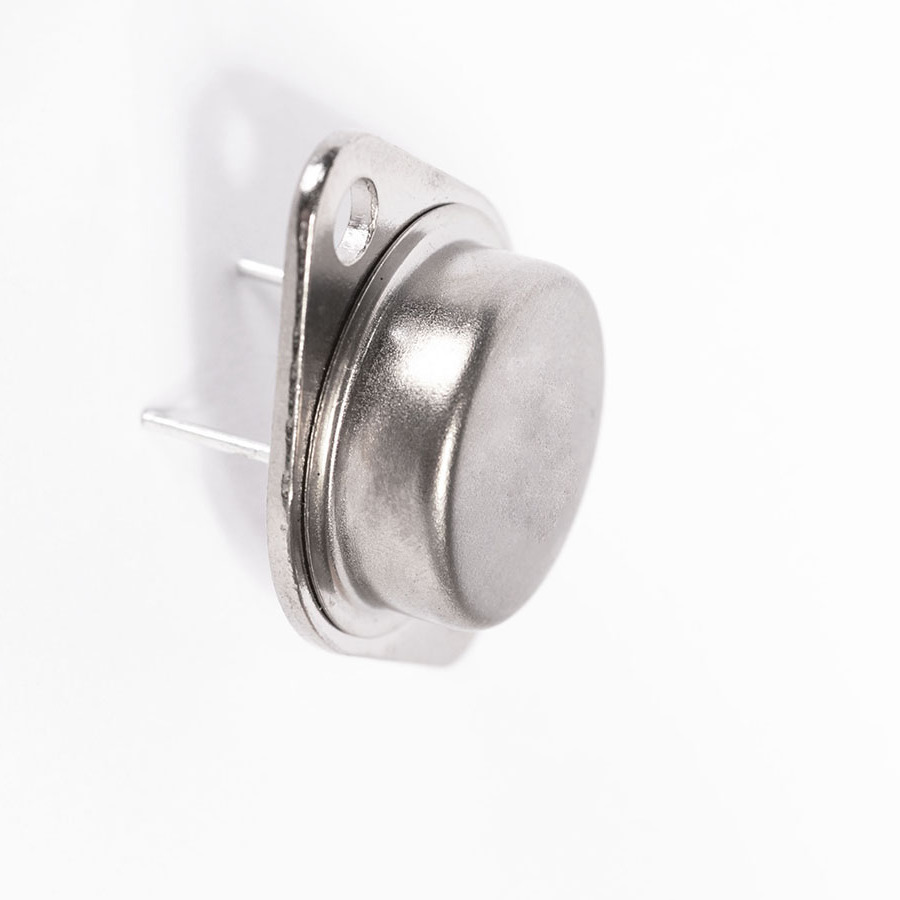

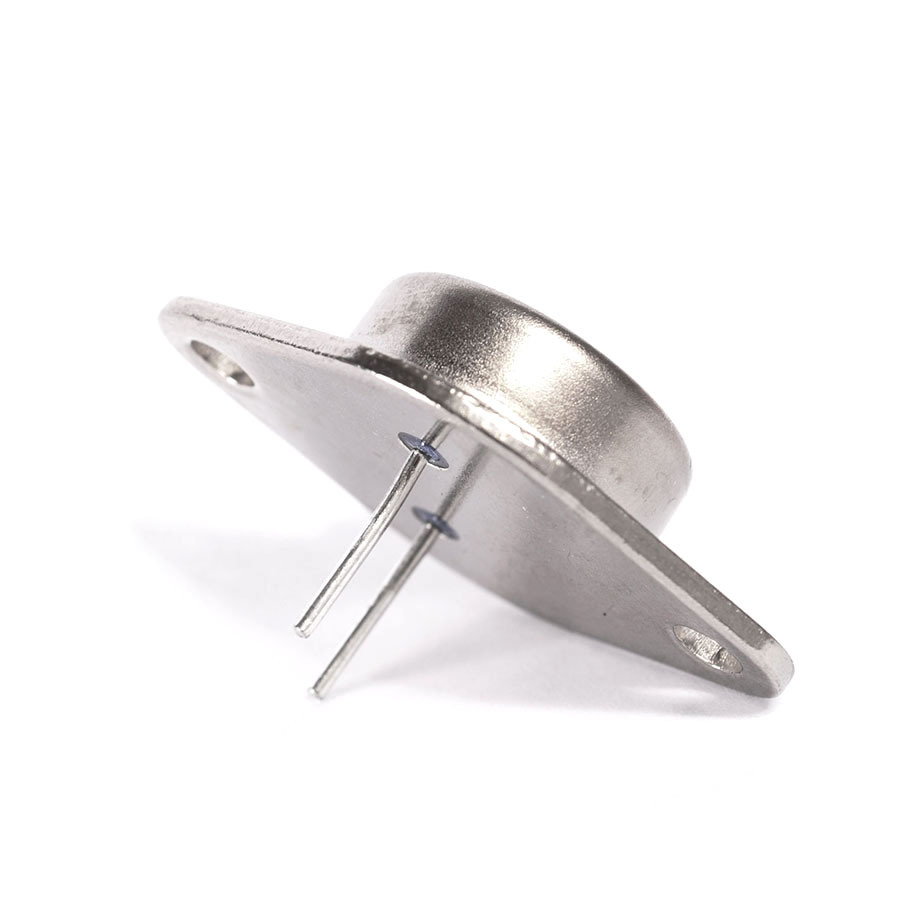

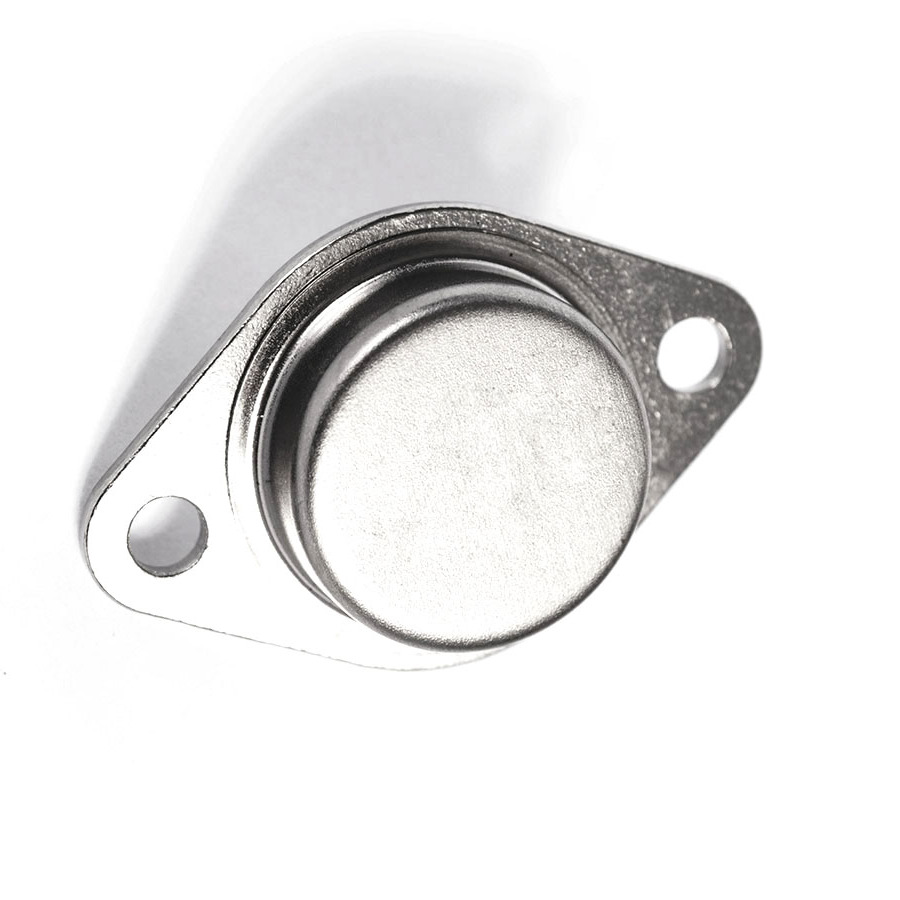

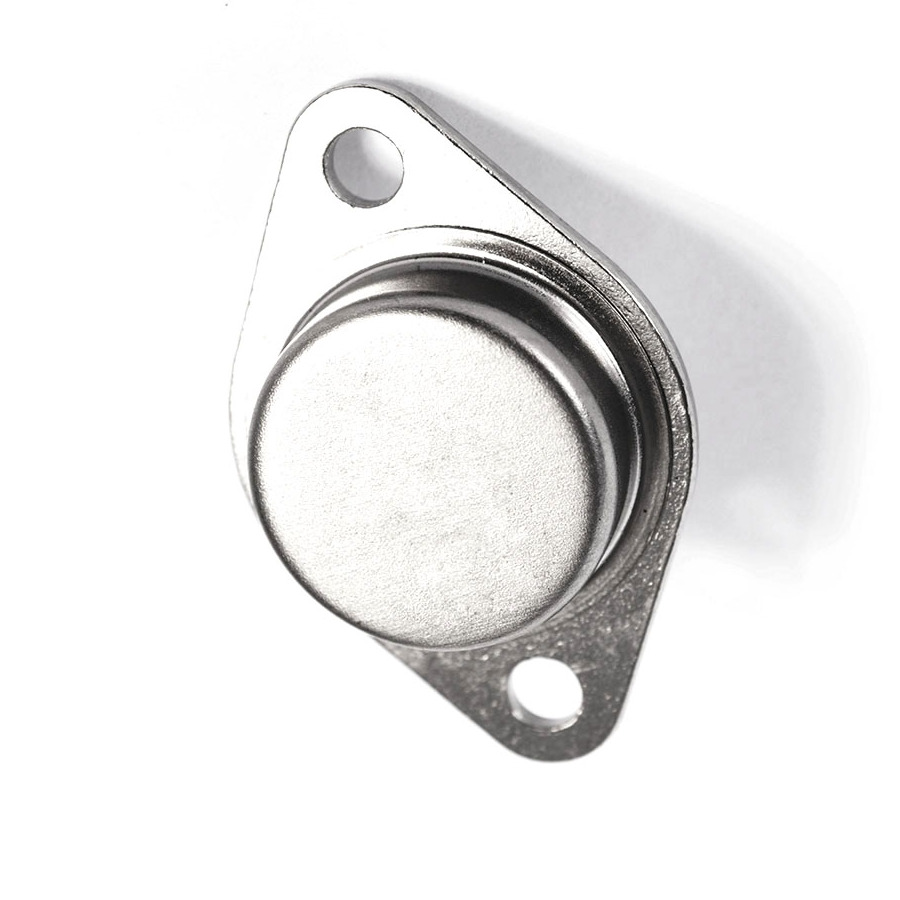

Specifications
Collector–Base Voltage (VCBO): 500 V
Collector–Emitter Voltage (VCEO): 400 V
Emitter–Base Voltage (VEBO): 5 V
Collector Current (IC): 15 A continuous, 30 A peak
Base Current (IB): 1 A continuous, 5 A peak
Power Dissipation (Ptot): 175 W at TC = 25 °C
Junction Temperature (Tj): up to 150 °C
Thermal Resistance Junction-to-Case (RthJC): 1 °C/W
Collector-Emitter Saturation Voltage (VCE(sat)): 1.6 V @ IC = 7 A, up to 1.8 V @ IC = 10 A
Base-Emitter Saturation Voltage (VBE(sat)): 2.2 V typical @ IC = 7 A
DC Current Gain (hFE): approx. 300 @ IC = 5 A, VCE = 10 V
Operating Temperature Range: –65 °C to +150 °C
