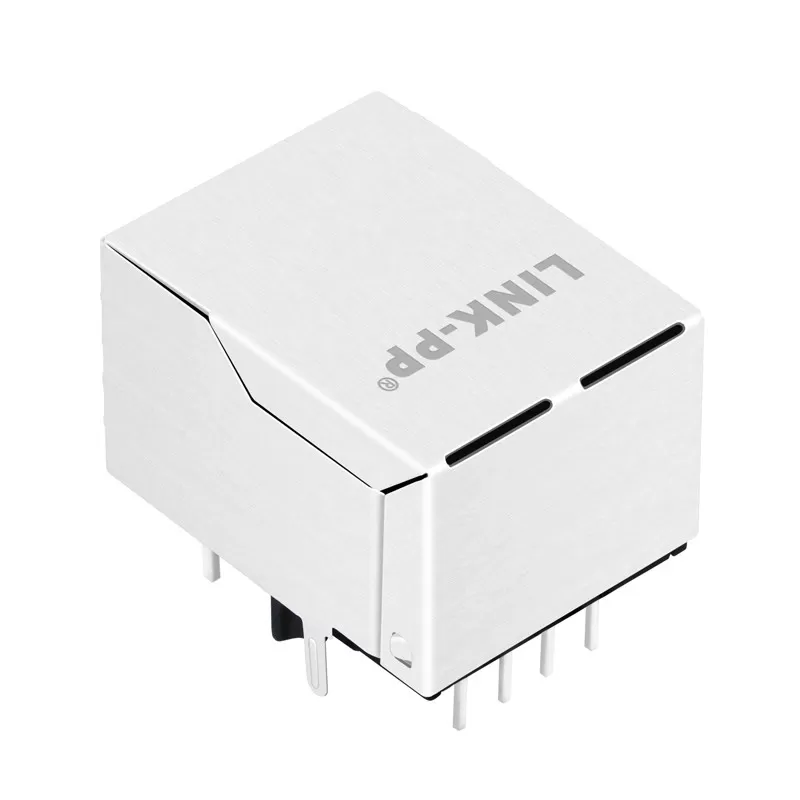

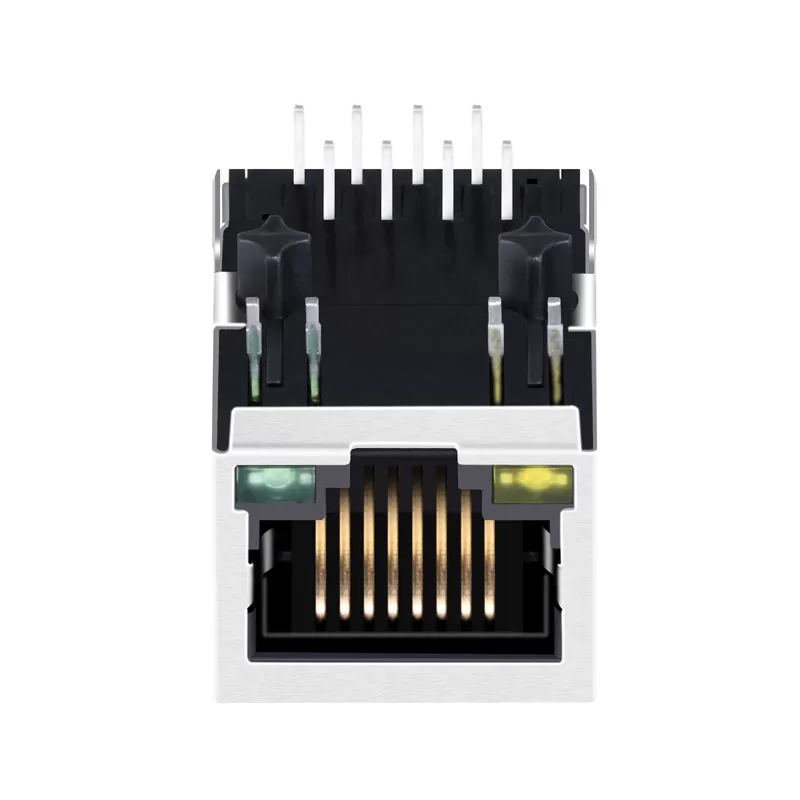

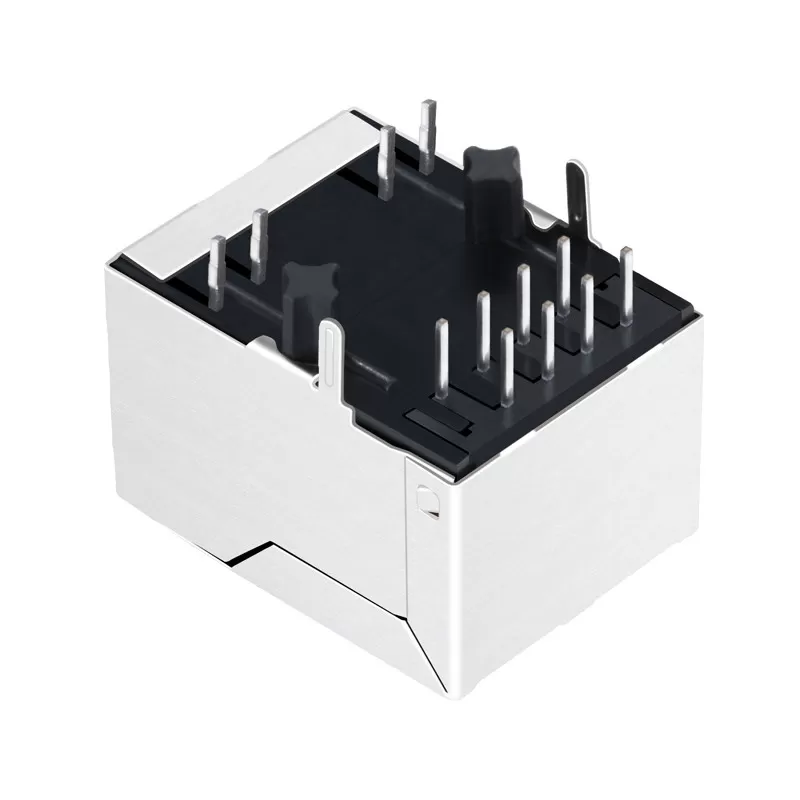

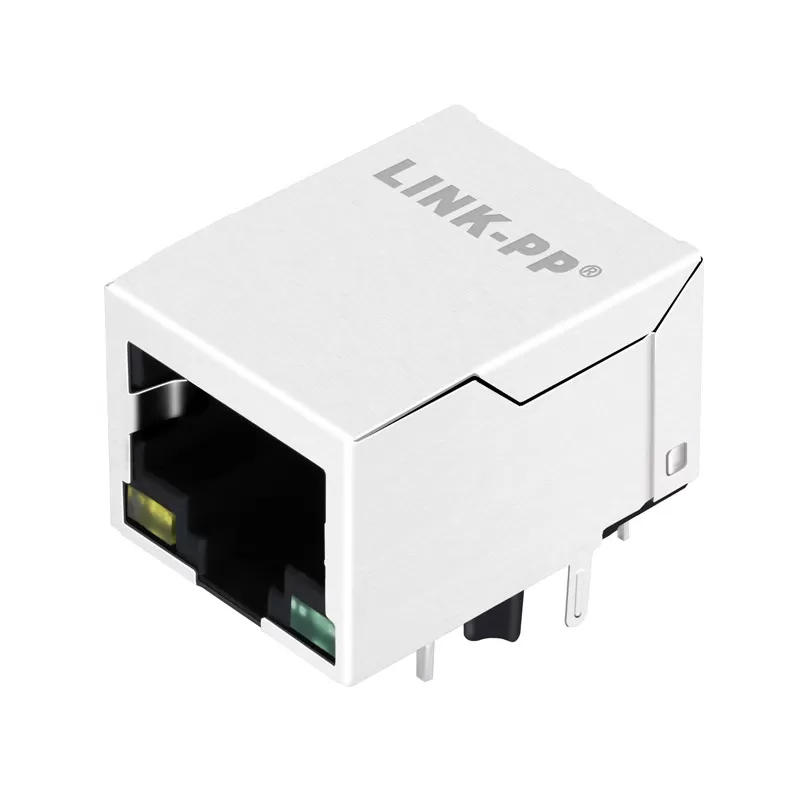

RJLB-055TA1 1 Port Tab Down Ethernet Cable Connector RJ45 Modular Jack LPJ4012FDNL
Specifications:
Connector type: 8-position, 8-contact (8P8C) modular jack
Orientation: Tab-down
Data rate: 10/100/1000 Mbps (Gigabit Ethernet)
Contact plating: Gold over nickel
PIN termination: Through-hole PCB solder pins
Shielding: Full metal can with grounding tabs
Mating durability: ≥750 insertion cycles
Operating temperature: –40 °C to +85 °C
Dielectric withstand voltage: 1500 VAC
Insulation resistance: ≥1000 MΩ @500 VDC
Dimensions (approx.): Height ~12 mm; footprint per industry standard
Non-returnable
₹700.00 ₹1,000.00
Share :
Product Details
The RJLB‑055TA1 (LPJ4012FDNL) is a single-port RJ45 ethernet connector featuring a tab-down orientation. It is designed for compact PCB integration in networking equipment, embedded systems, and industrial devices requiring space-efficient Ethernet connectivity. The integrated chassis provides mechanical support and EMI shielding.
Features:
Tab‑down orientation for low-profile PCB layout
Shielded metal housing for EMI protection
Single-port RJ45 interface with integrated magnetics options
High-speed data support up to Gigabit Ethernet
Durable contacts rated for numerous mating cycles
PCB-mountable with through-hole pins and grounding tabs
Industry-standard footprint for easy replacement
