      RF AND WIRELESS MODULEGPS MODULES 25x25x8mm 28db High Gain 5cm Length Built-in Ceramic Active GPS Antenna for NEO-6M NEO-7M NEO-8M

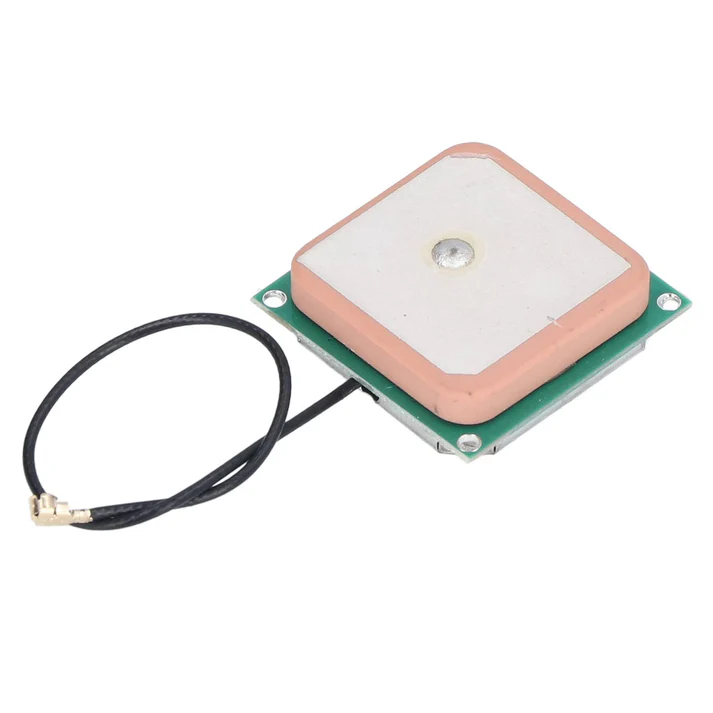

      25x25x8mm 28db High Gain 5cm Length Built-in Ceramic Active GPS Antenna for NEO-6M NEO-7M NEO-8M

      25x25x8mm 28db High Gain 5cm Length Built-in Ceramic Active GPS Antenna for NEO-6M NEO-7M NEO-8M

      Specifications:
      1. Frequency Range: 1575.42 MHz (GPS L1 band)
      2. Gain: 28 dB (typical, including LNA)
      3. VSWR: ≤ 2.0
      4. Polarization: Right-Hand Circular Polarization (RHCP)
      5. Impedance: 50 Ω
      6. Noise Figure: ≤ 1.5 dB
      7. Power Supply: 2.7 V to 5.5 V (via GPS module)
      8. Current Consumption: ~10–15 mA
      9. Connector Type: IPEX / U.FL
      10. Cable Length: 5 cm (RG174 coaxial)
      11. Antenna Dimensions: 25 mm × 25 mm × 8 mm
      12. Weight: ~10 grams

      Non-returnable
      ₹113.00 ₹120.00
      Product Details

      This is a compact, high-performance active GPS antenna designed specifically for modules such as NEO-6M, NEO-7M, and NEO-8M. With a built-in ceramic patch, LNA (Low Noise Amplifier), and a high-gain output of 28 dB, it ensures strong satellite signal reception even in low-signal environments. The compact 25×25×8mm form factor and 5 cm RG174 cable with IPEX/U.FL connector make it suitable for tight enclosures in GPS tracking, navigation systems, and embedded IoT devices.

      Features:
      - Built-in active ceramic patch antenna for enhanced GPS signal reception
      - High gain of 28 dB with integrated LNA
      - Compact size: 25mm × 25mm × 8mm
      - 5 cm RG174 cable with IPEX (U.FL) connector for direct PCB connection
      - Compatible with u-blox NEO series (NEO-6M / NEO-7M / NEO-8M)
      - Designed for embedded GPS applications, drones, vehicle tracking, smart navigation, and wearables
