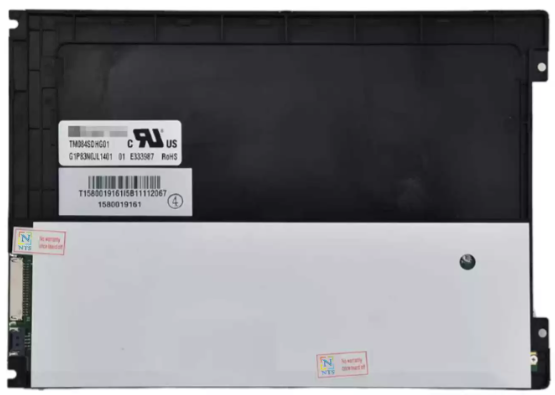

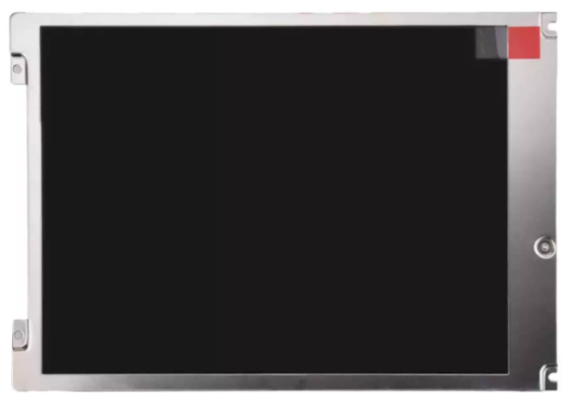

Tianma TM084SDHG01 LCD display

The Tianma TM084SDHG01 LCD Module is an 8.4-inch TFT-LCD display featuring a high resolution of 800(RGB)×600 (SVGA) with a pixel density of 119 PPI. It has an active area of 170.4 mm by 127.8 mm within a slim 203 mm by 142.5 mm by 6.2 mm outline. This a-Si TFT-LCD panel operates in TN Normally White Transmissive mode, providing clear images with a typical brightness of 250 cd/m² and a contrast ratio of 500:1. The response time is 25 ms (Tr+Td), supporting smooth transitions. It offers viewing angles of 70°/70°/60°/70° (L/R/U/D) with 262K to 16.7M color support and covers 50% NTSC color gamut. The display uses a 20-pin LVDS interface (1 channel, 6/8-bit) running at 60Hz and is powered by a 3.3V supply. The backlight system consists of a 9S3P WLED array with an integrated LED driver, rated for 50,000 hours of operation. It includes an antiglare treatment for enhanced readability and operates reliably between -20°C and 70°C, with storage temperatures ranging from -30°C to 80°C.
