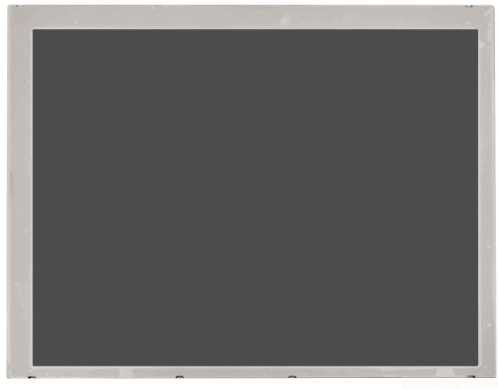

This 7.5-inch TFT active matrix color LCD module is engineered for precision visual output in professional and industrial applications. Offering a 640 x 480 pixel (VGA) resolution, it delivers clear and vibrant images ideal for user interfaces in embedded systems, control panels, and diagnostic equipment.
With a brightness level of approximately 450–550 cd/m² and a contrast ratio around 500:1, the display provides excellent readability in both well-lit and low-light environments. Its wide horizontal and vertical viewing angles ensure optimal visibility from multiple perspectives, making it suitable for collaborative or multi-angle setups.
The display features an 18-bit RGB parallel data input interface, supporting smooth integration with embedded platforms and microcontroller-based systems. A long-life white LED backlight ensures extended operational life and consistent brightness over time.
Built to perform reliably in harsh environments, this module operates within a wide temperature range of -20°C to +70°C, and can be stored safely between -30°C and +80°C. Its robust and compact design, combined with low power consumption, makes it a preferred choice for industrial, medical, and automotive embedded applications.
