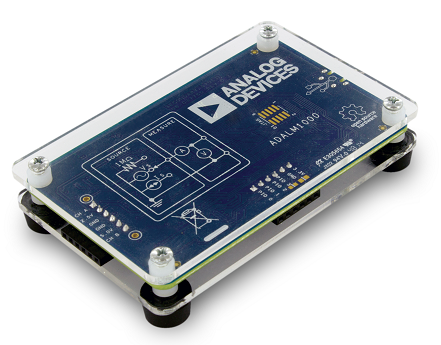

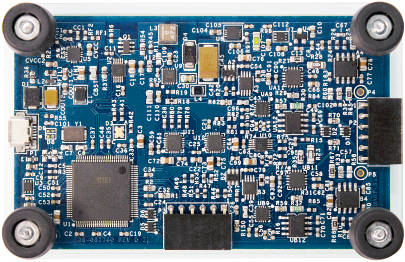

ADALM1000

The ADALM1000 is a compact, USB-powered, dual-channel source-measurement unit (SMU) and oscilloscope designed by Analog Devices for educational and experimental electronics. Each of its two analog channels can act as both a voltage/current source and a measurement device, allowing for real-time analysis of electronic circuits. This module is ideal for students, educators, and engineers looking for a portable and capable analog test platform.

• Dual-channel analog interface (can source and measure simultaneously)

• 16-bit resolution with 100 kS/s sampling rate per channel

• 0 to 5 V voltage range, with ±200 mA current sourcing/sinking capability

• Built-in 2.5 V and 5 V regulated supply outputs

• 4 digital I/O lines for general-purpose use

• USB-powered and compact, ideal for portable labs

• Supports waveform generation, voltage/current logging, impedance measurement

• Open-source hardware and software with support for Python, MATLAB, and C

• Suitable for circuit education, sensor testing, analog prototyping, and more
