AUO G104SN03-V.1 LCD DISPLAY

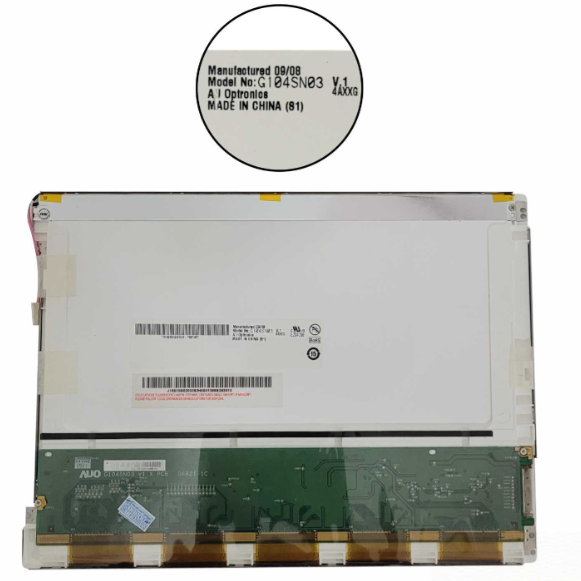

The AUO G104SN03-V.1 LCD Module is a 10.4-inch TFT-LCD panel delivers SVGA resolution of 800(RGB)×600 pixels with a pixel density of 96 PPI. It features an active area of 211.2 mm × 158.4 mm, housed within a compact 236 mm × 174.3 mm × 6 mm frame, making it suitable for space-sensitive industrial applications.

Powered by a-Si TFT-LCD technology, this panel runs in TN mode with a normally white, transmissive design. Its antiglare finish and 3H hard coating improve durability and readability under ambient light.

With a typical luminance of 230 cd/m² and a contrast ratio of 500:1, the display delivers balanced brightness and image clarity. Wide viewing angles of 80° left/right, 60° top, and 80° bottom (CR≥10) support versatile mounting options. Response times are 10 ms (rise) and 20 ms (fall), ensuring stable performance for general applications.

It supports 262K and 16.2 million colors at 45% NTSC, making it suitable for rich visual interfaces. The panel operates at a 60Hz frame rate and communicates via a 20-pin LVDS connector (1-channel, 6/8-bit). It draws power at 3.3V (typical).

The single CCFL backlight offers up to 30,000 hours of life, though an external driver is required. Designed for reliability, this panel functions between -30°C and 80°C, with storage support from -20°C to 70°C.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
