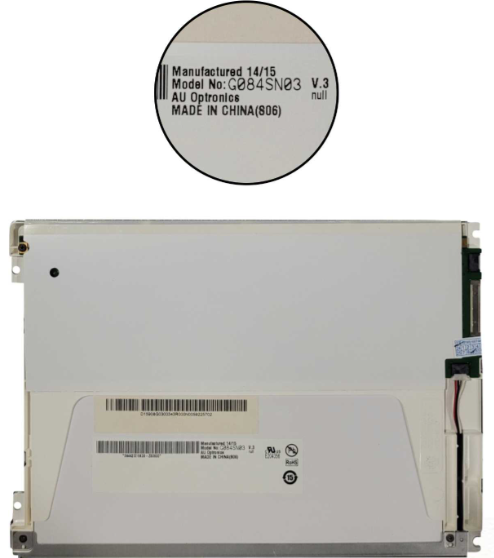

The AUO G084SN03-V.3 is 8.4" TFT-LCD Display offers an 800×600 SVGA resolution providing a 119 PPI pixel density for clear and detailed visuals. With an active area of 170.4 mm (W) × 127.8 mm (H), it delivers ample screen space for various applications. The display's outline dimensions are 203 mm (H) × 142.5 mm (V) × 6.2 mm (D), making it compact and suitable for portable or embedded systems.
The display provides 250 cd/m² of luminance, offering decent brightness for indoor usage. With a contrast ratio of 600:1, it provides vivid, clear visuals, though it may not be as high as some other models with superior contrast ratios. The viewing angles are 80°/80°/80°/60° (typical), ensuring consistent image quality when viewed from different angles, with slight degradation in the lower viewing angle.
The response time is 20 ms (Tr) and 10 ms (Td), ensuring smooth transitions and reducing motion blur. This panel features antiglare treatment and a hard coating (3H), improving durability and reducing reflections. Operating in TN mode, it has 262K to 16.2M color support and a 45% NTSC color gamut.
With a backlight life of 30,000 hours and an integrated LED driver, the display is reliable for long-term usage. It is designed to operate in temperatures from -20°C to 70°C, making it suitable for industrial environments.
Technical Precautions :-
It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
Always turn off the power supply when you are inserting or disconnecting it from the input connector.
Wipe off water drop immediately as it may cause discoloration or spots.
Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
Do not try to open or modify the module assembly.
At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
Severe temperature condition may result in different luminance, response time.
