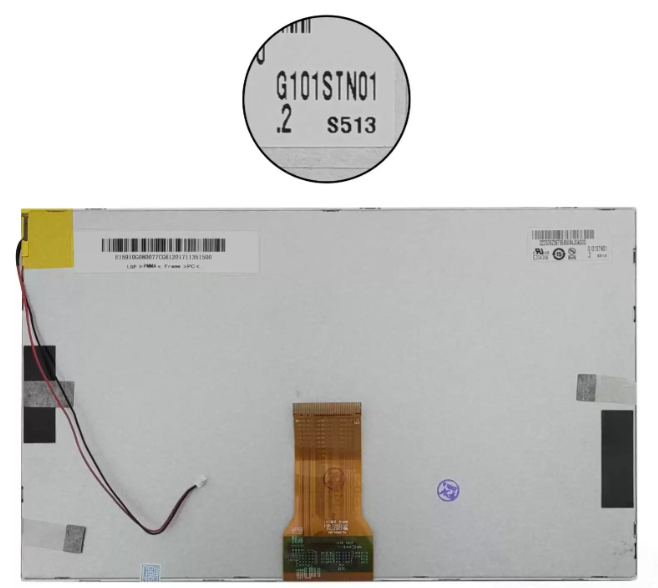

AUO G101STN01.2 LCD DISPLAY

The AUO G101STN01.2 LCD Module (G101STN012) is 10.1" TFT-LCD panel features a 1024×600 WSVGA resolution with 117PPI, offering clear visuals ideal for embedded systems. Its active area is 222.72 mm (W) × 125.28 mm (H), making it suitable for compact display needs.
The display uses a-Si TFT-LCD technology and operates in TN, Normally White, Transmissive mode, ensuring efficient performance.
With a luminance of 350 cd/m² and a contrast ratio of 500:1, the screen delivers good visibility under moderate lighting, though it is optimized for direct viewing. The viewing angles (70/70/60/60° at CR≥10) offer acceptable clarity in most environments. Supporting 262K/16.7M colors and 45% NTSC, it provides adequate color accuracy for many applications.

The panel features antiglare and 3H hard coating for durability. It connects through a TTL signal interface (1 ch, 6/8-bit) with a 50-pin FPC connector. The 8S3P WLED backlight ensures a lifespan of 30,000 hours, and it operates at 3.3/10.0/18.0/-8.0V. Built for environments with temperatures between -10 to 60°C for operation, it’s perfect for embedded and portable applications.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module it may damage the panel.

• Severe temperature condition may result in different luminance, response time.
