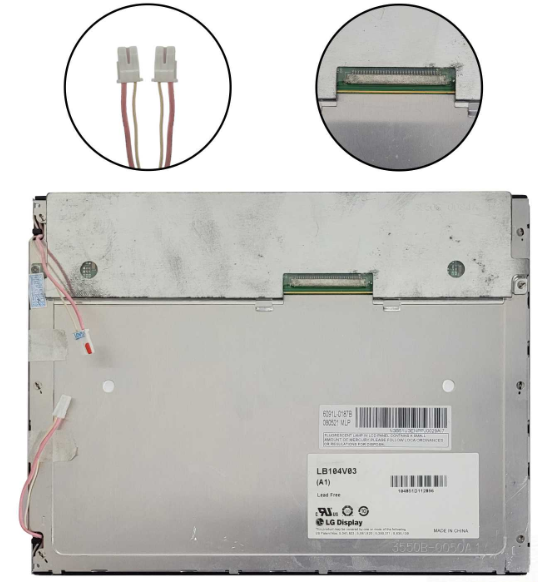

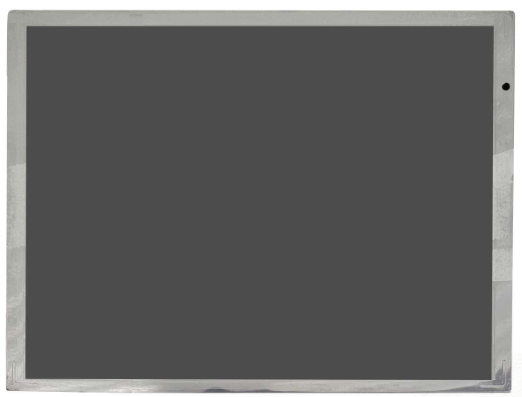

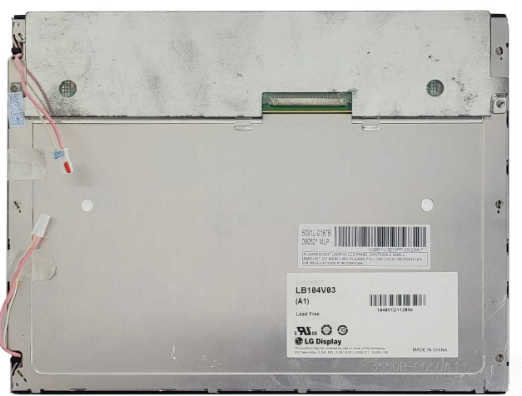

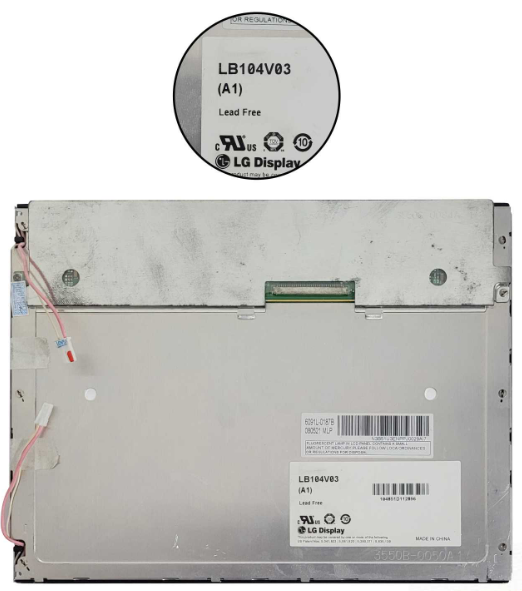

LG.Philips LB104V03-A1 LCD display

The LG.Philips LB104V03-A1 is a 10.4-inch a-Si TFT-LCD panel engineered for industrial applications requiring ruggedness, clarity, and long-term reliability. Delivering a resolution of 640×480 (VGA) with a pixel density of 76 PPI, it offers sharp and legible visuals suitable for control systems, test equipment, and HMI displays.

The active area measures 211.2 × 158.4 mm, framed within a robust module treated with an anti-glare surface and a 3H hard coating, providing enhanced scratch resistance and glare reduction—ideal for factory floor environments or field operations.

It provides a brightness of 400 cd/m² and a 300:1 contrast ratio, producing crisp imagery and readable graphics in moderately lit environments. The panel adopts TN (Twisted Nematic) technology, operating in a normally white, transmissive mode, which offers stable visual performance under typical lighting conditions.

Supporting 262K colors through a 6-bit RGB parallel interface, the display connects via a 30-pin connector, running at a standard 60Hz refresh rate. It operates on a 3.3V power supply, ensuring energy-efficient performance across embedded systems.

The backlight system features two CCFL lamps, rated for up to 40,000 hours of service life (LED driver not included), ensuring long-term usability with consistent brightness.

Designed for reliable operation between 0°C to 50°C, and weighing approximately 490g, the LB104V03-A1 is a solid choice for demanding industrial environments that require both durability and display clarity.
