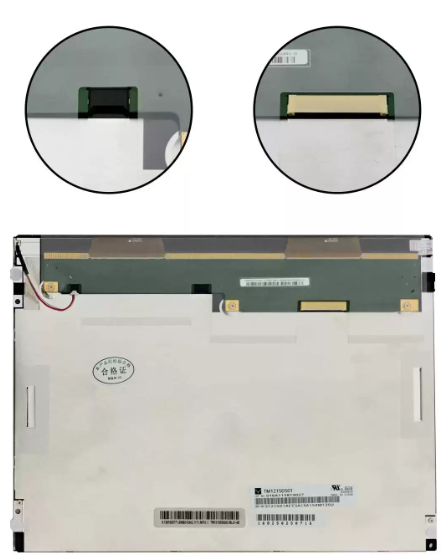

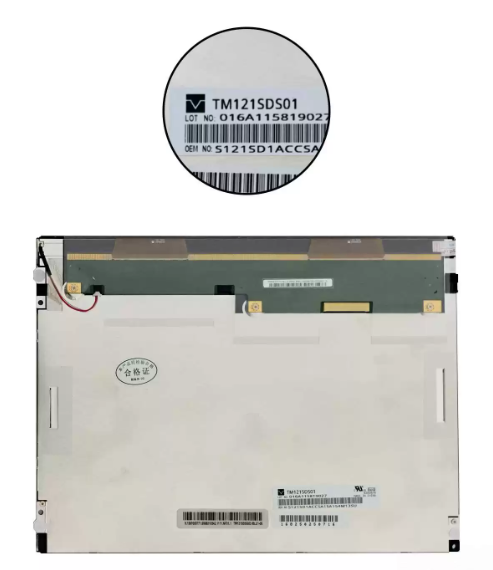

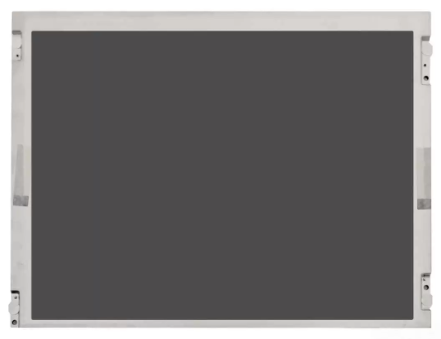

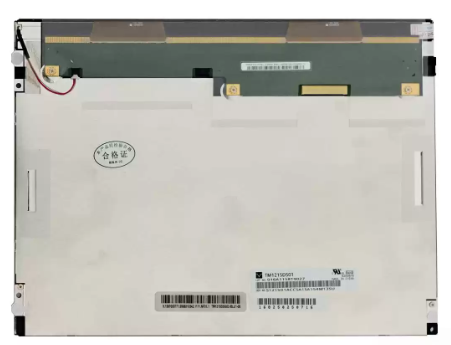

Tianma TM121SDS01 LCD display

The Tianma TM121SDS01 LCD Module is a 12.1″ display that offers an SVGA resolution of 800×600 pixels, with a pixel density of 82 PPI, providing clear and sharp visuals. The active area measures 246 mm (W) × 184.5 mm (H), while the outline dimensions are 279 mm (W) × 209 mm (H) × 9.3 mm (D), making it suitable for medium-sized applications.

With a luminance of 450 cd/m², it ensures bright and vibrant display performance, even in well-lit environments. The contrast ratio of 700:1 enhances clarity by distinguishing light and dark areas. Additionally, the viewing angles of 80/80/65/75 degrees (CR≥10) allow for good visibility from multiple directions.

The response time of 10/25 ms (Tr/Td) minimizes motion blur, delivering smooth transitions. The panel type is a-Si TFT-LCD, with an antiglare treatment, improving readability under bright lighting.

Supporting 262K/16.2M colors and 55% NTSC, the display ensures solid color reproduction. The WLED backlight has a 50,000-hour lifespan, offering energy efficiency and longevity. Operating at 3.3V, it is designed for use in environments ranging from -30°C to 80°C.
