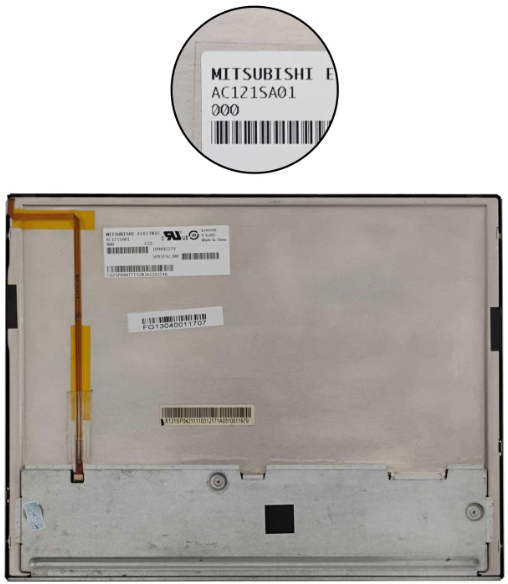

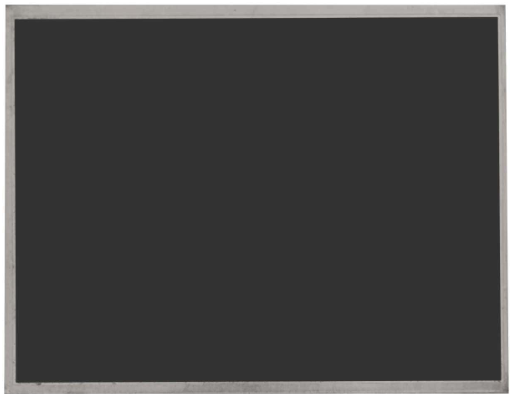

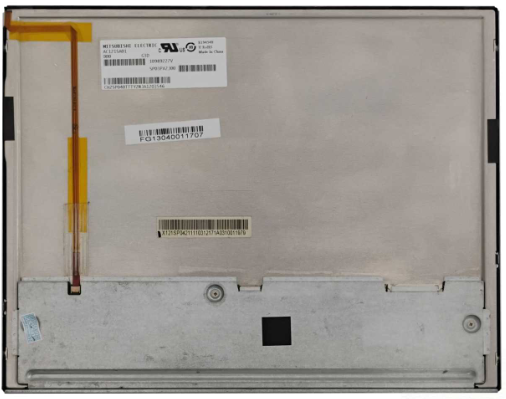

Mitsubishi AC121SA01 LCD display

The Mitsubishi AC121SA01 is a robust 12.1-inch a-Si TFT-LCD display module tailored for industrial and commercial applications requiring sharp visuals, durability, and efficient operation. It features an 800(RGB) × 600 SVGA resolution, delivering a pixel density of 82 PPI across an active area measuring 246 mm (W) × 184.5 mm (H), ensuring clear, precise images and accurate color reproduction.

Built on advanced a-Si TFT-LCD technology, the panel boasts a high brightness level of 450 cd/m² paired with a strong contrast ratio of 800:1 (typical), resulting in vivid and well-defined images, even in brightly lit settings. Its wide viewing angles of 80° horizontally (left/right) and 60°/80° vertically (up/down) at a contrast ratio ≥10 provide excellent visibility from multiple perspectives, accommodating various user positions.

The display offers fast response times of 4 ms (rise) and 12 ms (decay), minimizing motion blur and ghosting to maintain smooth image transitions, which is essential for dynamic content and interactive interfaces.

For added durability and usability, the screen is treated with an antiglare coating and a 3H hardness rating to resist scratches and reduce reflections. It operates in TN mode, Normally White, and Transmissive, which contributes to consistent color accuracy and efficient power usage.

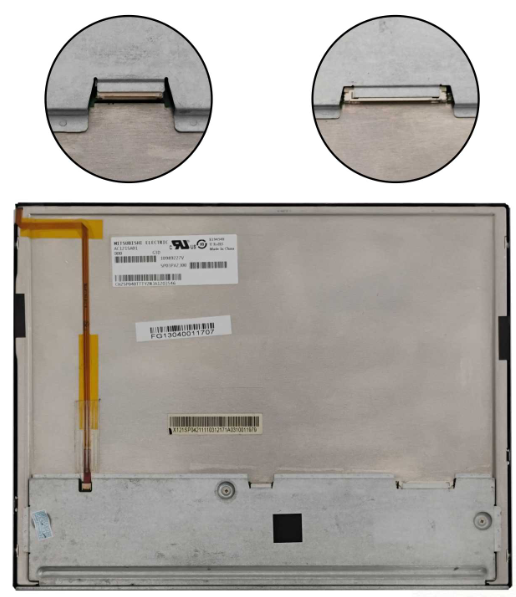

Connectivity is ensured via a 20-pin LVDS interface (single channel, 6/8-bit), facilitating stable and reliable signal transmission. The panel refreshes at 60 Hz, supporting fluid and flicker-free visuals.

Powered by a 3.3V supply, the module incorporates a WLED backlight with an integrated LED driver, offering a long lifespan of approximately 100,000 hours and enhancing power efficiency.

With a weight of 580 grams and an operating temperature range from -30°C to 80°C, the Mitsubishi AC121SA01 is engineered to withstand harsh environments and demanding conditions, making it a dependable choice for rugged industrial use.
