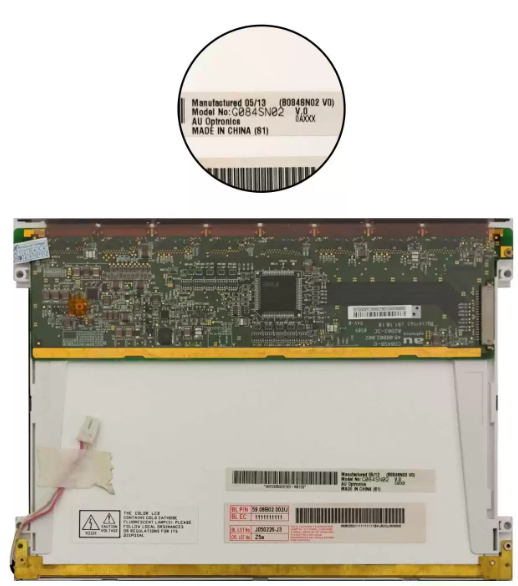

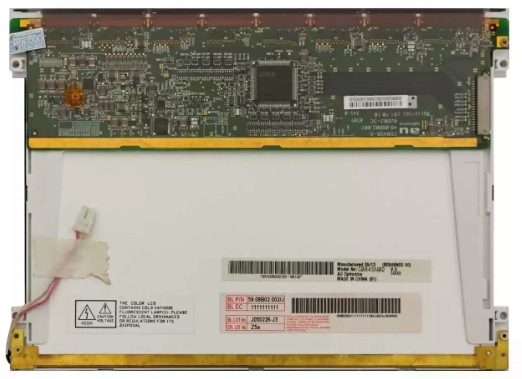

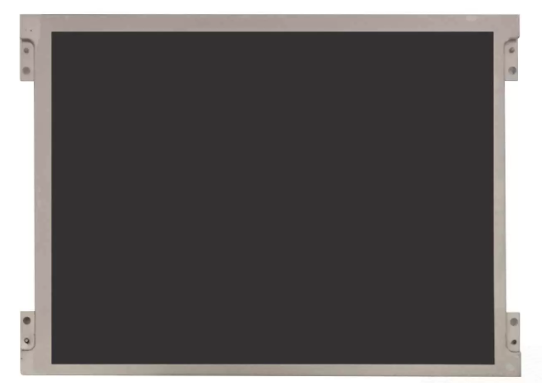

AUO G084SN02-V.0 LCD DISPLAY

The AUO G084SN02-V.0 LCD Module is designed for industrial and commercial applications, providing high performance, durability and energy efficiency. With an 800(RGB) × 600 SVGA resolution (119 PPI) and an active area of 170.4 mm (W) × 127.8 mm (H), this display delivers sharp and clear visuals suitable for a variety of applications.

Utilizing a-Si TFT-LCD technology, it features a luminance of 200 cd/m² and a 500:1 contrast ratio (TM), ensuring decent image clarity in moderate lighting conditions. The viewing angles of 65°/65° horizontally and 65°/45° vertically (CR≥10) allow for satisfactory visibility from multiple directions. Additionally, its response time of 10ms (Tr) and 25ms (Td) provides smooth motion display.

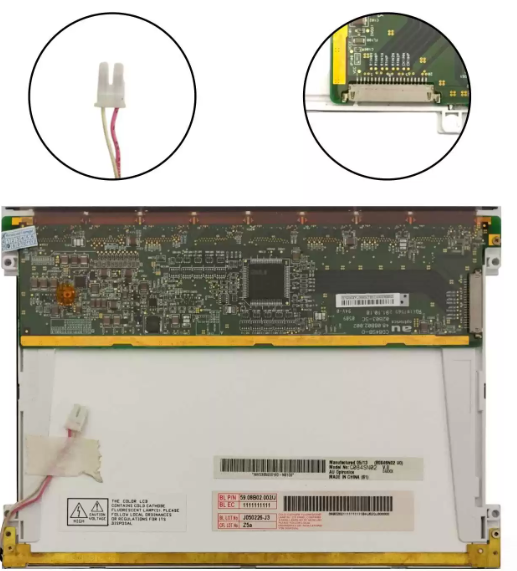

This TN-mode, Normally White, and Transmissive panel supports 262K colors at 48% NTSC, delivering adequate color accuracy for standard display needs. The LVDS (1ch, 6-bit) 20-pin connector ensures stable and efficient data transmission, while the 60Hz frame rate offers reliable refresh rates.

Powered by a 3.3V supply, the display incorporates a single CCFL backlight with a lifespan of 20K hours (without a driver). With a lightweight design of 210±10g, it can operate within temperatures ranging from 0°C to 50°C and withstand storage temperatures from -20°C to 60°C, making it suitable for diverse environments.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
