Specifications

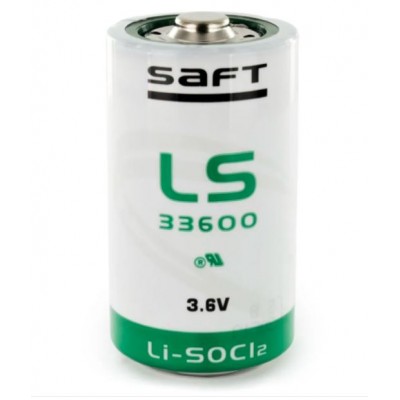

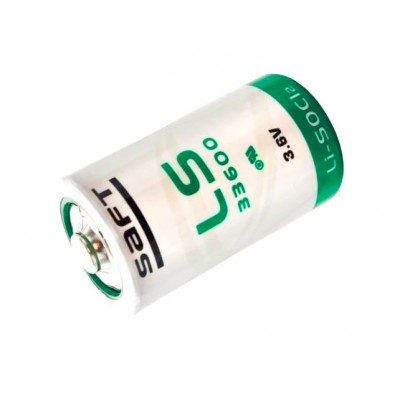

Model: LS‑33600
Chemistry: Lithium Thionyl Chloride (Li‑SOCl₂)
Nominal Voltage: 3.6 V
Capacity: 17,000 mAh (17 Ah)
Typical Weight: ~67 g
D-Cell Dimensions: 33 mm diameter × 61 mm height
Operating Temperature: –60 °C to +85 °C
Shelf Life: 10+ years at room temperature
Max Continuous Discharge Current: ~50 mA (depends on temperature and conditions)
Pulse Discharge Capability: Up to ~100 mA pulses (intermittent)
Self-discharge Rate: ~1–2% per year
Operating Pressure Tolerance: Up to 5 bar (typically rated)
