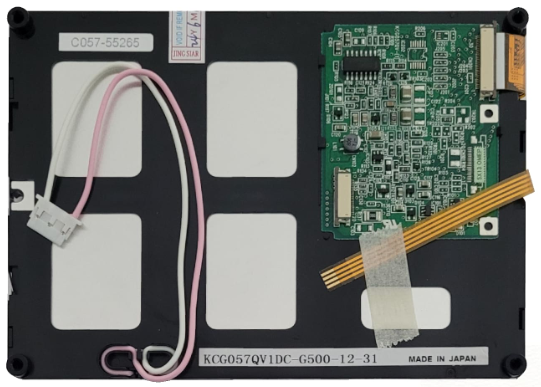

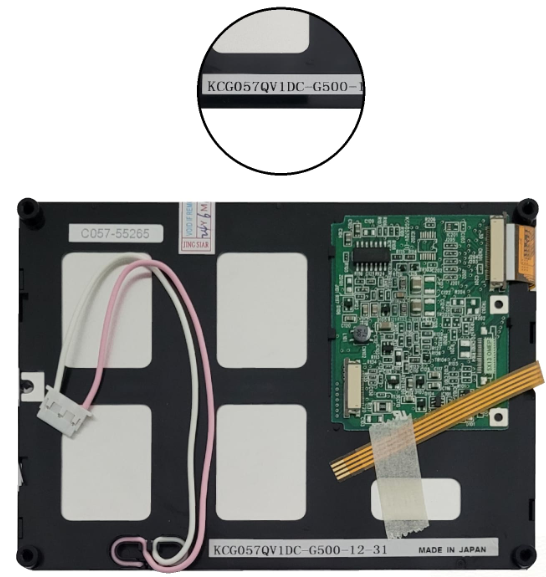

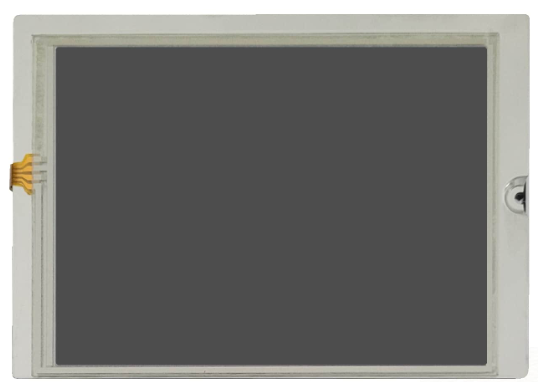

The Kyocera KCG057QV1DC-G500 is a 5.7-inch CSTN-LCD touchscreen module designed for compact industrial and embedded applications requiring color display, moderate brightness, and reliable touch input. It features a QVGA resolution of 320×240 pixels at approximately 70 PPI, offering a good balance of clarity and legibility in compact interfaces. The display’s active area measures 115.2 mm × 86.4 mm, enclosed in an outline dimension of 144 mm × 104.8 mm × 15.3 mm, ensuring easy integration in space-constrained devices.
Operating in STN, Normally Black, Transmissive mode, the display provides energy efficiency while enhancing image contrast when backlit. The display achieves 280 cd/m² luminance and a contrast ratio of 55:1, making it suitable for general indoor use. With viewing angles of 50° (left/right), 20° (up), and 35° (down) at CR≥2, the module delivers acceptable visibility across common usage orientations. Its response time of 180 ms (Tr) / 170 ms (Td) ensures smooth transitions for both static and dynamic graphical content.

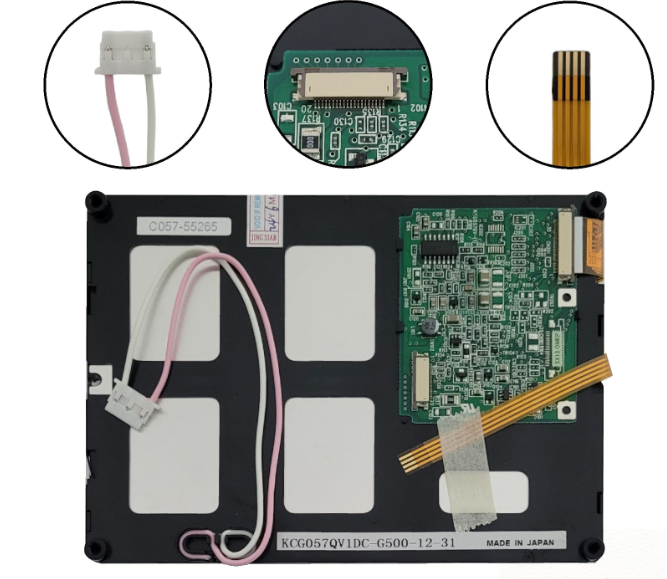

The display supports 38% NTSC color reproduction, enhancing visual performance in low-power systems. A 20-pin, 1-channel 8-bit Parallel Data interface offers standard compatibility with many embedded controllers. Its single CCFL backlight boasts a typical lifespan of 75,000 hours, supporting long-term reliability in demanding conditions.
Rated for operation between 0°C to 60°C and storage from -20°C to 60°C, this panel is built to perform consistently in a wide range of controlled industrial environments.
