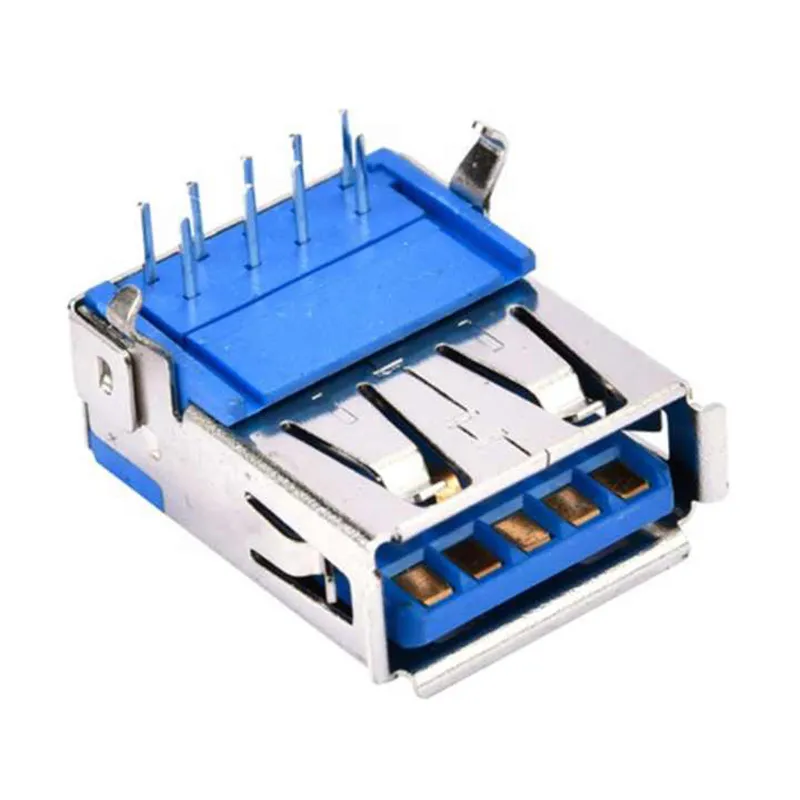

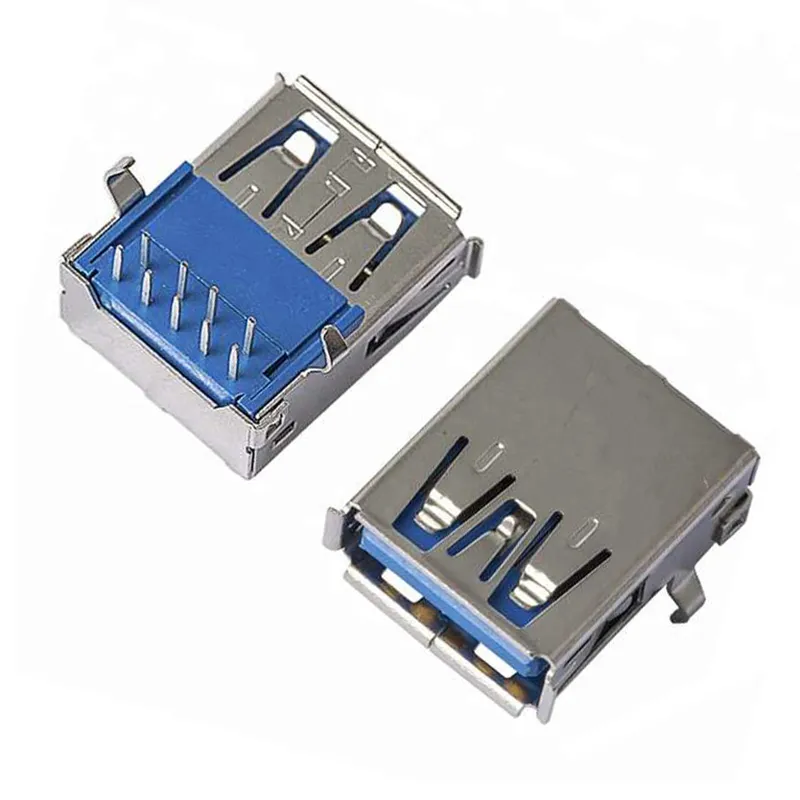

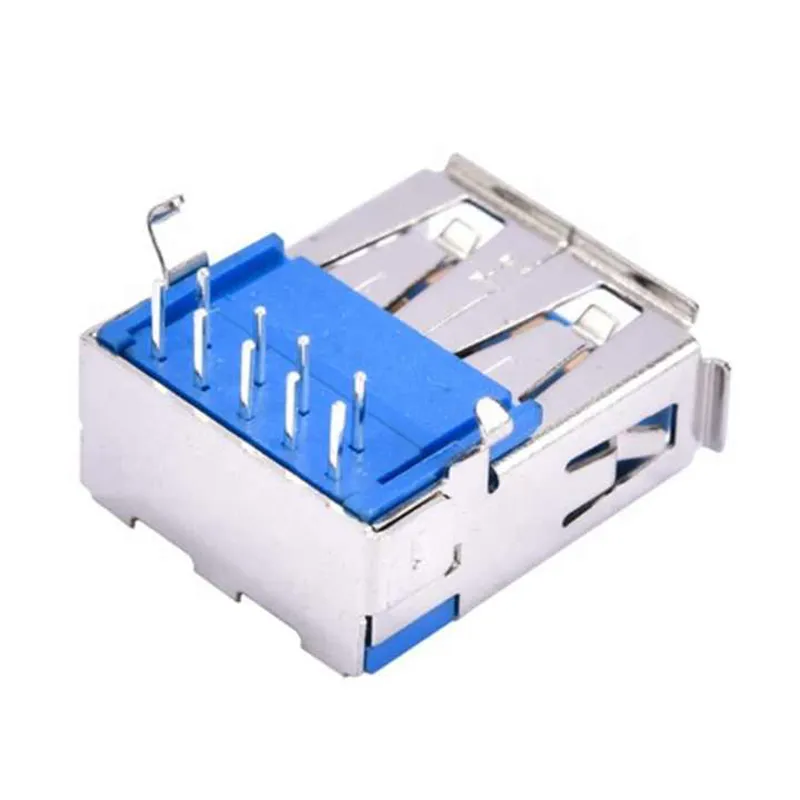

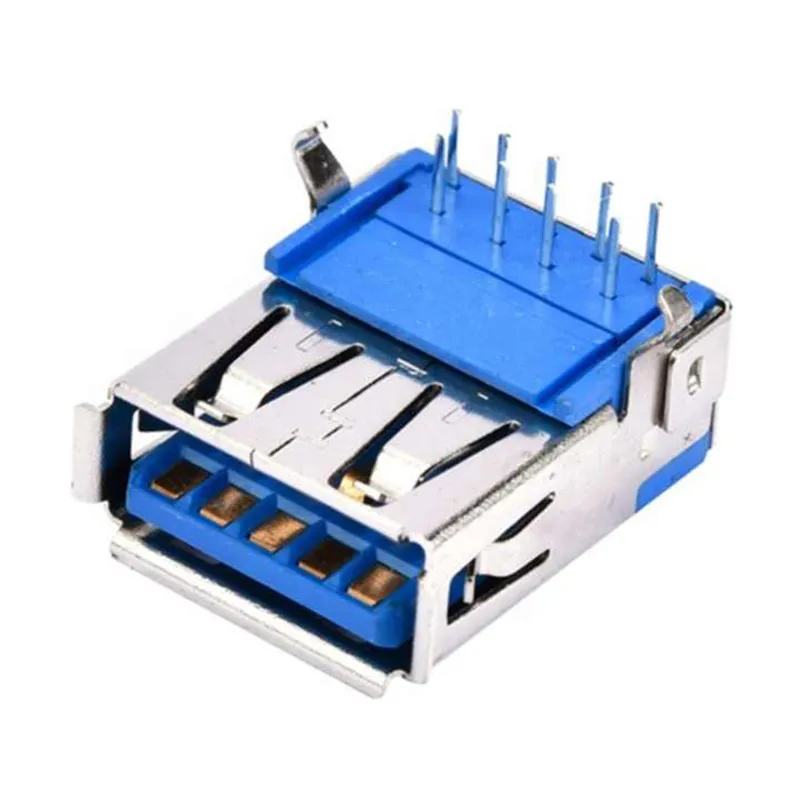

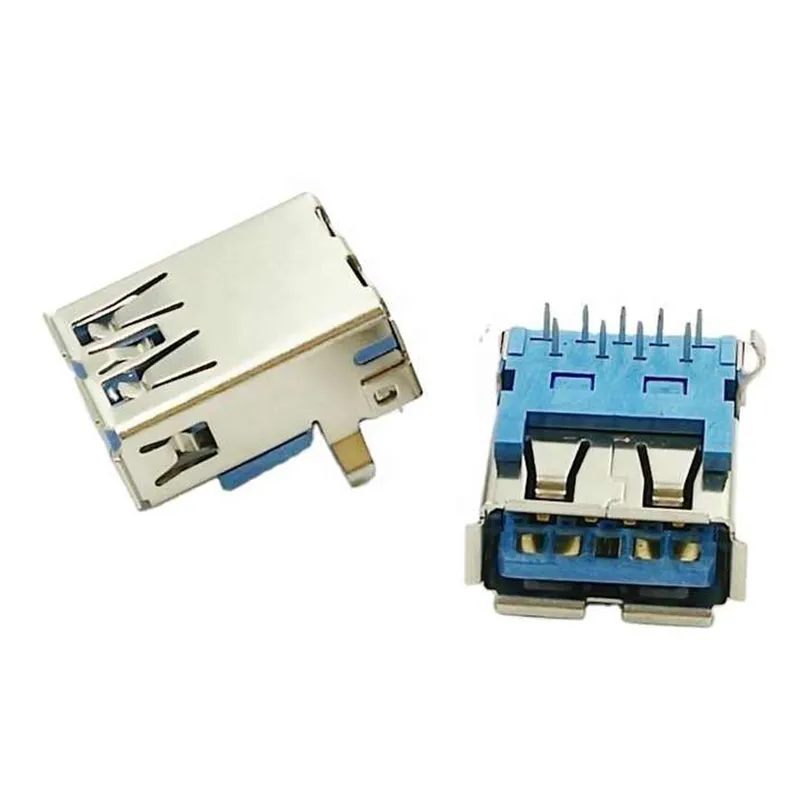

USB 3.0 Type A Female 9 pin Right Angle PCB Mount Connector
Specifications: 1. Type: USB 3.0 Type-A Female 2. Pin Count: 9 pins (including additional SuperSpeed pins) 3. Mounting Type: Through-Hole, Right-Angle (90°) 4. Rated Current: Typically up to 1.8A @ 5V 5. Data Transfer Rate: Up to 5Gbps 6. Material: Thermoplastic insulator with metal housing 7. Contact Plating: Gold over nickel 8. Operating Temperature: -40°C to +85°C 9. Durability: ≥ 1500 mating cycles 10. Applications: Development boards, PC motherboards, custom USB ports, embedded USB devices
Non-returnable
₹13.00 ₹25.00
Available Offer
Share :
Product Details
This USB 3.0 Type-A Female Connector is designed for PCB mount applications and supports right-angle mounting. With a 9-pin configuration, it is ideal for high-speed data transmission (up to 5Gbps) and is compatible with both USB 3.0 and backward USB 2.0/1.1 standards. Commonly used in embedded systems, development boards, and custom USB interfaces, it offers secure and stable connection for USB peripherals. The right-angle form factor allows low-profile and space-saving designs in compact electronics.
🔹 Features: • USB 3.0 standard with 9 pins for SuperSpeed data transfer • Right-angle (horizontal) PCB mount for compact integration • Supports up to 5Gbps data rate • Gold-plated contacts for better conductivity and durability • Backward compatible with USB 2.0 and 1.1 devices • Through-hole pins for secure soldering on PCB • Durable metal shielding for EMI/RFI protection
