Specifications:
1. Rated Voltage: 12V DC
2. Speed: 60 RPM (±10%)
3. Torque: 15 kg·cm (approx.)
4. Motor Type: Brushed DC
5. Gearbox Type: Spur Gear
6. Shaft Type: Side Shaft (D-shaped)
7. Shaft Diameter: ~6mm
Non-returnable
₹650.00 ₹800.00
Specifications:
1. Rated Voltage: 12V DC
2. Speed: 60 RPM (±10%)
3. Torque: 15 kg·cm (approx.)
4. Motor Type: Brushed DC
5. Gearbox Type: Spur Gear
6. Shaft Type: Side Shaft (D-shaped)
7. Shaft Diameter: ~6mm

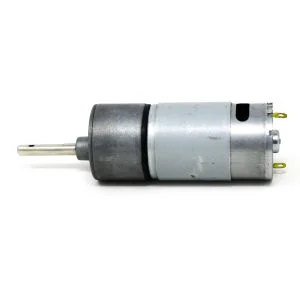

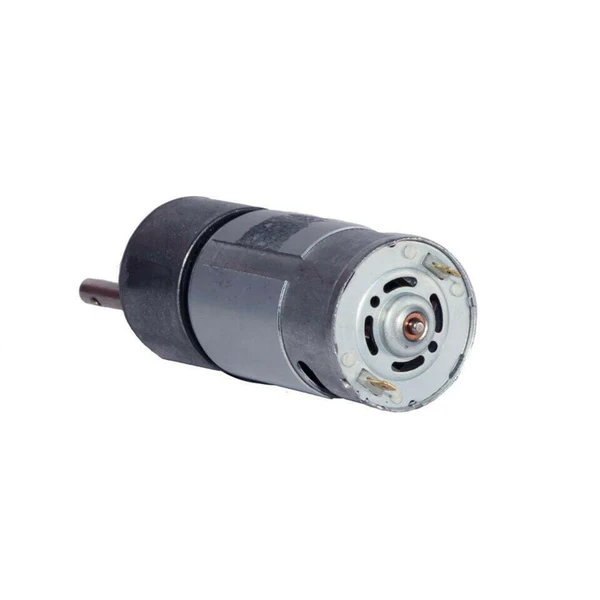

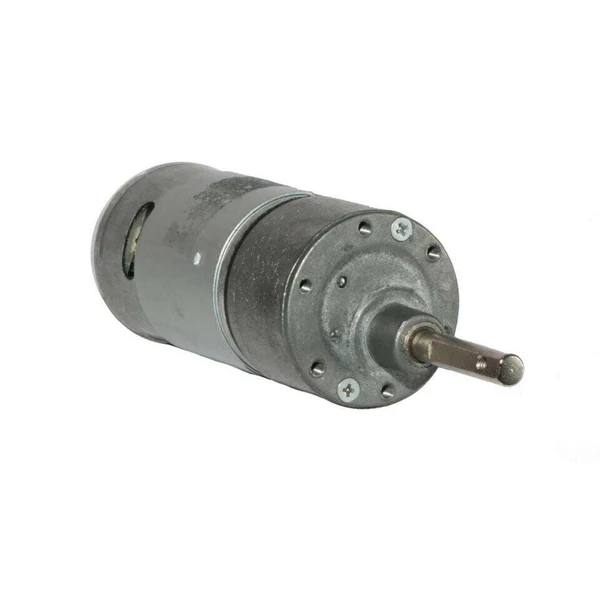

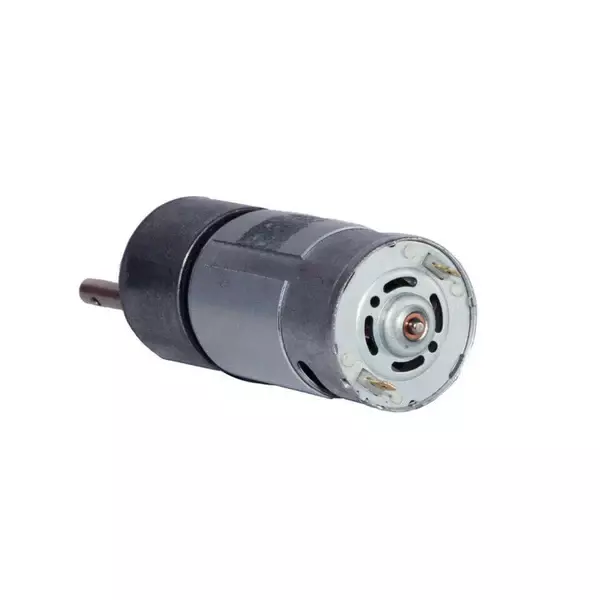

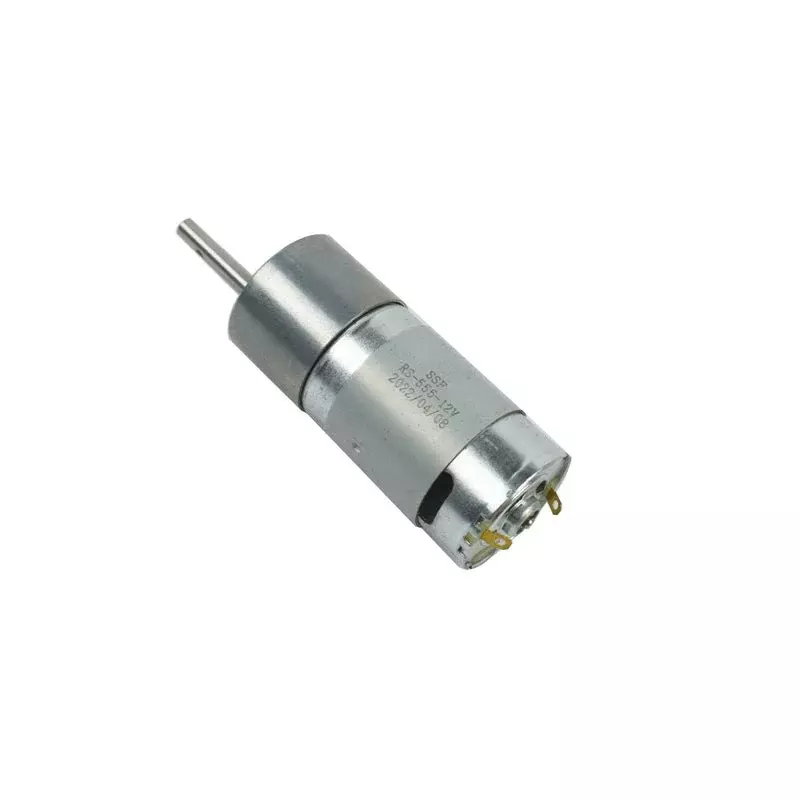

The 12V DC RS-37-555 side shaft geared motor is a high-torque, low-speed DC motor ideal for various robotics and automation applications. Its side shaft design makes it suitable for compact installations, and the all-metal gearbox ensures long operational life and durability. With a 60 RPM speed and 15 kg·cm torque at 12V, it's well-suited for driving wheels, belts, or lifting arms in DIY and industrial projects.
Features:
- Side shaft geared motor with compact design
- All-metal gears for high durability
- Supports bidirectional rotation (CW/CCW)
- Compatible with 6V to 18V power supplies (12V nominal)
- Ideal for robotic platforms, conveyor systems, and small automated machines
