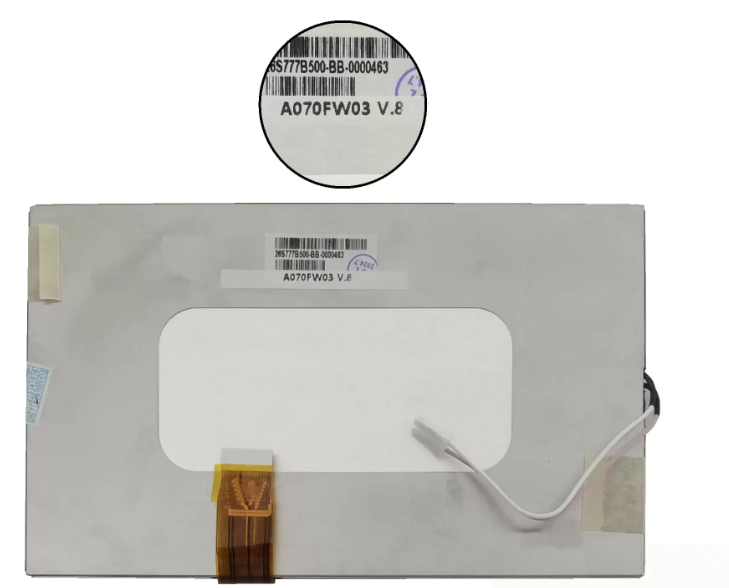

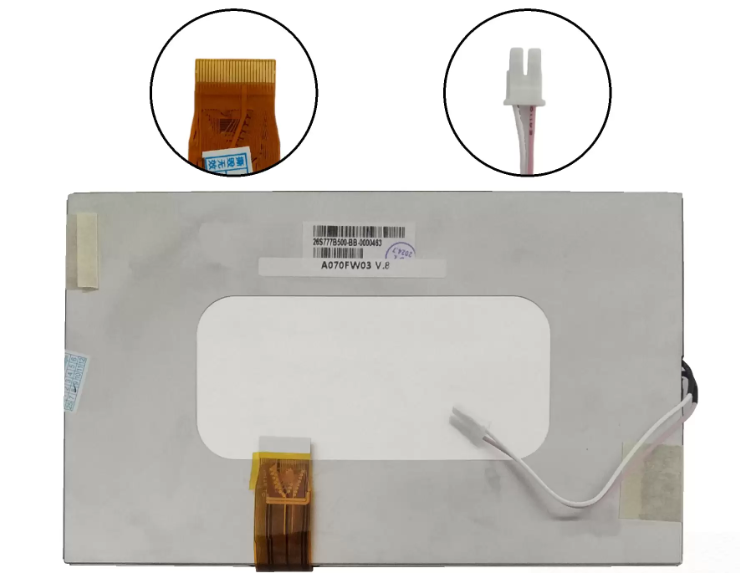

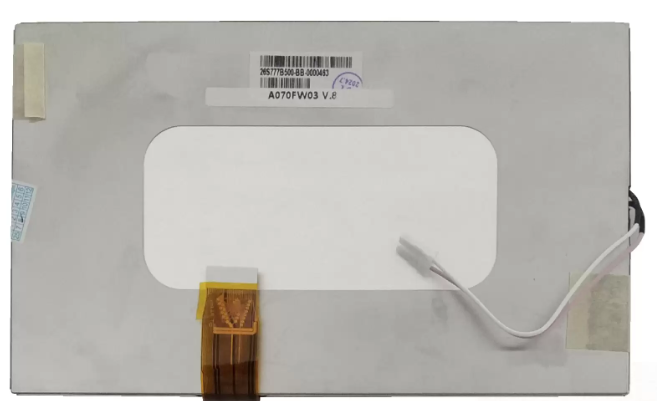

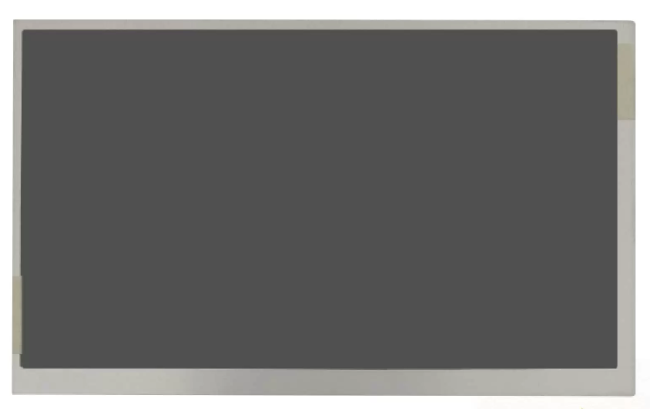

AUO A070FW03-V.8 LCD Module

AUO A070FW03-V.8 LCD Module

The AUO A070FW03-V.8 LCD Module is a 7.0" a-Si TFT-LCD display offers a resolution of 480×234 pixels, providing a pixel density of 76 PPI for clear, vibrant visuals. With an active area of 154.08 mm (W) x 86.58 mm (H) and outline dimensions of 164.9 mm (W) x 100 mm (H) x 6 mm (D), it strikes a balance between compact size and effective screen real estate, ideal for portable or embedded applications.

With a luminance of 300 cd/m², the display is bright enough for most indoor environments. The contrast ratio of 400:1 (Typ.) ensures adequate differentiation between light and dark areas of the display. The viewing angle of 65°/65°/40°/65° (Typ.) enables reasonably wide viewing without noticeable color degradation or loss of contrast.

The response time is 12/18 ms (Typ.), providing good performance for applications requiring quick image transitions. This display is equipped with an RGB Vertical Stripe treatment, offering enhanced color representation, and operates in TN, Normally White, Transmissive mode for better sunlight readability.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
