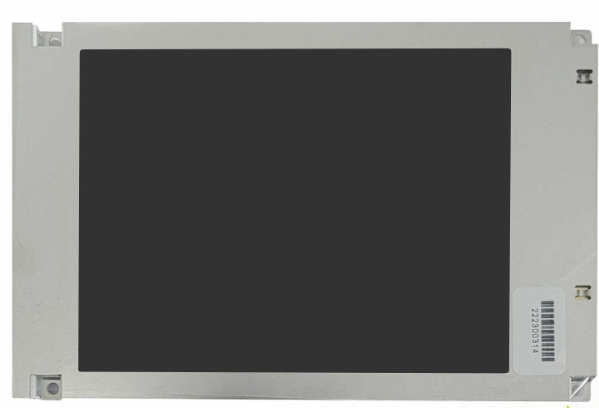

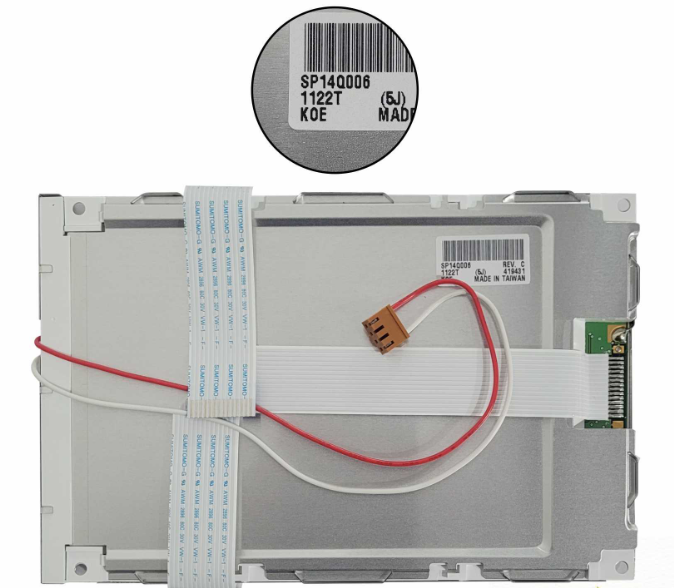

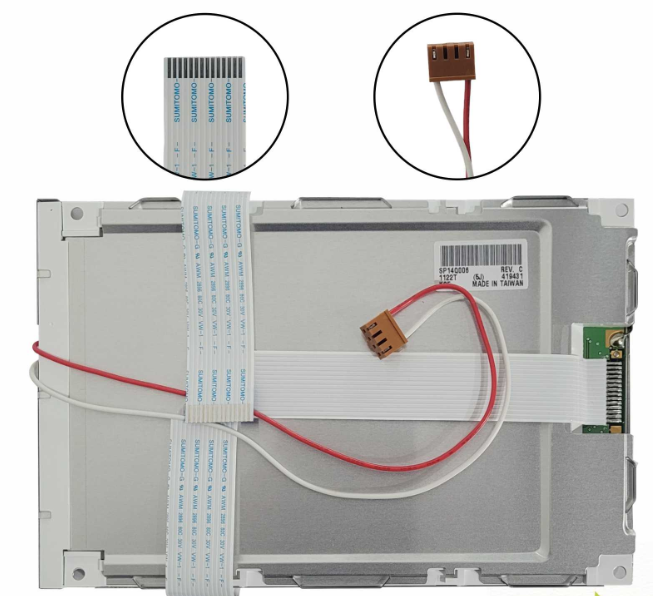

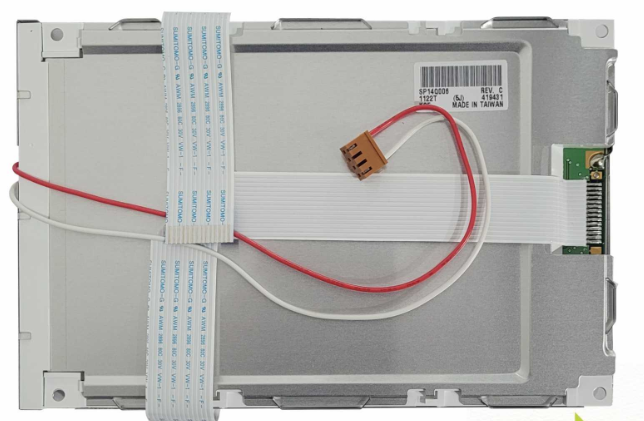

The Hitachi SP14Q006 is a 5.1-inch monochrome FSTN (Film Super Twisted Nematic) LCD display module with a resolution of 240×128 pixels, engineered for rugged industrial, instrumentation, and embedded applications. With CCFL backlighting, this display provides enhanced readability in various ambient lighting conditions. It’s a durable solution widely used in control systems, HMIs, medical equipment, and legacy embedded systems.
Mechanical Specifications:
Module Dimensions: Approx. 160 mm (W) × 109 mm (H) × ~14 mm (D)
Active Area: ~122 mm × 64 mm
Weight: Approximately 200 grams
Mounting: Screw holes provided for secure panel installation
Electrical & Environmental Characteristics:
Logic Voltage: Typically 5V DC
Backlight Supply: Requires high-voltage AC inverter for CCFL operation
Operating Temperature: –10 °C to +60 °C
Storage Temperature: –20 °C to +70 °C
Touchscreen: Not included in this variant
RoHS Status: May not be RoHS compliant (legacy part)
Applications:
Industrial human-machine interfaces (HMIs)
Process control systems
Instrumentation panels
Medical diagnostic or monitoring devices
Legacy embedded systems requiring robust graphic displays
