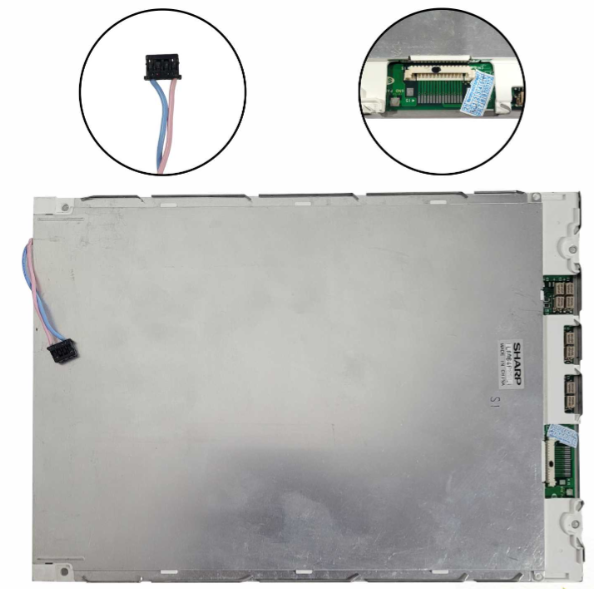

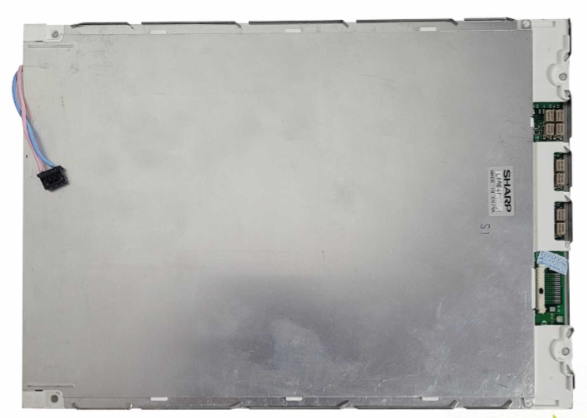

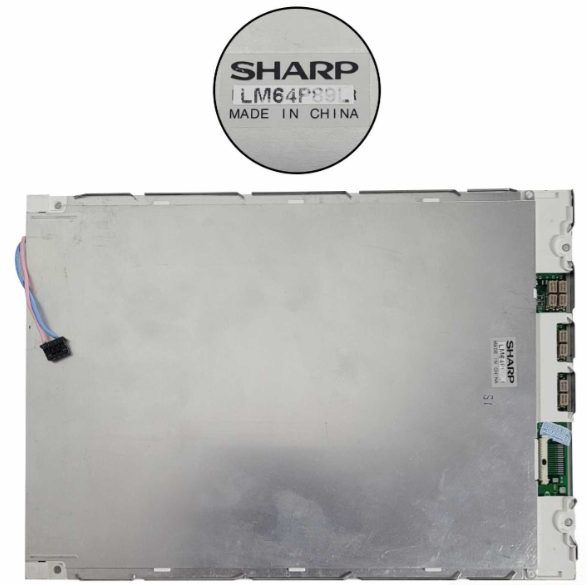

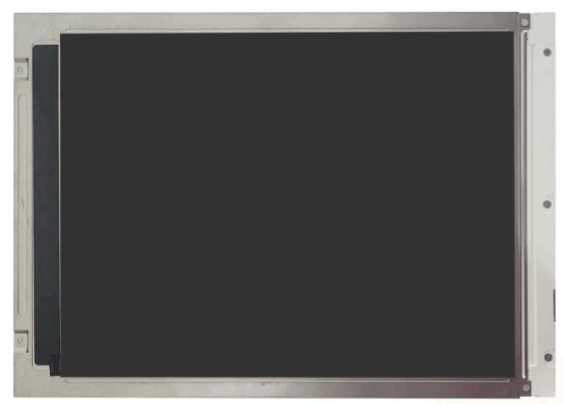

The Sharp LM64P89L is a 9.4-inch monochrome Super Twisted Nematic (STN) LCD module tailored for industrial, professional, and embedded control systems where long-term reliability and basic graphical performance are critical. With a VGA resolution of 640×480 pixels and a pixel density of 76 PPI, it provides crisp, clear data visualization suitable for diagnostics, monitoring, and legacy system interfacing.
This panel features a transmissive STN architecture with a typical contrast ratio of 18:1 (TM), ensuring readability in standard indoor conditions. While the contrast is modest compared to TFT technologies, it’s well-suited for text-heavy, non-graphically intensive interfaces.
Equipped with a single CCFL backlight system (driver not included), the module supports stable operation for long periods, ideal for 24/7 systems. It lacks touchscreen functionality, aligning it with applications where tactile input is not required.
Key physical specifications include:
Active Area: ~192 mm × 144 mm (estimated based on resolution and PPI)
Display Mode: Monochrome STN, transmissive, normally white
Brightness: Not specified
Contrast Ratio: 18:1 (typ.)
Viewing Mode: TN (Twisted Nematic), typically from the top
Frame Rate: 75 Hz (assumed standard)
Input Interface: 8-bit parallel data via 20-pin connector
Power Supply Voltage: 3.3V (typical)
Backlight: 1 × CCFL (no driver included)
Environmental Ratings:
Operating Temperature: 0°C to 45°C
Storage Temperature: -25°C to 60°C
Applications:
Industrial controllers
Measurement and monitoring equipment
Legacy embedded systems
Medical instrumentation (non-critical)
