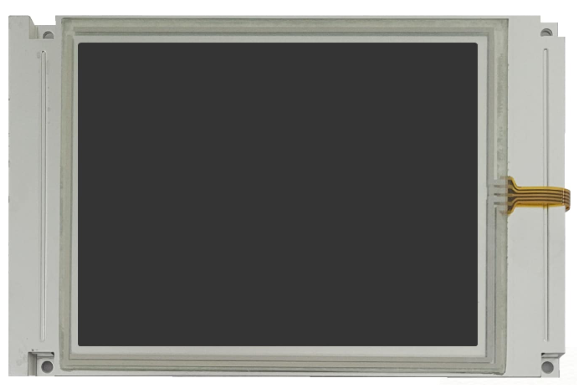

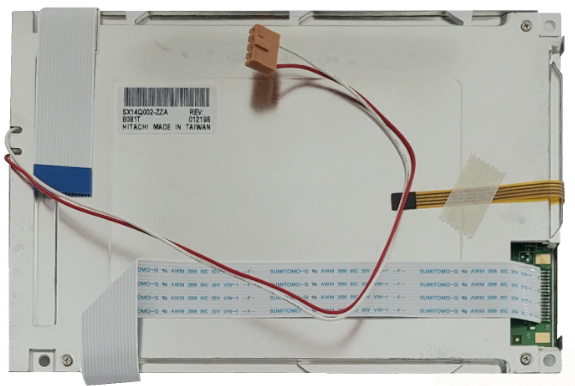

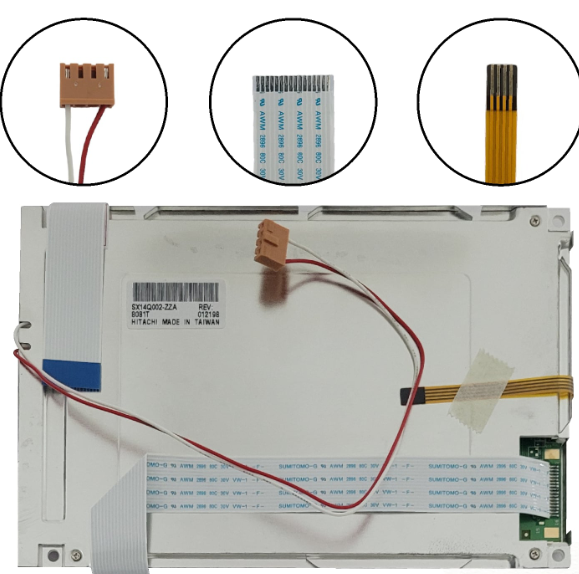

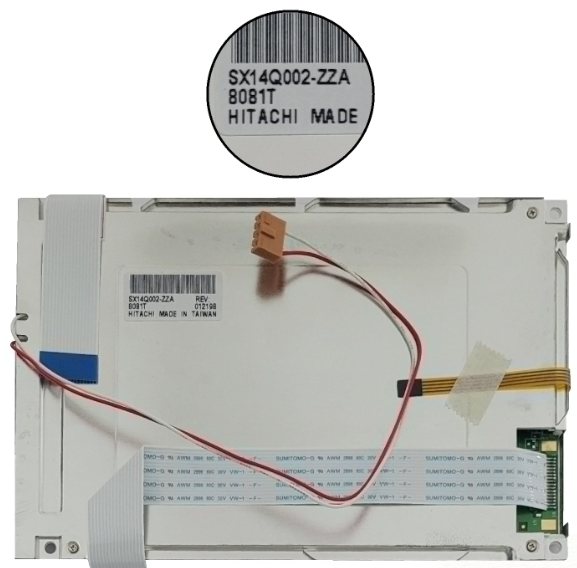

The Hitachi SX14Q002‑ZZA is a 5.1-inch monochrome FSTN (Film Super Twisted Nematic) LCD module designed for industrial and embedded system interfaces. It provides a 240×128 pixel resolution, ensuring clear, crisp character and graphic display. The module is equipped with CCFL backlighting and an integrated 4-wire resistive touchscreen, enabling both high visibility and interactive functionality in various operational conditions.
Mechanical Specifications:
Module Dimensions: Approx. 160 mm (W) × 109 mm (H) × 14 mm (D)
Active Area: ~122 mm × 64 mm
Weight: Approx. 200 grams
Mounting: Bezel-ready with screw holes for panel mounting
Electrical & Environmental Characteristics:
Supply Voltage: 5V logic (typical)
Backlight Supply: High-voltage AC for CCFL (inverter required)
Touch Panel Voltage: ~5V DC input for touch detection
Operating Temperature: –10 °C to +60 °C
Storage Temperature: –20 °C to +70 °C
RoHS Compliance: May not be compliant (legacy component)
Applications:
Human-Machine Interfaces (HMIs)
Medical diagnostic equipment
Industrial automation terminals
Control panels and monitoring systems
Portable and fixed embedded systems requiring reliable monochrome display with touch input
