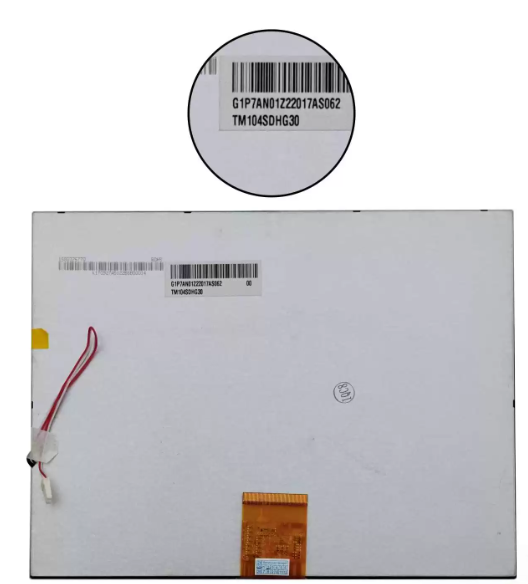

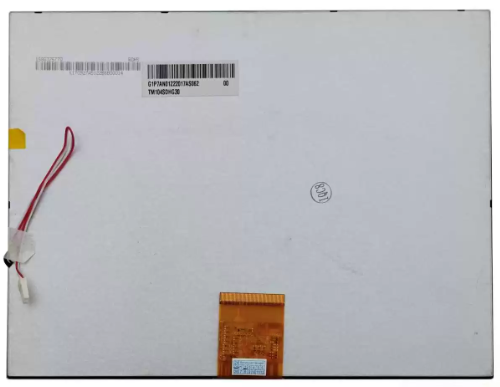

Tianma TM104SDHG30 LCD display

The Tianma TM104SDHG30 LCD Module is a 10.4-inch a-Si TFT-LCD panel offering a balance of performance and durability, ideal for industrial and professional applications. It features an 800(RGB)×600 resolution (SVGA), delivering crisp images at a 96 PPI pixel density. The active display area measures 211.2(W)×158.4(H) mm, fitted within a slim 228.4(W)×175.4(H)×6.5(D) mm frame.

With a brightness of 350 cd/m² and a contrast ratio of 500:1 (typical), it ensures clear and vibrant visuals even in moderately lit environments. The panel supports a viewing angle of 70/70/60/70 degrees (CR≥10), maintaining color and image consistency across a wide range of perspectives. A quick response time of 10/15 ms (Tr/Td) helps minimize motion blur.

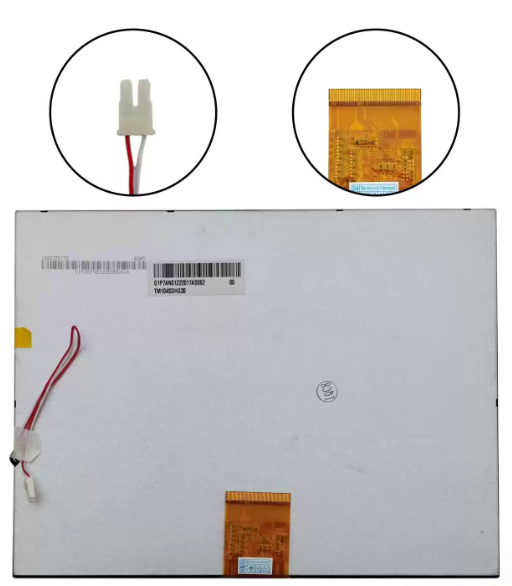

Designed with TN (Twisted Nematic) technology, it operates in a normally white, transmissive mode, and is treated with an antiglare, hard coating (3H) for enhanced durability and reduced glare. It supports 262K/16.7M colors with 50% NTSC color gamut coverage. Connectivity is enabled through a TTL interface (60-pin FPC connector) at a 60Hz refresh rate.

Powering the panel requires 3.3V/11V/25V/-7V, and it is equipped with a 3S12P WLED backlight system rated for 30,000 hours of life, though it does not include an integrated driver.
