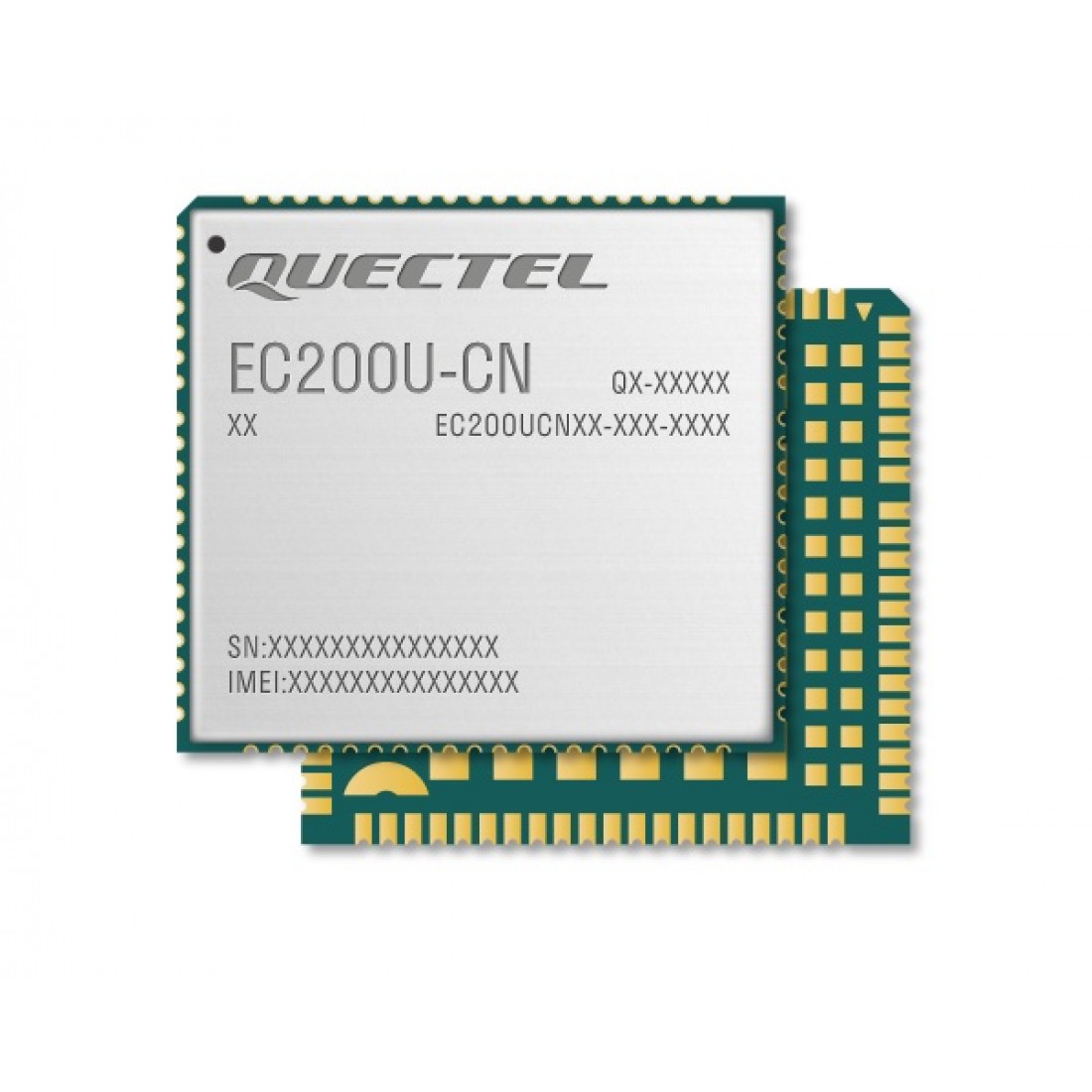

RF AND WIRELESS MODULEQUECTEL MODULES Quectel EC200U-CN LTE Cat-1 4G LTE QuecOpen Module for M2M, IoT Applications
Quectel EC200U-CN LTE Cat-1 4G LTE QuecOpen Module for M2M, IoT Applications

Quectel EC200U-CN LTE Cat-1 4G LTE QuecOpen Module for M2M, IoT Applications

Specifications:

  • Cellular Bands LTE: B1/B3/B5/B8

  • Data Rates: LTE DL up to 10 Mbps, UL up to 5 Mbps

  • Fallback Protocols: UMTS/HSPA+, GSM/GPRS/EDGE supported

  • GNSS: GPS + GLONASS

  • Security Features: SIM authentication (SIM, eSIM, virtual SIM)

  • Interfaces:

    • USB 2.0 High-Speed

    • UART for data and AT commands

    • PCM for audio

    • Up to 8 GPIOs

  • Power Input: 3.0–4.2 V (typical 3.8 V)

  • Current Consumption:

    • Idle: ~10 mA

    • Transmit: ~300 mA (peak)

  • Operating Temperature: -40 °C to +85 °C

  • Form Factor: LGA or M.2 variant (approx. 30 × 30 mm)

  • Weight: ~12 g

Non-returnable
₹1,200.00 ₹1,500.00
Product Details

The Quectel EC200U-CN is an LTE Cat‑1 modem module designed for reliable, low-bandwidth 4G connectivity aimed at M2M and IoT applications. It leverages QuecOpen open-source driver support and provides wide cellular compatibility, built-in GNSS, and robust network performance, making it suitable for devices like smart meters, trackers, and industrial gateways in the Chinese market.


Features:

  • LTE Cat‑1 support with balanced speed and low power usage

  • QuecOpen SDK for easy integration and firmware upgrades

  • Built-in GNSS (GPS + GLONASS) for location services

  • Global cellular compatibility, optimized for China deployments

  • Multiple interfaces: USB 2.0, UART, PCM audio, GPIOs

  • Embedded SIM (eSIM) support for flexible network provisioning

  • Power-saving modes for energy-efficient operation

  • Industrial-grade reliability with -40 °C to +85 °C operating range
